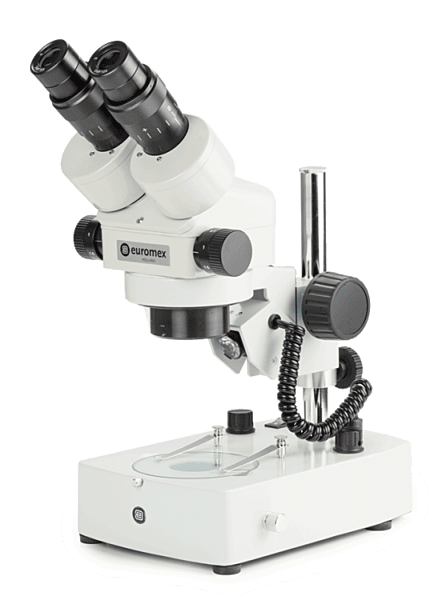

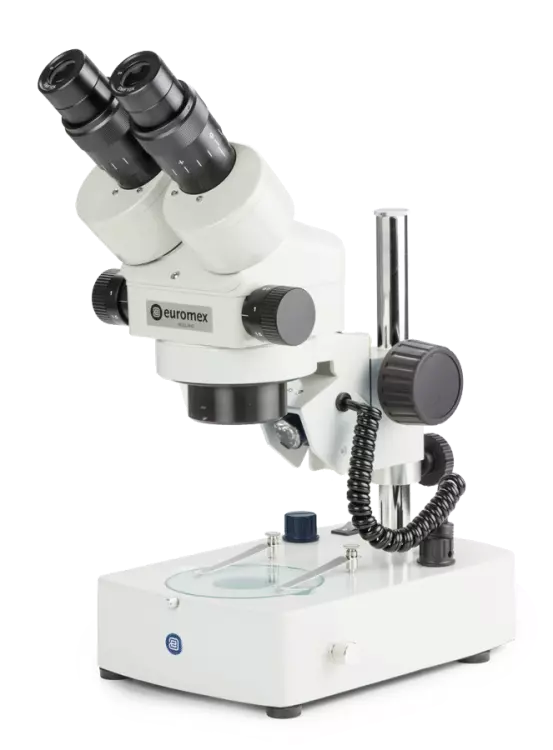

Z series
These versatile high-end stereo microscopes are highly appreciated by the professionals of Life Science research and industry because of the excellent optical and mechanical characteristics of this series
Indispensable for a reliable quality inspection of processes in production or of industrial products, these microscopes are also extensively used in research laboratories. Certain components are also integrated in machines. Depending on the application, the microscopes can be configured with fix or variable magnification or zoom heads together with other components such as eyepieces, additional lenses, stands, stages, filters, etc
ZOOM STEREO HEADS
* When the trinocular tube is engaged, the image is still available in both other tubes.
All zoom stereo heads are supplied with SWF 10x/23 mm eyepieces without eyecups
STANDS
1) Systems can be equipped with a large number of optional lighting systems, for example ring light LE.1973 and LE.1974 or cold light source LE.5211-LED
* Length with the 2 arms totally extended
- Modular system
- Binocular and trinocular models
- Standard HWF10x/23 mm eyepieces
- Stereo zoom heads with fix 45°, 60° or 90° inclined tubes
- Zoom magnification objectives
- Superior resolution optics
EYEPIECES
Pair of SWF 10x/23 mm eyepieces
HEAD
• Binocular or trinocular heads with 45°, 60° or 90° inclined tubes
• Diopter ± 6° adjustment on both tubes for Z series.
• Interpupillary distance from 55 to 75 mm
ZOOM MAGNIFICATION OBJECTIVES
• Zoom objective with variable 0.4x to 2.5x magnifications
• Zoom objective with variable 0.7x to 4.5x magnifications
• Zoom objective with variable 1x to 7x magnifications
Zoom objectives with click stops are also available on request.
All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated
STANDS WITHOUT ILLUMINATION
ST.1710
Pillar stand with ST.1790 head holder
Pillar height 210 mm, diameter ø 20 mm
Dimensions 250 (h) x 150 (w)x 240 mm (d)
ST.1718
Pillar ergonomically flat stand with ST.1790 head holder
Pillar height 213 mm, diameter ø 20 mm
Dimensions 258 (h) x 330 (w) x 306 mm (d)
ST.1770
Large pillar wooden stand with ST.1790 head holder
Pillar height 360 mm, diameter ø 29mm
Dimensions 400 (h) x 580 (w) x 500 mm (d)
Suitable for SMD inspection
STANDS WITH ILLUMINATION
ST.1735 Rack & pinion stand with 3 W LED illumination and rotatable double-sided coated mirror (one frosted and one aluminium coated side). Especially developed for observation of transparent object. Very suitable equine or porcine embryo collection and transfer. Adjustable light intensity. Supplied with external power supply. Dimensions: 240 x 160 x 290 mm (D x W x H), min/max height 240-290 mm
BOOM STANDS
ST.1720 Articulated one arm boom stand with a 270 x 270 mm base, 610 mm and ø 29mm pillar, with orientable stereo head holder ST.1794. Vertical post 780 mm. Weight 19.5 kg
65.980 / 65.983 Articulated one arm stand to be mounted on a table with 85 mm diameter head holder. Depth positioning of stereo head between 33 and 100 cm. Working distance between 0 and maximum 295 mm
HEAD HOLDERS
ST. 1790 Head holder with coarse adjustment*
ST. 1796 Head holder with coarse and fine adjustment*
ST. 1792 Head holder with coarse adjustment and opening for one fiber light guide*
ST. 1794 Orientable head holder with coarse adjustment and opening for one fiber light guide**
ST. 1798 Orientable head holder with coarse and fine adjustment and opening for one fiber light guide**
* Not suitable for ST.1720 and 65.980/65.983
** Suitable for ST.1720
All head holders have an internal diameter of 84 mm and a friction adjustment
STAGE
AE.1950 Large sliding X-Y stage, 350 x 270 mm, translation by hand
FOCUSING
• The head holders ST.1796 and ST.1798 are also equipped with a fine focusing adjustment
PACKAGE CONTENT
• Supplied with power cord, dust cover, a spare fuse and user manual.
• All packed in a polystyrene box
