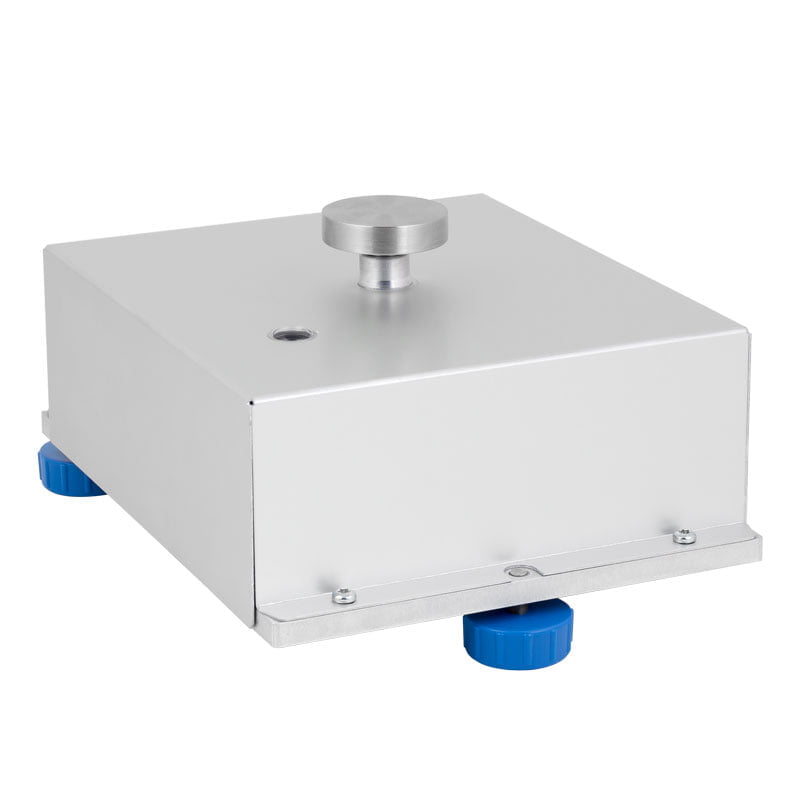

MAS 220 Weighing Module
Maximum capacity [Max]: 220g
Readability [d]: 0.1 mg
Product Details
Specifications
MAS, the electromagnetic modules of high resolution are devices designed to be integrated into weighing systems of the customer. Their compact design and in-built electronics stand for significant adaptation possibilities which guarantees that customer demands are met.
The measurements can be carried out using the weighing pan or an under-pan weighing system – solution requiring the load to be suspended beneath the module. In order to prevent negative influence of the ambient conditions onto the weighing result, it is recommended to install the module inside the customer's device (e.g. in a draft shield).
The MAS module comes standard with a dedicated power supply.
Features:
USB type B interface enables connection of RPanel BOX, i.e. device allowing control of the module in Wi-Fi® and Ethernet networks via web browser or Android app (tablet-intended program: https://play.google.com/store/apps/details?id=com.RPanelBOX.Android&hl=en).
Dedicated freeware, the R Panel, has been designed to enable control of the module via a computer. It provides access to all the keys and functions available directly from the operation panel, e.g. taring, zeroing, setup, etc. An innovative algorithm for automatic search of electromagnetic weighing modules is a guarantee for a remarkable ease of connection of a module to a computer.
With R Panel software, the complete functionality of R series balances is available via PC .
R Panel functionality has been implemented in RLab program as one of its numerous functions.
Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
The measurements can be carried out using the weighing pan or an under-pan weighing system – solution requiring the load to be suspended beneath the module. In order to prevent negative influence of the ambient conditions onto the weighing result, it is recommended to install the module inside the customer's device (e.g. in a draft shield).
The MAS module comes standard with a dedicated power supply.
Features:
- Brand new design of the electromagnetic mechanism housed in an aluminium enclosure,
- Readability of 0.1 mg,
- Overload protection,
- Ease of adaptation to the required storage space,
- Internal adjustment,
- Various options of hardware configuration.
USB type B interface enables connection of RPanel BOX, i.e. device allowing control of the module in Wi-Fi® and Ethernet networks via web browser or Android app (tablet-intended program: https://play.google.com/store/apps/details?id=com.RPanelBOX.Android&hl=en).
Dedicated freeware, the R Panel, has been designed to enable control of the module via a computer. It provides access to all the keys and functions available directly from the operation panel, e.g. taring, zeroing, setup, etc. An innovative algorithm for automatic search of electromagnetic weighing modules is a guarantee for a remarkable ease of connection of a module to a computer.
With R Panel software, the complete functionality of R series balances is available via PC .
R Panel functionality has been implemented in RLab program as one of its numerous functions.
Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
Balance
- Maximum capacity [Max]220 g
- Minimum load10 mg
- Readability [d]0.1 mg
- Tare range-220 g
- Linearity±0.2 mg
- Stabilization time3.5 s
- Adjustmentinternal (automatic)
- Weighing pan dimensionsø42 mm
- Packaging dimensions515×340×295 mm
- Net weight3 kg
- Communication interfaceRS232, USB-B
- Power supply100 – 240 V AC 50/60 Hz
- Operating temperature+10 — +40 °C
- Relative humidity40% — 80%
- Device dimensions175×236×105 mm
- Preload range22 g
