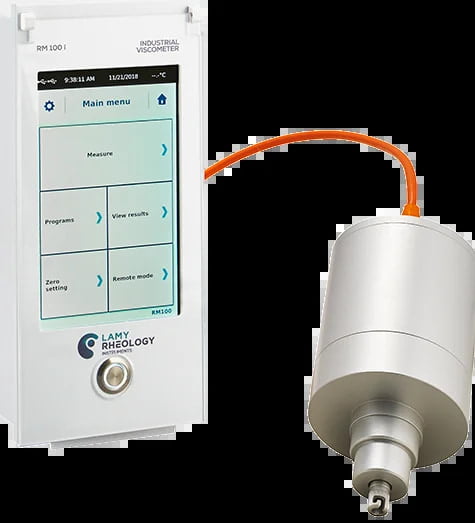

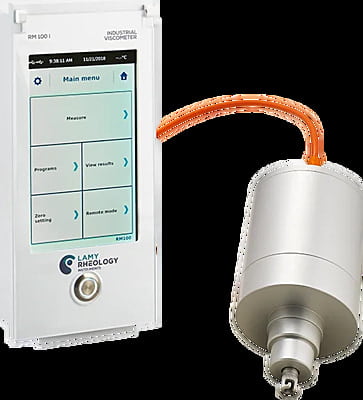

VISCOMETER RM 100 i
0.00SAR
Product Details
Specifications
The RM100 i is perfectly suited for so-called immersion use, installing it over a tank or on a support for a measurement in a pot. Only the measuring head is above the product, the electronic box can be installed more than 17 meters in a control cabinet with its 4-20mA output.
+ Measure on large containers.
+ Distance 2 m (up to 17m in option) between measuring head and control box.
+ 4-20 mA output for external control.
+ Programming and saving methods.
+ 1 point and multistep methods.
+ Display viscosity limits according spindle/speed.
+ Compatible printer and RheoTex software.
+ Functions LIMS and QC limits.
viscometer
- Type of instrument :Rotating springless viscometer with 7’’ Touch screen
- Rotation speeds :Unlimited number of speeds between 0.3 and 1500 rpm
- Torque range :De 0,05 à 30 mNm
- Accuracy :'+/- 1 % of the full scale
- Repeatability :+/- 0,2 %
- Display :Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque (%-mNm) - Shear stress - Time –Temperature
- Supply voltage :90-240 VAC 50/60 Hz
- PC connections :RS232 Port, USB and Ethernet
- Printer connection :USB Host Port - Compatible PCL/5
