LAMY RHEOLOGY

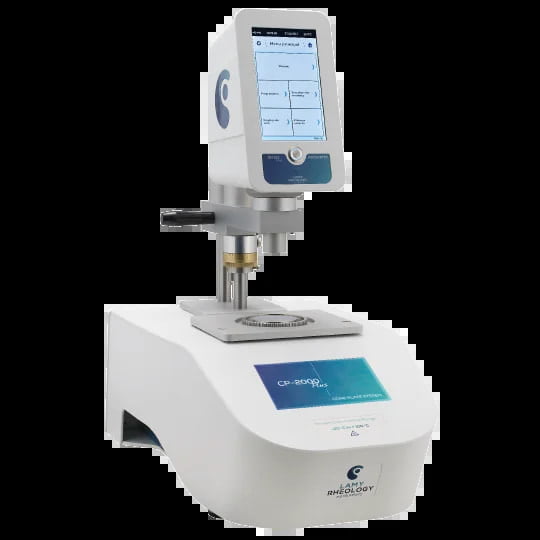

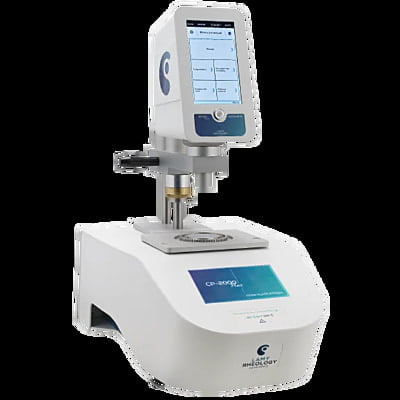

VISCOMETER CONE-PLATE RM 100 CP-2000 PLUS
SKU - N170000
Share:
Product Details
Cone and plate measuring systems are
adapted for samples in limited quantities and
difficult to clean. With maximum shear rate up
to 20,000 s-1, the RM 100 CP-2000 PLUS will fit
all your applications.
+ New tool for gap setting.
+ High shear rate (up to 20000 s-1).
+ Removable lower plate.
+ Quick attachment with AC265 coupling.
+ 1 point and multistep method.
+ Data analysis by regression.
+ Compatible printer and RheoTex software.
+ Display viscosity limits according spindle/speed.
+ Functions LIMS and QC limits.
Specifications
- Type of instrument :Cone-plate rotating springless viscometer with 7’’ Touch screen
- Rotation speeds :Unlimited number of speeds between 0.3 and 1500 rpm
- Torque range :Standard Version : 0.05 to 30 mNm
- Accuracy :'+/- 1 % of the full scale
- Repeatability :+/- 0,2 %
- Display :Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque (%-mNm) - Shear stress - Time –Temperature
- Supply voltage :90-240 VAC 50/60 Hz
- PC connections :RS232 Port, USB and Ethernet
- Temperature :Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C
- Printer connection :USB Host Port - Compatible PCL/5
