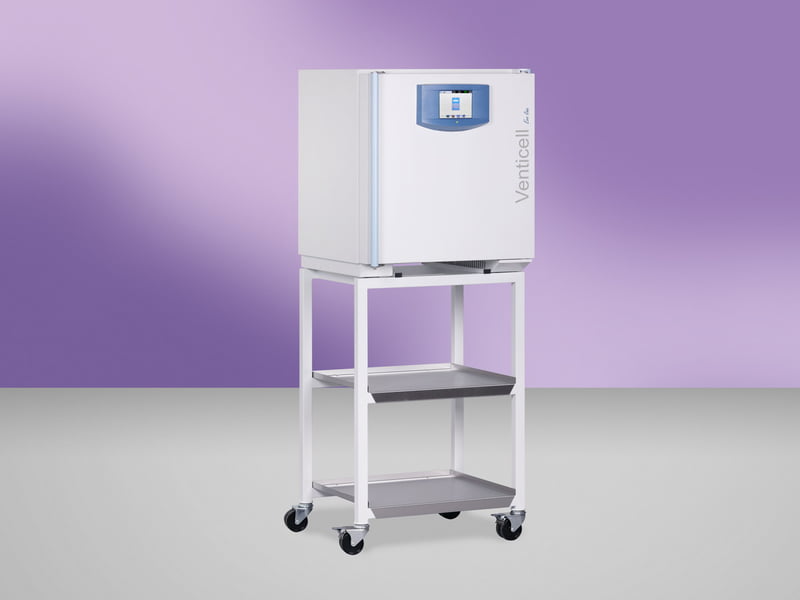

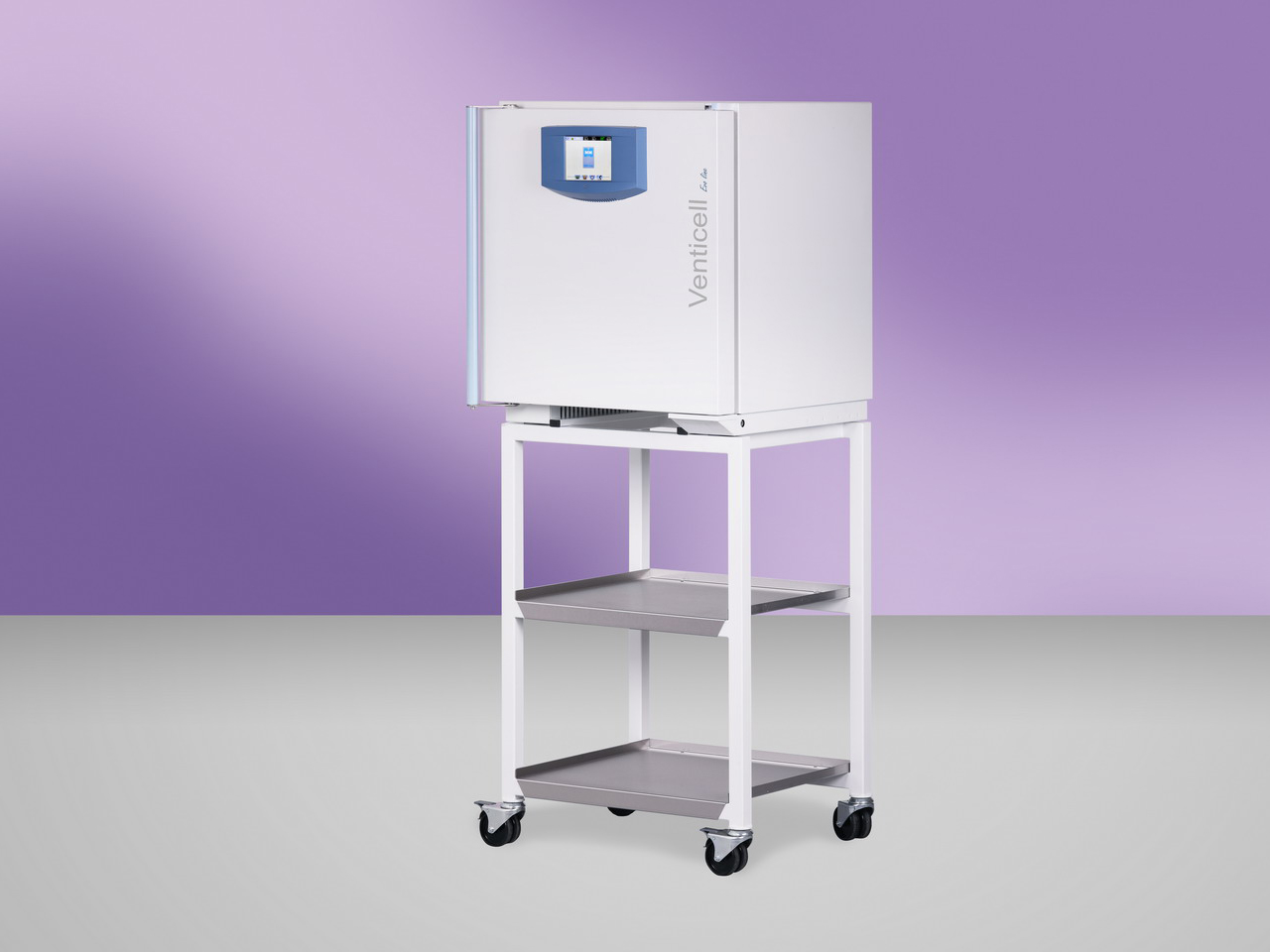

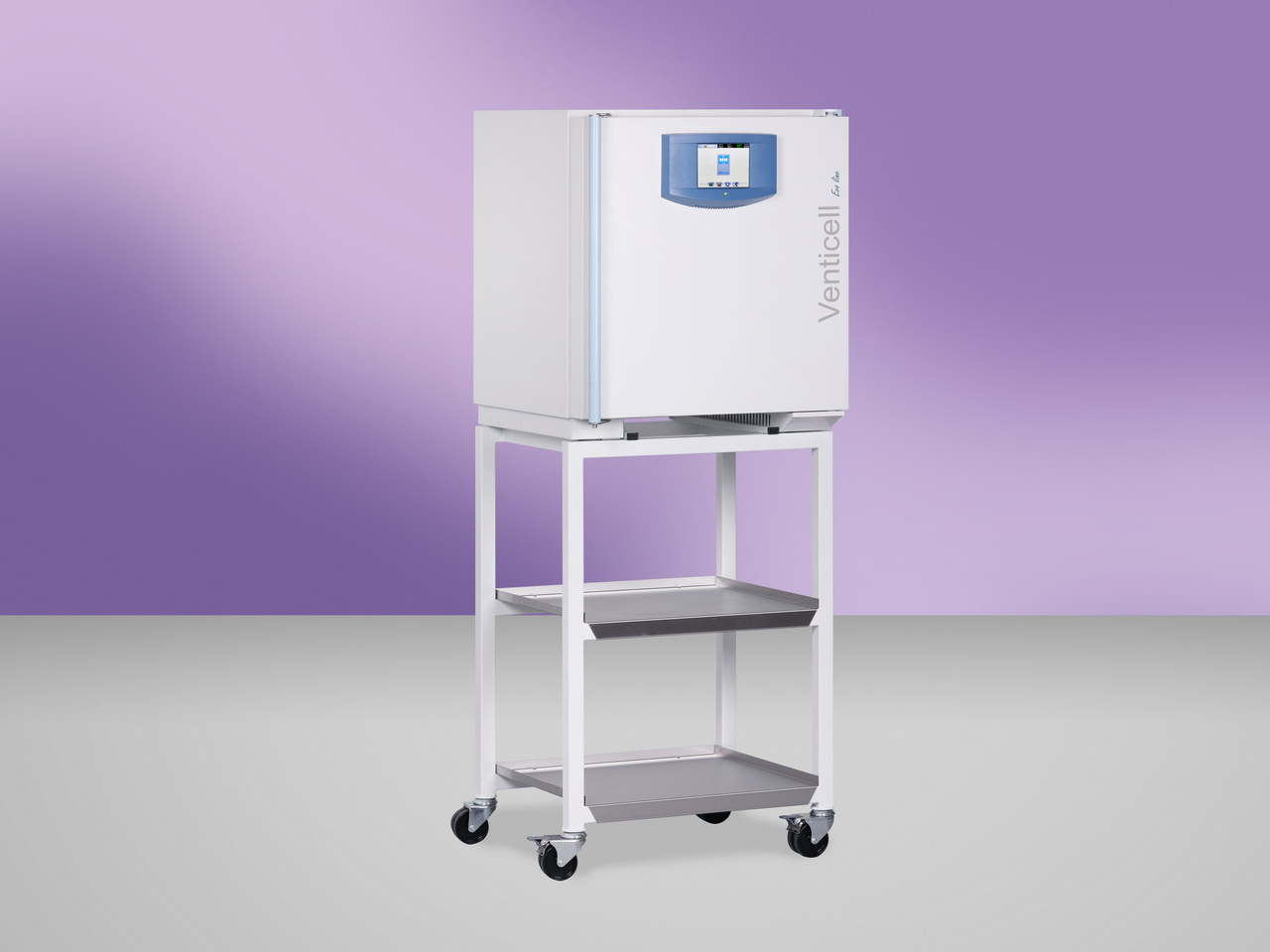

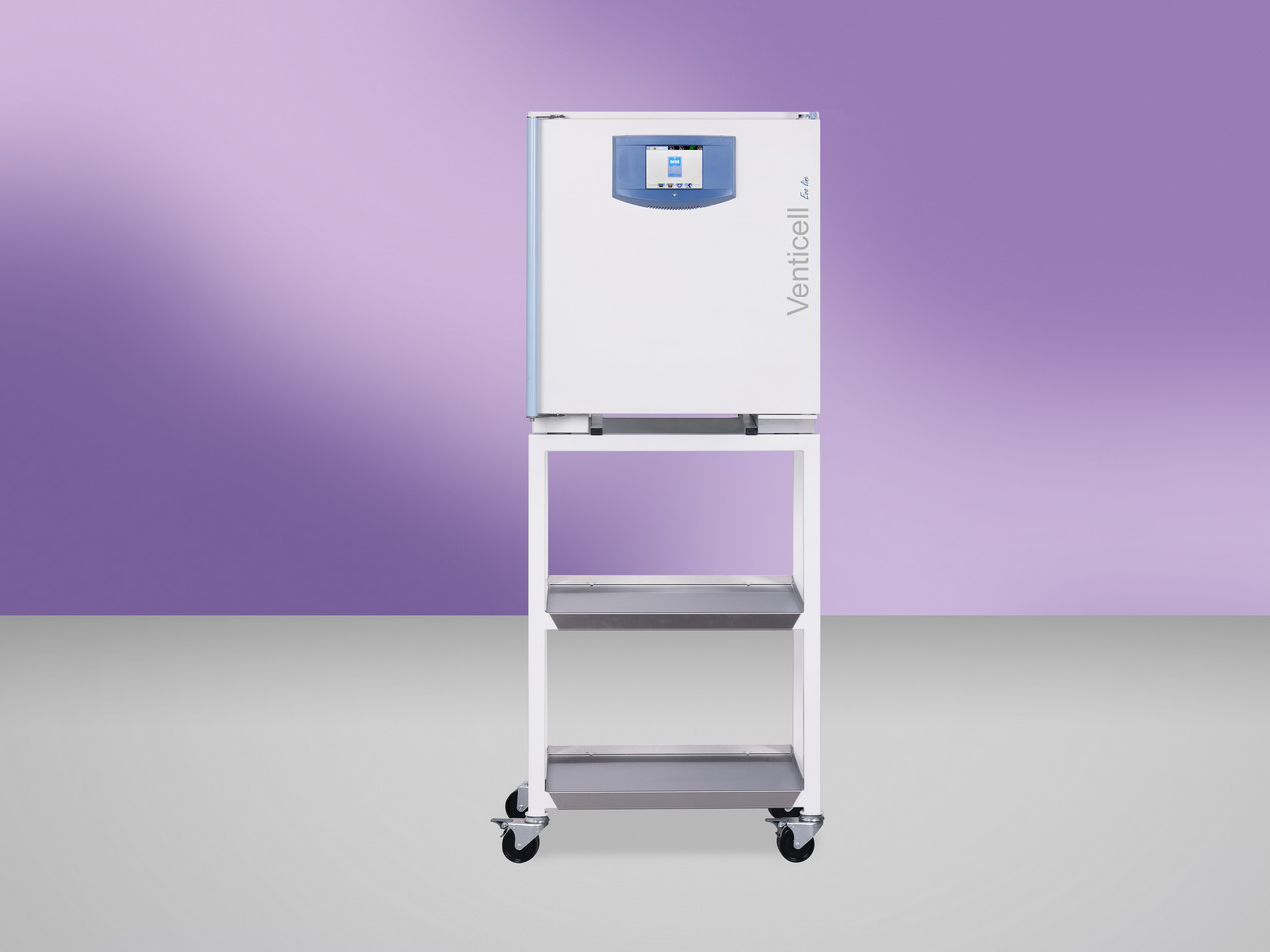

VENTICELL 55 - EVO line

• precise and fast laboratory drying oven
• chamber volume 55 litres
• temperature range from 10°C above ambient to 250/300°C
• forced air circulation system in the chamber guarantees homogeneous temperature distribution in all the processes of drying, heating and sterilization of materials in laboratories
• high operation comfort, precise temperature control and short chamber temperature equalization times after the door opening
• higher speed and accuracy of all the tempering procedures ensures economical operation, especially suitable for high humidity materials, for demanding and accurate tests and processes
• wide selection of optional equipment and accessories
• output for connecting a printer or PC
• possibility of validation (IQ, OQ)

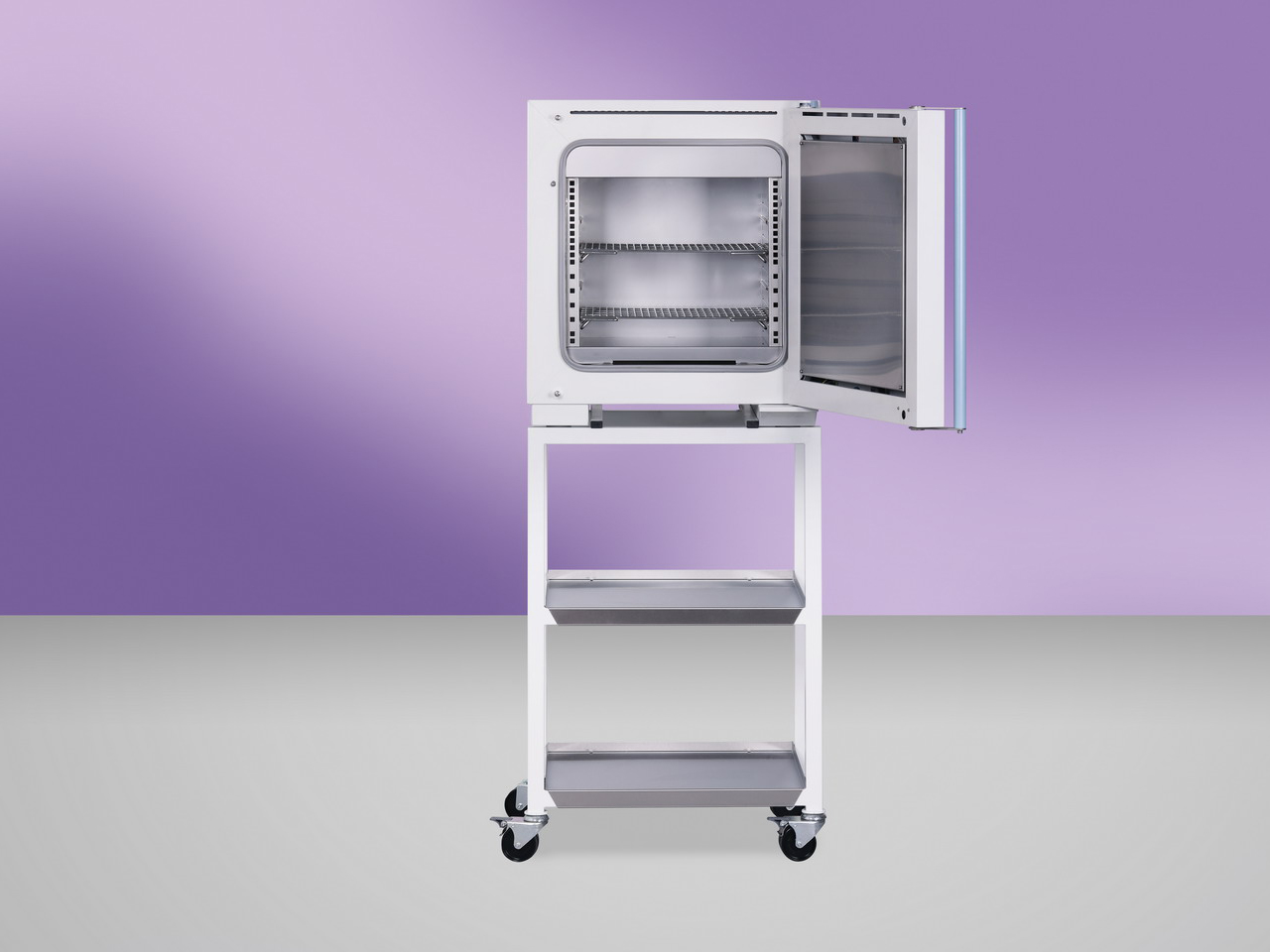

Interior of stainless steel material No. 1.4301

volume	55 l
depth	370 mm
width	400 mm
height	350 mm

Tray

standard equipment	2 pcs
storage area (w × d)	380 × 335 mm
racks	4 max. number
distance between guide rails	70 mm

Maximal weight of the load *)

inside the oven	50 kg/oven
per tray	20 kg/tray

Number of doors

1 pcs

External dimensions (including door and handle)

depth	640 mm
diameter of the air branch outer/inner	52/49 mm
width	620 mm
height (inclusive foots - N)	680 (N) mm

Package dimensions (three layers carton)

depth	730 mm
width	700 mm
depth	875 mm

Weight

brut	66 kg
net	55 kg

Working temperature **) (beginning of the regulation) - VENTICELL / VENTICELL plus

from 10 °C above ambient temp. to

300 °C

Temperature accuracy according to DIN 12 880 T2, at working temperature with closed air flap and door, > 50 °C

time variation cca (±)	0,3 °C
space deviation (±) % cca (±)% of the reached temperature	1 %

Time required to reach 250 °C with closed air flap and voltage 230 V

49 min

Heat emission at 250 °C

590 W

Air exchange speed at 250 °C

45 cca/hour

Electricity - mains 50/60 Hz

max. power input	1,3 kW
nominal voltage	230 V
current	5,6 A
stand by	5 W

*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber.Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.

Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
