UHD-4K Camera
High definition4K UHD2160p CMOS color camera
with HDMI and USB-3 interface
The Euromex4K Sony UltraHD camera offers - with the latest horizontal display resolution of 3,840 pixels (2,160p) and new 4K screens - a newsolution to modern microscopy for industry and laboratories wheremore spatial detail and contrastis needed. These4K UHD image quality camera can be used for biological, metallurgical or stereo microscopes
This standalone camera provides excellent color rendering at high frame rates, up to 60 frames per second
The 4K UHD ultra high definition camera can be used in two modes, in a stand-alone with its embedded mouse-driven software or in a computer controlled mode. A WiFi dongle is provided to connect the camera to the computer (ImageFocus Alpha software), should you wish to do so.
- Ultra HD 2160p, 8.3 MP, 1/1.8 inch color 4K Sony sensor

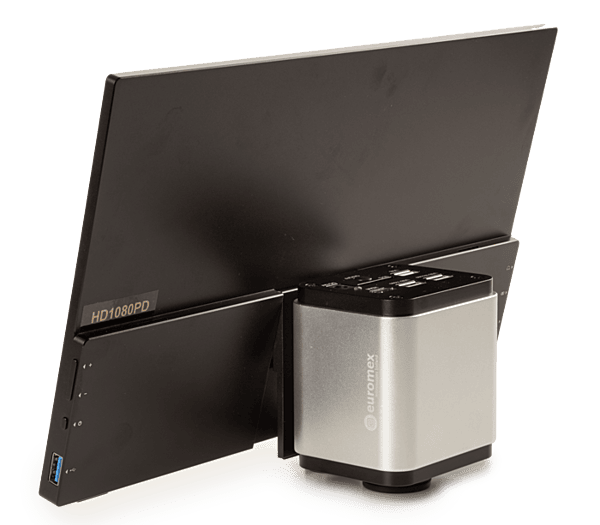

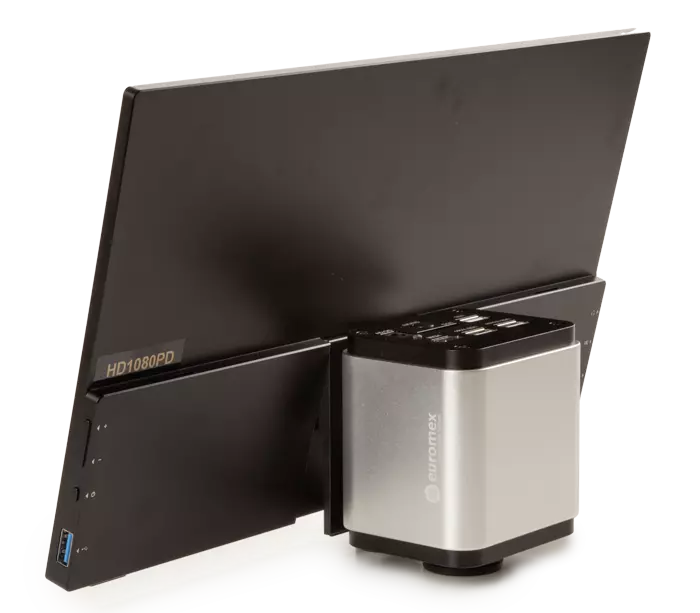

- Available with 13” HD screen (VC.3045-HDS)
- 3840 x 2160 pixels, 60 fps, H264 codec
- Color depth 36 bits
- Real time images directly on TV, monitor or beamer
- Stand alone or used via PC
- Built-in mouse-driven software
- C-mount interface
- 4K HDMI 2.0 standard
- 2061p/1080p automatic switching
- Interface: HDMI, USB-3, Ethernet, WiFi
- Storage on SD card or flash drive
- Works with ImageFocus Alpha software
TECHNICAL SPECIFICATIONS
Sensor
4K Sony
Format
1/1.8”, HDTV 2160p
Resolutions
3840 x 2160 (capture mode)
- HDMI 60@3840*2160 and 60@1920*1080*
- USB 30@3840*2160, 45@2688*1512 and 60@1920*1080*
- WiFi & LAN 30@3840*2160, 60@1920*1080 and 60@1280*720*
- Video 60@3840*2160 and 60@1920*1080*
*Frame rates have been determined at optimal conditions
Pixelsize
2.0 x 2.0 μm
Video
2160 pixels video recording mode
HD screen (VC.3045-HDS)
13”
Scanmode
Progressive scan, rolling shutter
Senitivity
3541 mv with 1/30 s
Exposure
Automatic/ manual
Whitebalance
Automatic/ manual/ ROI
Noise
3D algorithm
S/NMax
40.5
Interfaces
HDMI, USB-3.0*, LAN, WiFi
* USB 2 compatible but limitations in speed and resolution
Storage
High speed 32 GB SD Memory card (larger capacity SD cards are optional, max 128 GB)
or a max. 32 GB flash drive (not included)
Camerabuttons
On/ Off
Mounting
C-mount interface
Powersupply
100-240 Vac to 12Vdc/1A
Humidity
30~80 %
Operationtemperature
-10~ 50 ° Celsius
Storagetemperature
-20~ 60° Celsius
Measurement
Supported
Suppliedwith
0.5x objective with C-mount, 30 and 30.5mm adapters for stereo microscopes, 12V/1A power adapter, HDMI cable, USB mouse , SD-card, WiFi-dongle, USB-3 cable (a male to male), 76 x 24 mm calibration slide (1mm/100), user manual, carton box
PC software
Works with ImageFocus Alpha imaging and measuring software for Windows 10 and higher (32 and 64 bit configurations) and Linux. A Mac OS version is also available (with a few differences in features)
PC requirements
Compatible with Intel Core 2, 2.8 GHZ or higher, 2 GB, USB-3
Productnumber
VC.3045 / VC.3045-HDS
