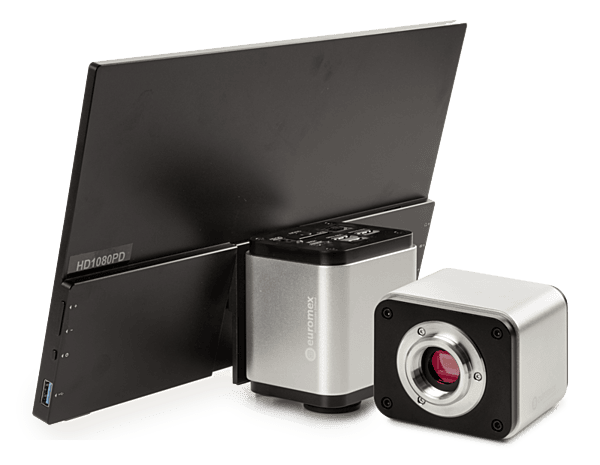

UHD-4K-16 Camera
High definition4K UHD3060p CMOS color camera
with HDMI and USB-3 interface
The Euromex4K Sony UltraHD camera offers - with the latest horizontal display resolution of 5440 pixels (3060p) and 4K screens - a newsolution to modern microscopy for industry and laboratories wheremore spatial detail and contrastis needed. These4K UHD image quality camera can be used for biological, metallurgical or stereo microscopes
This standalone camera provides excellent color rendering at high frame rates, up to 30 frames per second
The 4K UHD ultra high definition camera can be used in two modes, in a stand-alone with its embedded mouse-driven software or in a computer controlled mode. A WiFi dongle is provided to connect the camera to the computer (ImageFocus Alpha software), should you wish to do so

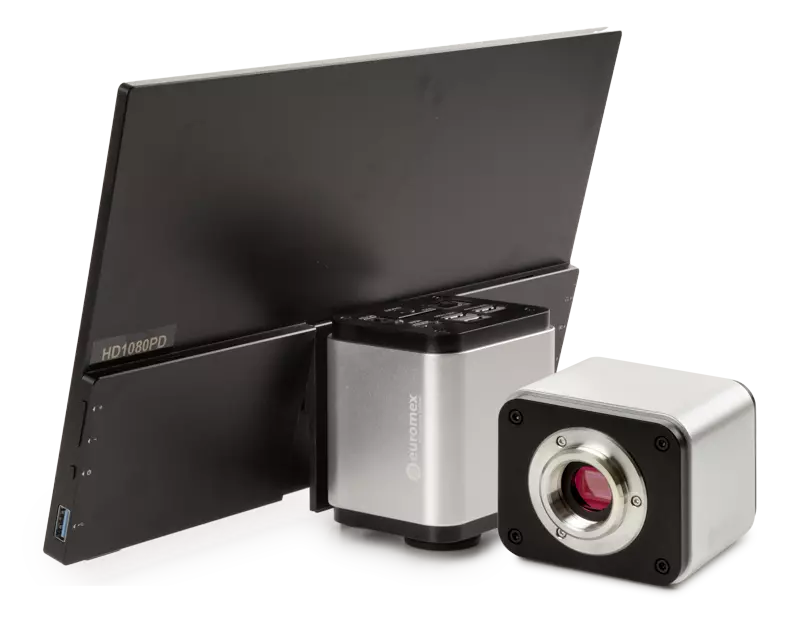

Available with 13” HD screen (VC.3048-HDS)
Suitable for all Euromex microscopes and most Zeiss, Leica, Olympus and Nikon models.
- Ultra HD /4K, 16 MP
- 1/1.1 inch color 4K Sony sensor
- 5440 x 3060 pixels, 30 fps
- Real time images directly on TV, monitor or beamer
- Stand-alone or used via PC or Mac
- C-mount interface
- 4K HDMI 2.0 standard
- Works with ImageFocus Alpha software
Models
*Frame rates have been determined at optimal conditions
TECHNICAL SPECIFICATIONS
Sensor
Sony IMX283 CMOS sensor
Format
1/1.1”
Pixelsize
2.4 x 2.4 μm
ResolutionHDMI 2.0*
30 @ 3840 x 2160
30 @ 1920 x 1080
ResolutionUSB-3*
20@5440*3060
30@2688*1512
30@1920*1080
ResolutionWiFi &LAN*
30@3840*2160
30@1920*1080
30@1280*720
Resolutionvideo*
30@3840*2160
30@1920*1080
30@1280*720
*(Frame rates have been determined at optimal conditions)
Image capture
16 MP (5440 x 3060) JPEG/TIFF or RAW image on SD card or USB flash drive (not included
Videorecording
8.3 MP (3840 x 2160) H264/H265 encoded MP4 file
HD screen (VC.3048-HDS)
13”
Scanmode
Progressive scan, rolling shutter
Sensitivity
1847 mV with 1/30 s
Color rendering (bits)
36
Noise
3D algorithm
Signal/Noise (db)
40.6
Dynamicrange (db)
48
Exposure
Automatic/ manual
Whitebalance
Manual/ Auto/ ROI White Balance
Interface
HDMI, USB-3*, Ethernet, WiFi
* USB 2 compatible but limitations in speed and resolution
Storage
32 GB, SD card, included (max. 128 GB)
Max. 32 GB flash drive, not included
Camerabuttons
On/ Off
Mounting
C-mount 1x
Powersupply
DC 12V/1A adapter
Humidity
30~80%RH
Operationtemperature
-10~ 50°C,
Storagetemperature
-20~ 60°C
Suppliedwith
1x objective with C-mount, 30 and 30.5 mm adapters for stereo microscopes, 12V/1A power adapter, HDMI cable, USB mouse , SD-card, WiFi-dongle, USB-3 cable (male to male), 76 x 24 mm calibration slide (1mm/100), user manual, carton box
PCsoftware
Works with ImageFocus Alpha imaging and measuring software for Windows 10 and higher (32 and 64 bit configurations) and Linux. A Mac OS version is also supplied (with a few differences in features)
PCrequirements
Equal to Intel Core 2, 2.8 GHZ or higher, 2 GB memory, USB-3
Productnumber
VC.3048 / VC.3048-HDS
EMBEDDED SOFTWARE
(displayed on screen, no need for a computer)
- Capture images and videos to SD (or flash drive)
- Playback images and videos from SD (or flash drive)
- Measurements (like Angle, Line, Horizontal Line, Vertical Line, Rectangle, Circle, Ellipse, Annulus, Two Circles, Polygon, Curve, etc)
- Compare images
- Grids
- Digital zoom in/out
- Flip
- Freeze
- Camera settings (white balance, color control etc)
