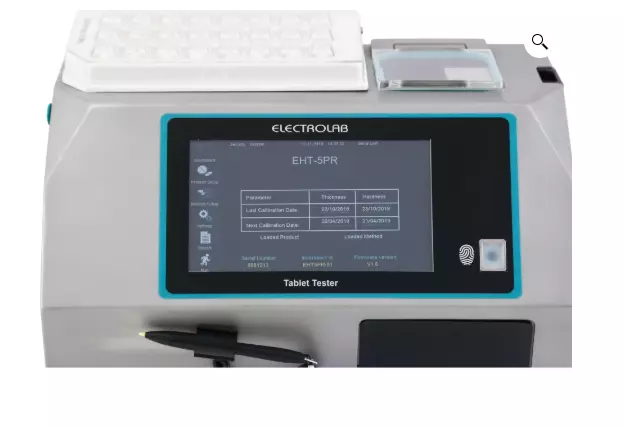

Tablet Hardness Tester EHT-5PR
| Measures 5 parameters - Weight, Thickness, Diameter (Length), Width and Hardness |
| Full color intuitive touch screen display |
| Constant speed and constant force measuring principle |
| Up to 100 samples per test |
| Jaw with multi groove |
| Multi level user management security |
| Indicator for calibration due date |
| Light and audio alarm indicator for Instrument status |
| Audio visual alarms indicator for instrument status |
| Programmable calibration and verification modes |
| Auto / Manual mode with programmable delay time |
| Adjustable delay between the samples |
| Tablet manager tray for easy carrying of tables from weighing scale |
| User selectable templates for printing reports |
| Protective cover to protect operator from inhaling tablet dust from tablets that 'explode' |
| Embedded printer for printing test results, validation and calibration reports |
| 21 CFR part 11 compliance |
| 10,000 product storage |
| Audit trial |
| finger print module |
| log book |
Non-returnable
Out of stock
Share:
Product Details
| Model | EHT-5PR |
| Parameters | weight, Thickness, Diameter / Lenght, Width, Hardness |
| Compliance | Body can be stainless steel (S.S) to comply with cGMP regulations or painted MS |
| Display | 7.0* touch screen display |
| Samples per test | Up to 100 |
| Adjustable delay between the samples | 1 sec to 99 secs |
| Measuring principle | constant speed |
| Printing of data and graphs | User defined templates |
| Hardness Range | 3N - 800N |
| Accuracy | ±1N |
| Jaw opening | 41 mm (up to 40mm optional) |
| Jaw | Dual (Big and Small groove ) |
| Units for hardness | N, Kp, Sc, user defined |
| Units for thickness /diameter | mm / inch |
| Constant speed setting | 1mm to 3 mm in step of 0.1 mm |
| Compatible weighing balances | Sartorius/ Mettler Toledo/Shimadzu/Contech/ Ohaus / Radwag |
| Security | Multi level user management ( flexible 10 role ) |
| Hardness /thickness calibration | 2 point calibration 3 point verification linearity |
| Report format | User defined tabular format |
| Interface | LAN and serial |
| Embedded Printer | Yes |
