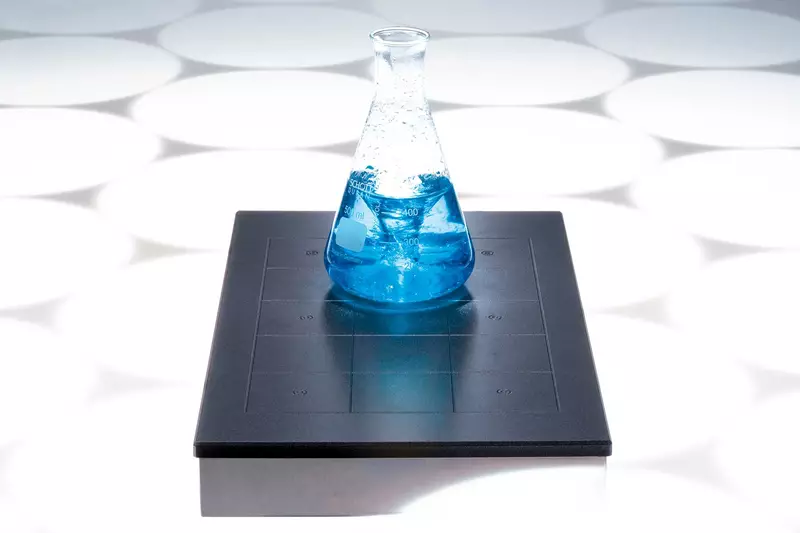

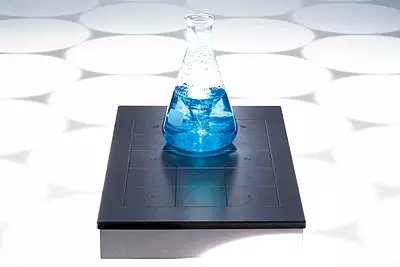

(STIRRING HOTPLATE 6) Stirring and heating
2mag stirring-heating plate combination with 6 stirring positions, incl. control unit heatMIXcontrol, universally applicable for miscellaneous vessel sizes and shapes, stirring point distance 130 mm, suitable for 6 x 1,000 ml Erlenmeyer flasks.
Stirring – wear and maintenance-free thanks to inductive 2mag magnetic stirrer, very wide speed range from 100 – 2,000 rpm with smooth operation even at low speeds, 100% synchronous rotation, 10-stage stirrer power setting for high power for viscous stirring quantities and reduced power for continuous operation without heating, digital display for speed, power and temperature setting, SoftStart for reliable catching/centering and safe acceleration of the stirring bar.
Heating – Heating plate made of resistant aluminium alloy, PTFE-coated for increased chemical resistance and easier cleaning, fast heating-up by powerful integrated electrical heater, homogenous temperature distribution, maximum heating temperature +200 °C, PowerDetect for automatic compensation of physically determined loss in stirring power which can come up to 40% at high temperatures, independent over-temperature protection inside the plate.
Inclusive separate control unit for operation of magnetic stirrer and integrated heater, for long-term protection of the electronics against aggressive liquids and gases as well as thermal influences, stainless steel housing.
Stirring-heating plate with 6 positions Stirring point distance 130 mm Stirring speed from 100 to 2,000 rpm Maintenance- and wear-free magnetic stirrer wirbel_mini Fast heating-up up to 200°C Energy-saving For different vessel sizes Simple system integration Durable quality Developed and made in Germany
Product Details
| type | STIRRING HOTPLATE 6 |
| Stirring points | 6 |
| Stirring point distance | 130 mm |
| Stirring volume/stirring point | 1 – 1,500 ml |
| Stirring power (max.) | 40 W |
| Power setting | 10 – 100% (10-stage) |
| Temperature range | +40 °C to +200 °C |
| Speed range | 100 – 2,000 rpm |
| Operating voltage | 230 V |
| Heating output (max.) at 230 V mains voltage | 1.200 W |
| Dimensions (WxDxH) | 250 x 430 x 75 mm |
| Protection class | IP20 |
| Shipping weight (gross) | approx. 13.0 kg |
| Order no. | 66306 |
