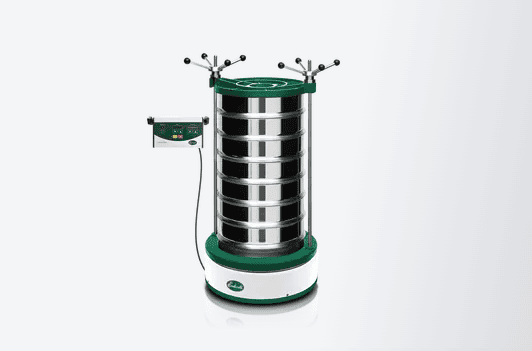

Sieve Shaker TITAN 450
0.00SAR
Product Details
Specifications
The name says it all: The new Titan 450 is Endecotts' most powerful sieve shaker! It is built for large sieve diameters and can take up to 7 x 450 mm diameter test sieves!
The Endecotts Titan 450 is a vibrating shaker that is used to carry out sieve tests in conjunction with sieve stacks for particle sizing of various material samples. It is based on an electromagnetic drive, with special carbon fibre springs that are set at a calculated angle to provide a horizontal twist, as well as a vertical movement to carry out efficient sieve tests.
The Titan 450 has a remote control unit that houses a digital controller to vary the vibration, process time and intermittent settings.
Product Advantages
- Electromagnetic drive for quiet and virtually maintenance free operation
- Easily set to maximum efficiency
- Digital controls for easy and reliable operation via external interface
- Economical
- No mechanical moving parts
- Suitable for wet or dry sieving
- Electromagnetic drive for quiet and virtually maintenance free operation
- Easily set to maximum efficiency
- Digital controls for easy and reliable operation via external interface
- Economical
- No mechanical moving parts
- Suitable for wet or dry sieving
Sieve Shaker
- Range20 µm to 125 mm
- Drive / sieving motionelectromagnetic 3D
- Max. batch / feed capacity20 kg
- Max. number of sieves7 full height 450 mm / 11 full height 300 mm
- Amplitude0 - 2 mm digital setting in 10 steps
- Speed3,000 min-1 at 50 Hz
- Time displaydigital, 00:10-99:50 min
- Suitable for dry sievingyes
- Suitable for wet sievingyes
- Sieve diameter250 / 300 / 315 / 350 / 400 / 450 mm / 8" / 12"
- Max. height of sieve stackup to 830 mm
- Clamping deviceturn and twist clamping system (included)
- Modelfloor
- Protection codeIP 54
- Electrical supplydifferent voltages available
- Power connection1 - Phase
- StandardsCE
