Endecotts

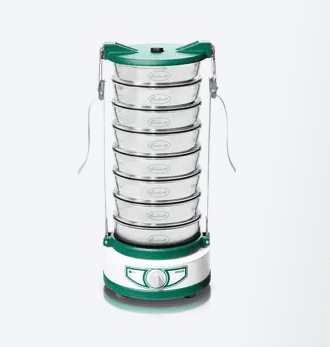

Sieve Shaker MINOR 200
SKU - Minor 200
Share:
Product Details
The Minor 200 has been developed and manufactured to combine low cost with the benefits of a well-designed and engineered shaker. It incorporates many features usually found only on larger, more expensive models.
It is ideal for the use in laboratories and plants since it is compact and genuinely portable (weighing only 17kg). The sieve stack is held firmly in position by a clamping belt system. Removing it allows the whole unit to be stored in a space less than 200 mm high.
There are no rotating parts in the Minor 200 - consequently it is quiet in operation and maintenance free.
Product Advantages
- Electromagnetic drive for quiet and virtually maintenance free operation
- Compact & portable (weighing only 17 kg)
- Requires only small storage space due to small footprint and easily removable clamping belt system (included)
- Easy to use
- Different voltages available
- Complies with the requirements of AASHTO T 27
- Electromagnetic drive for quiet and virtually maintenance free operation
- Compact & portable (weighing only 17 kg)
- Requires only small storage space due to small footprint and easily removable clamping belt system (included)
- Easy to use
- Different voltages available
- Complies with the requirements of AASHTO T 27
Specifications
- Range38 µm to 125 mm
- Drive / sieving motionelectromagnetic
- Max. batch / feed capacity3 kg
- Max. number of sieves8 full height / 16 half height (200 mm / 8" sieves)
- Amplitude~ 1.6 mm* fixed
- Speed3,000 min-1 at 50 Hz
- Time displayanalog, 0 - 60 min, continuously
- Suitable for dry sievingyes
- Suitable for wet sievingno
- Serial interface-
- Sieve diameter100 / 200 mm 3" / 8"
- Clamping deviceclamping belt system (included)
- Modelbenchtop
- Protection codeIP 20
- Electrical supplydifferent voltages available
- Power connection1 - Phase
- StandardsCE
- Min. number of sieves2 full height 200 mm / 8" dia sieves
