Endecotts

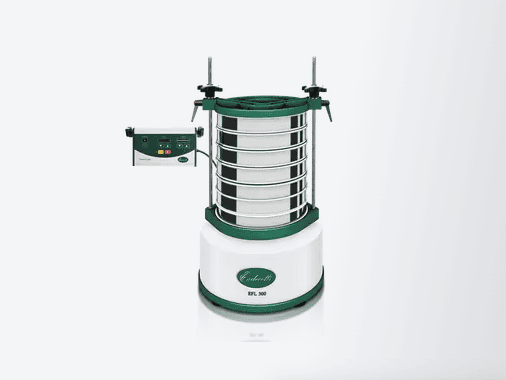

Sieve Shaker EFL 300
SKU - EFL300/23060
Share:
Product Details
The new Sieve Shaker EFL 300 combines the best features of the EFL2 whilst incorporating modern sieve shaker technology.
The EFL 300 is still extremely robust but at the same time lightweight and more powerful than its predecessor - heavier and larger samples can now be sieved.
The sieve shaker EFL 300 is very versatile. Amplitude setting is now standard. The heavy electric motor is replaced by the electromagnetic system found in all modern sieve shakers. Its lighter form means that it can be either floor standing or even bench mounted making it suitable for both, laboratory and industrial environments. Sieving parameters are set by the remote control unit. Its functions are logical and very simple to operate.
Product Advantages
- New electromagnetic drive
- Adjustable amplitude
- Floor or table mounted
- Suitable for wet or dry sieving
- Digital controls for easy and reliable operation via external interface
- Economical
- New electromagnetic drive
- Adjustable amplitude
- Floor or table mounted
- Suitable for wet or dry sieving
- Digital controls for easy and reliable operation via external interface
- Economical
Specifications
- Range20 µm - 40 mm
- Drive / sieving motionelectromagnetic 3D
- Max. batch / feed capacity6 kg
- Max. number of sieves6 / 12
- Amplitude0 - 2 mm digital setting in 10 steps
- Time displaydigital, 00:10-99:50 min
- Suitable for dry sievingyes
- Suitable for wet sievingyes
- Sieve diameter100 mm / 150 mm / 200 mm / 250 mm / 300 mm / 315 mm / 3" / 8" / 12"
- Max. height of sieve stack450 mm
- Clamping devicequick-release clamping system (included)
- Protection codeIP 21
- Electrical supplydifferent voltages available
- Power connection1 - Phase
- StandardsCE
