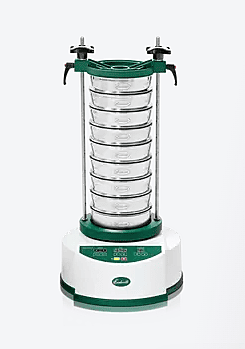

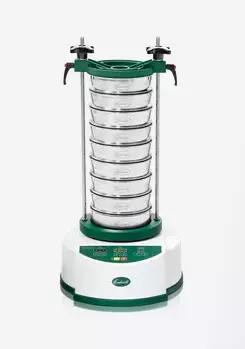

Sieve Shaker OCTAGON 200
The sieve shaker Octagon 200 is suitable for all sieving tasks in laboratories as well as onsite and provides optimum sieving action for fast and reproducible results.
It is robust, compact and sufficiently lightweight to be portable. Its electromagnetic drive combined with a 3D sieving motion ensures excellent separation efficiency in a short amount of time.
A digital display as well as a quick-release clamping system make operation very easy and straightforward.
It is robust, compact and sufficiently lightweight to be portable. Its electromagnetic drive combined with a 3D sieving motion ensures excellent separation efficiency in a short amount of time.
A digital display as well as a quick-release clamping system make operation very easy and straightforward.
Product Details
Specifications
Product Advantages
- Easy-to-use sieve clamping system
- Accepts up to 8 full height 200 mm (8") diameter sieves
- Suitable for dry and wet sieving
- 10 amplitude settings & digital timer
- 3D sieving motion allows for high separation efficiency and non blinding sieving action
- Different voltages available
- No mechanical moving parts
- Compact & portable
- Easily set to maximum efficiency
- Complies with the requirements of AASHTO T 27
Sieve Shaker
- Range20 µm to 125 mm
- Drive / sieving motionelectromagnetic 3D
- Max. batch / feed capacity3 kg
- Max. number of sieves8 full height / 16 half height (200 mm / 8" sieves)
- Amplitude0 - 3 mm* digital setting in 10 steps
- Speed3,000 min-1 at 50 Hz
- Time displaydigital, 00:10-99:50 min
- Interval operationyes (one mode)
- Suitable for dry sievingyes
- Suitable for wet sievingyes
- Serial interfaceyes (RS-232)
- Sieve diameter100 / 200 mm 8''
- Clamping devicequick-release clamping system (included)
- Modelbenchtop
- Protection codeIP 21
- Electrical supplydifferent voltages available
- Power connection1 - Phase
- Net weight~35 kg
- StandardsCE
