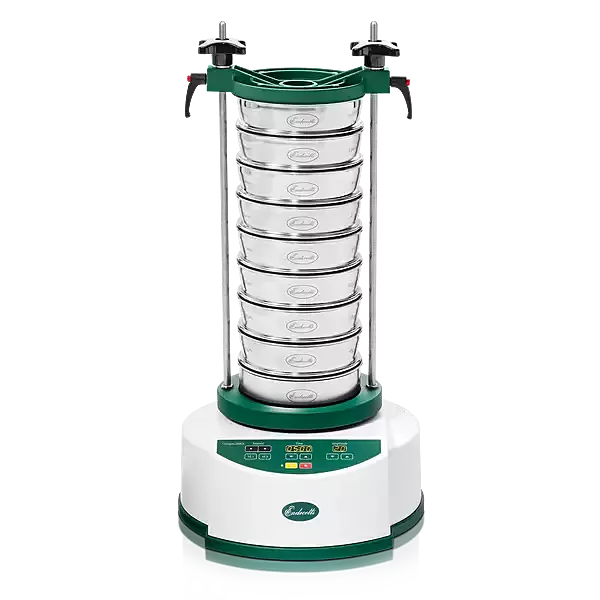

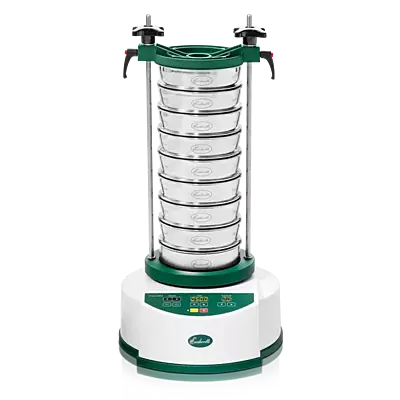

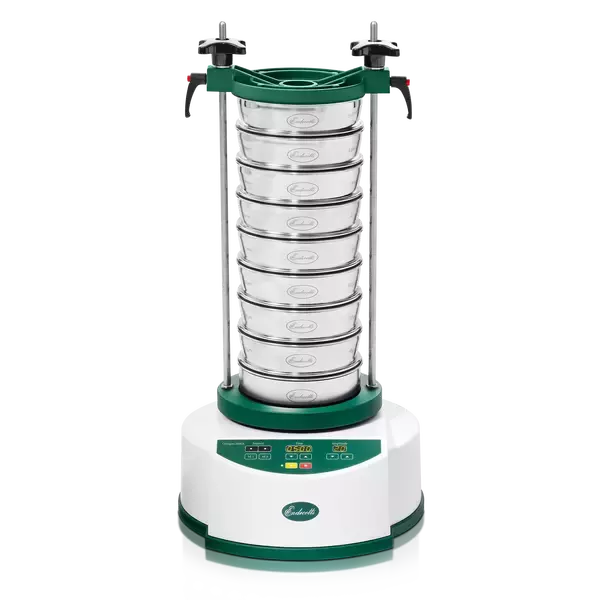

Sieve Shaker Octagon 200CL
Non-returnable
0.00SAR
Sieve Shaker OCTAGON 200CL
Product Details
Specifications
The new Octagon 200CL for precise, reproducible and error-free sieving processes competes with the most advanced sieve shakers in the world.
Several unique features have been developed specifically for this sieve shaker, including the ‘Closed Loop’ amplitude control for ultimate reproducibility.
The Octagon 200CL is designed to work with Endecotts’ SieveWare, the new software for easy evaluation and documentation of the sieving process.
Product Advantages
- Closed Loop' total amplitude control ensures reproducible sieving
- Digital controls for easy and reliable operation
- Easy-to-use sieve clamping system
- Accepts up to 8 full height 200 mm (8") diameter sieves
- Suitable for dry and wet sieving
- 3D sieving motion allows for high separation efficiency and non blinding sieving action
- Full compatibility with new SieveWare evaluation and control software via RS232 Port (printed or digital protocols)
- Voltage-independent
- No mechanical moving parts
- Compact & portable
- Easily set to maximum efficiency
- Complies with the requirements of AASHTO T 27
- Closed Loop' total amplitude control ensures reproducible sieving
- Digital controls for easy and reliable operation
- Easy-to-use sieve clamping system
- Accepts up to 8 full height 200 mm (8") diameter sieves
- Suitable for dry and wet sieving
- 3D sieving motion allows for high separation efficiency and non blinding sieving action
- Full compatibility with new SieveWare evaluation and control software via RS232 Port (printed or digital protocols)
- Voltage-independent
- No mechanical moving parts
- Compact & portable
- Easily set to maximum efficiency
- Complies with the requirements of AASHTO T 27
Sieve Shaker
- Range20 µm to 125 mm
- Drive / sieving motionelectromagnetic 3D
- Max. batch / feed capacity3 kg
- Max. number of sieves8 full height / 16 half height (200 mm / 8" sieves)
- Amplitude0 - 3 mm* digital setting in 10 steps
- Speed3,000 min-1 at 50 Hz
- Time displaydigital, 00:10-99:50 min
- Interval operationyes (one mode)
- Suitable for dry sievingyes
- Suitable for wet sievingyes
- Serial interfaceyes (RS-232)
- Sieve diameter100 / 200 mm 8''
- Clamping devicequick-release clamping system (included)
- Modelbenchtop
- Protection codeIP 21
- Electrical supplydifferent voltages available
- Power connection1 - Phase
- Net weight~35 kg
- StandardsCE
