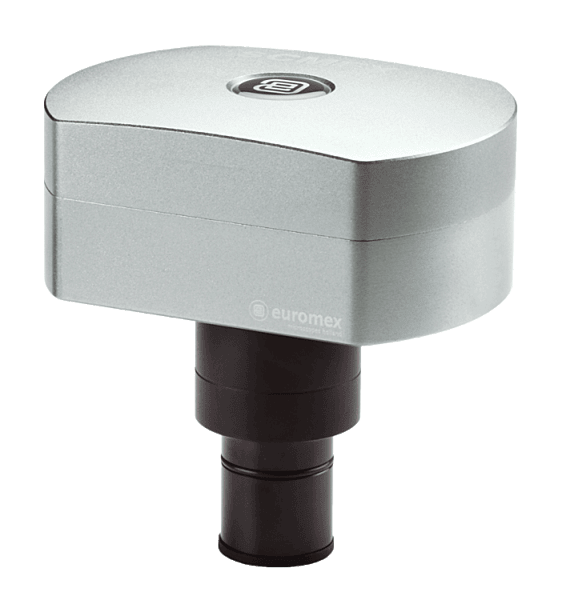

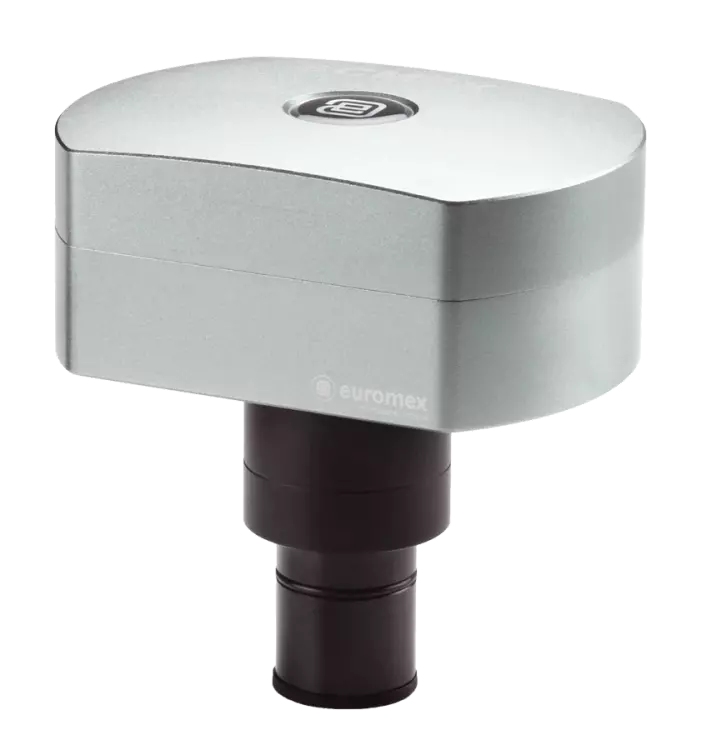

sCMEX
The different USB-3 sCMOS cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes
sCMEX USB-3 cameras with Scientific sCMOS sensor
The sCMEX-6, sCMEX-12, sCMEX-20 and sCMEX-32 cameras are equipped with a scientific grade back illuminated sCMOS sensor with 16 bits grayscale conversion and an outstanding 36 bits color rendering. Suitable for brightfield, darkfield and fluorescence. The sCMEX cameras are equipped with a USB-3 data interface and supplied with ImageFocus Alpha software
Besides capturing images and videos, the software allows measurements on still and live images and annotations on captured images. Compatible with Windows 10 and higher, both 32 and 64 bits configurations. Also compatible with Mac OS (image capturing only). PC requirements: Intel Core2 2.8 GHz or higher or equivalent, 2 GB memory, USB-3 port, 17 inch display
- High speed camera
- SONY Exmor R sCMOS color USB 3.0 camera
- Low signal/noise ratio
- USB 3.0 interface
- Back-illuminated sCMOS sensor
- Perfect color-reproduction capability
sCMEX
The sCMEX cameras are supplied in a carton box with a USB-3 cable, 30.0 and 30.5 mm to 23.2 mm conversion adapters for use with stereo microscopes, 1mm/100 (10μm/division) calibration slide
The DC.6000s is supplied with a 0.5x objective
The DC.12000s is supplied with a 0.75x objective
The DC.20000s and DC.32000s are supplied with a 1.0x objective
* Frame rates have been determined at optimal conditions
TECHNICAL SPECIFICATIONS sCMEX
Sensor
SONY Exmor R sCMOS
Scan mode
Progressive, rolling shutter
Filter
RGB
Mount
C-mount
ADC
16 bits
Color depth
36 bits
Exposure
Automatic or manual
White balance
Automatic/manual
Data interface
USB 3.0
Operation
0 – 60° C, 45-85 % humidity
Storage temperature
-20 to 70° Celsius
Supplied with
0.5x objective with C-mount (sCMEX-6), 0.75x objective with C-mount (sCMEX-12),
1x objective with C-mount (for sCMEX-20 and sCMEX-32),
USB 3.0 cable, 30 and 30.5 mm adapters for stereomicroscopes,
76 x 24 mm calibration slide (1mm/100), CD ROM with ImageFocus Alpha software, carton box
Software
Supplied with ImageFocus Alpha, image and video capturing and measuring software
For Win 10 and higher (32 and 64 bit configurations)
PC requirements: Compatible with Intel Core 2, 2.8 GHZ or higher, 2GB, USB-3 high speed, 17 inch display
A Mac OS Light software version is also supplied, image capturing only
