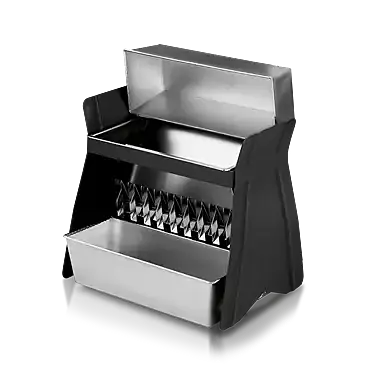

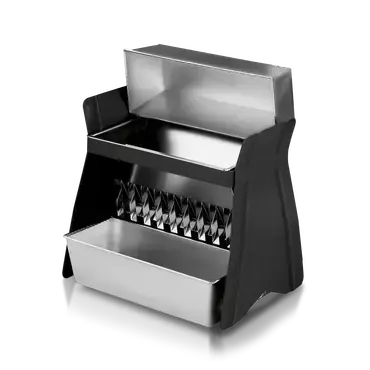

Sample Splitter
Non-returnable
0.00SAR
Out of stock
Endecotts hand held sample splitter will subdivide material samples into two smaller portions by a single pass.Further subdivisions can be attained by multiple passes.
Each subdivision created with an Endecotts sample splitter retains the characteristics of the original sample.
Two different sample splitter versions are available: One with 6.3 mm slot width and one with 12.5 mm slot width.
Product Advantages
- Unit consists of splitter plus 3 receiving boxes
- Stainless steel with slot widths
- Will subdivide material samples into two smaller portions by single pass
- Each subdivision retains the characteristics of the original sample
Product Details
Sample SplitterTechnical Data
| Applications | sampling and sample dividing |
| Slot size | SD 6.5: 6.3 mm SD 12.5: 12.5 mm |
| Number of slots | SD 6.5: 12 SD 12.5: 18 |
| Field of application | agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | bulk materials |
| Material feed size* | SD 6.5: ~ 4 mm SD 12.5: ~ 8 mm |
| Batch size / feed quantity* | SD 6.5: <= 3 l SD 12.5: <= 3 l |
| Number of divisions | 2 |
| W x H x D | SD 6.5: 30 x 27 x 25 cm SD 12.5: 30 x 27 x 25 cm |
| Net weight | SD 6.5: ~ 3.5 kg SD 12.5: ~ 3.5 kg |
