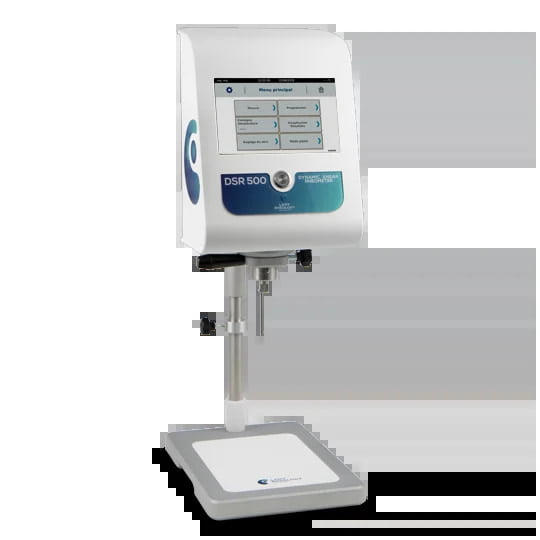

RHEOMETER DSR 500
0.00SAR
Product Details
Specifications
The rheometer with imposed shear rate, equipped with a 7 ‘’ touch screen to display the curves directly. And with direct report editing on a desktop printer, measuring viscosity or yield point has never been so easy!
+ Direct curve on display.
+ Direct analysis with regressions.
+ Direct control of temperature unit.
+ Programming and recording method.
+ 1 point, multistep and ramp methods.
+ Direct measure with time to stop.
+ User and locked mode.
+ Data recording and USB transfer.
+ Integrated temperature probe.
+ Display viscosity limits according spindle/speed.
+ Compatible printer and RheoTex software.
+ Functions LIMS and QC limits.
viscometer
- Type of instrument :Rotating springless viscometer with 7’’ Touch screen
- Rotation speeds :Unlimited number of speeds between 0.3 and 1500 rpm
- Torque range :From 0.05 to 13 mNm
- Accuracy :'+/- 1 % of the full scale
- Repeatability :+/- 0,2 %
- Display :Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque (%-mNm) - Shear stress - Time –Temperature
- Supply voltage :90-240 VAC 50/60 Hz
- PC connections :RS232 Port, USB and Ethernet
- Printer connection :USB Host Port - Compatible PCL/5
