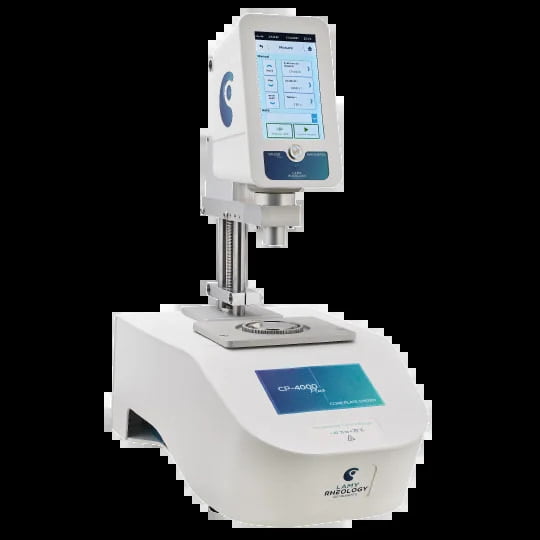

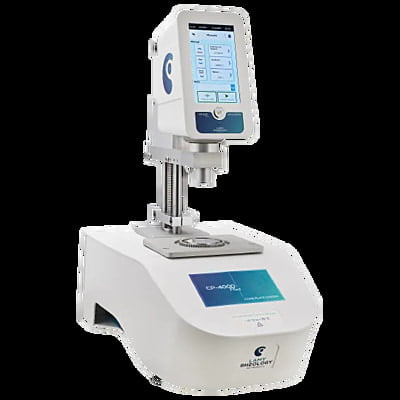

RHEOMETER CONE-PLATE RM 200 CP-4000 PLUS
0.00SAR
Product Details
Specifications
The motorized lift of the RM 200 CP-4000 PLUS allows a fast and repeatable installation of cone and plate measuring systems guaranteeing reliable rheological measurements whatever your application.
+ Temperature range -20°C to 300°C (according to models).
+ Automatic adjustment of measuring gap.
+ Low volume measurement.
+ High shear rate (up to 20000 s-1).
+ Removable lower plate.
+ Quick attachment with AC265 coupling.
+ Programming and savin methods.
+ 1 Point, multistep and ramp methods.
+ Data analysis by regression.
+ Display viscosity limits according spindle/speed.
+ Compatible printer and RheoTex software.
+ Functions LIMS and QC limits.
viscometer
- Type of instrument :Rotating springless viscometer with 7’’ Touch screen
- Rotation speeds :Unlimited number of speeds between 0.3 and 1500 rpm
- Torque range :From 0.05 to 13 mNm
- Accuracy :'+/- 1 % of the full scale
- Repeatability :+/- 0,2 %
- Display :Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque (%-mNm) - Shear stress - Time –Temperature
- Supply voltage :90-240 VAC 50/60 Hz
- PC connections :RS232 Port, USB and Ethernet
- Printer connection :USB Host Port - Compatible PCL/5
