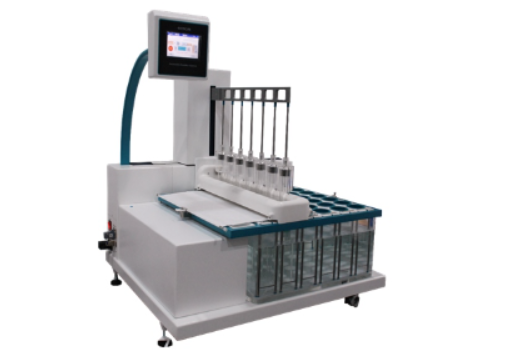

Reciprocating DissolutionTester Basic(ERD-03)
Non-returnable
0.00SAR
Out of stock
- Complies with current USP Apparatus 3 specifications
- Ideal for extended release products or any dosage form requiring release profiling at multiple pH levels
- Select between multiple configurations of rows, vessels and vessel volume to meet testing needs for USP 3 method
- 3.5" TFT touch screen graphic display
- 20 programmable protocols with 16 sampling intervals
- 2 level security with password
- Dip rate ranges between 5 to 50 dpm with an accuracy of ±5%
- Programmable hold, drain time and programmable dip rate in each row
- Temperature range between 20°C to 40°C with an control accuracy of ± 0.2°C
- Online validation of dpm and temperature
- Rugged clear acrylic Water bath
- PC & LAN Connectivity allows centralized printing.
- Retractable curtain to prevent media loss by evaporation
- Configured with 100 ml and 300 ml capacity vessels along with vessel tray
Product Details
- Model: ERD-03 (Basic)
- Material of Construction: S.S. 316
- Water Bath: Clear acrylic moulded water bath
- Bath capacity: 44 Litres
- Number of rows: 50 x 9, 100 x 6, 300 x 6, 1000 x 1
- Number of dips rate: 5 to 50 dpm
- Vessel Capacity: 100ml, 300ml, 1000ml
- Motor: Single shaft motor 10 kg cm
- Temperature range: 20°C to 40°C
- Temperature accuracy: ±0.2°C
- Heater: 1000 Watts, 230 V AC, S. S 304
- Dimensions (W x L x H): 675 mm x 795 mm x 780 mm
- Electrical power: 220/230 VAC, 50/60 Hz, 600 W/6 Amp 110 VAC, 50/60 Hz, 600 W/6 Amp
- Weight: 150 Kg (Approx)
