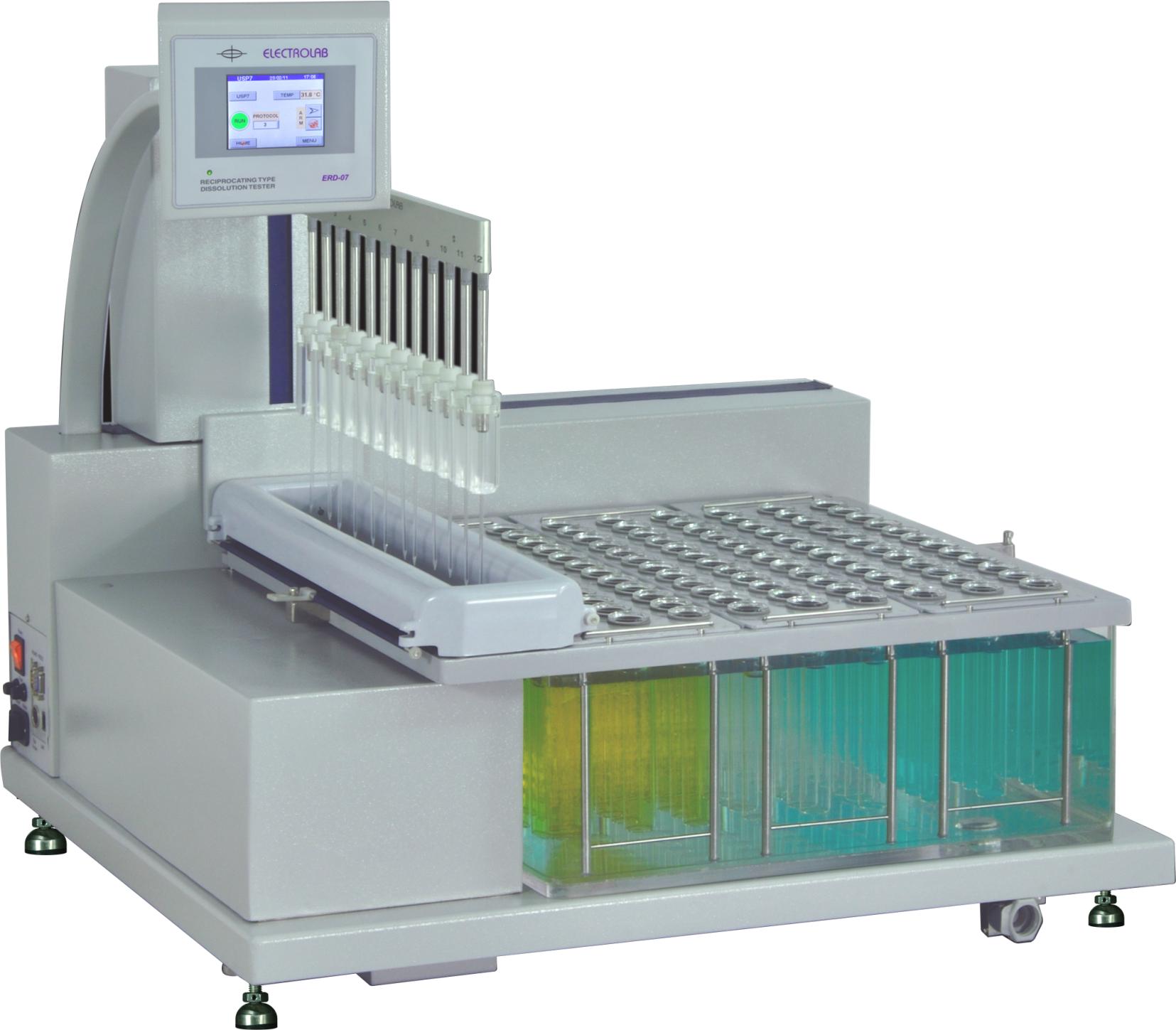

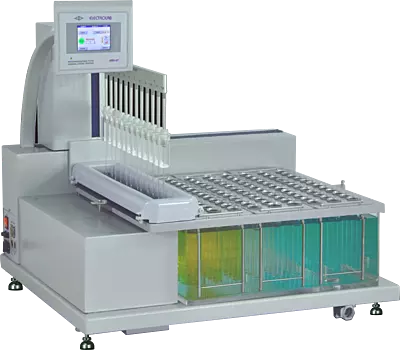

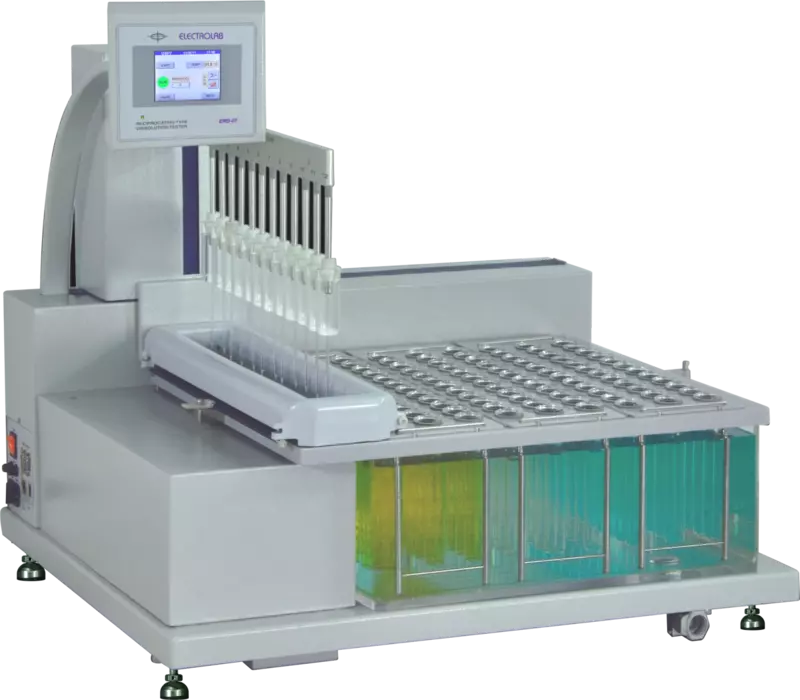

Reciprocating Dissolution Tester (ERD-37)
Non-returnable
0.00SAR
Out of stock
- Complies with current USP Apparatus 3 and 7 specifications
- User can switch between USP 3 and 7 methods within minutes and without any special tools
- Ideal for extended release products or any dosage form requiring release profiling at multiple pH levels
- Selection between multiple configura ons of rows, vessels and vessel volume to meet testing needs for
- both USP 3 and 7 methods
- 3.5" TFT touch screen display
- Facilitates manual and auto sampling
- 20 programmable protocols with 24 sampling intervals
- Dip rate ranges between 5 DPM to 50 DPM with an accuracy of ± 5%
- Temperature range between 20°C to 40°C with an accuracy of ± 0.5°C
- Online validation of DPM and temperature
- Auto detection of tray position
- Reports printing on serial printer or LAN
Product Details
- Model: ERD-37
- Material of Construction: S.S. 316
- Water Bath: Clear acrylic moulded water bath
- Bath capacity: 44 L
- Number of rows: 50 x 9, 100 x 6, 300 x 6, 1000 x 1
- Number of dips rate: 5 DPM to 50 DPM
- Display: Touch screen, 3.5" Graphic display
- Motor: Single shaft motor 10 kg cm
- Temperature range: 20°C to 40°C
- Temperature accuracy: ± 0.5°C
- Heater: 1000 Watts, 230 V AC, S. S 304
- Dimensions (L x W x H): 795 mm x 675 mm x 780 mm
- Electrical power: 220/230 VAC, 50/60 Hz, 600 W/6 Amp 110 VAC, 50/60 Hz, 600 W/6 Amp
- Weight: 150 Kg (Approx)
