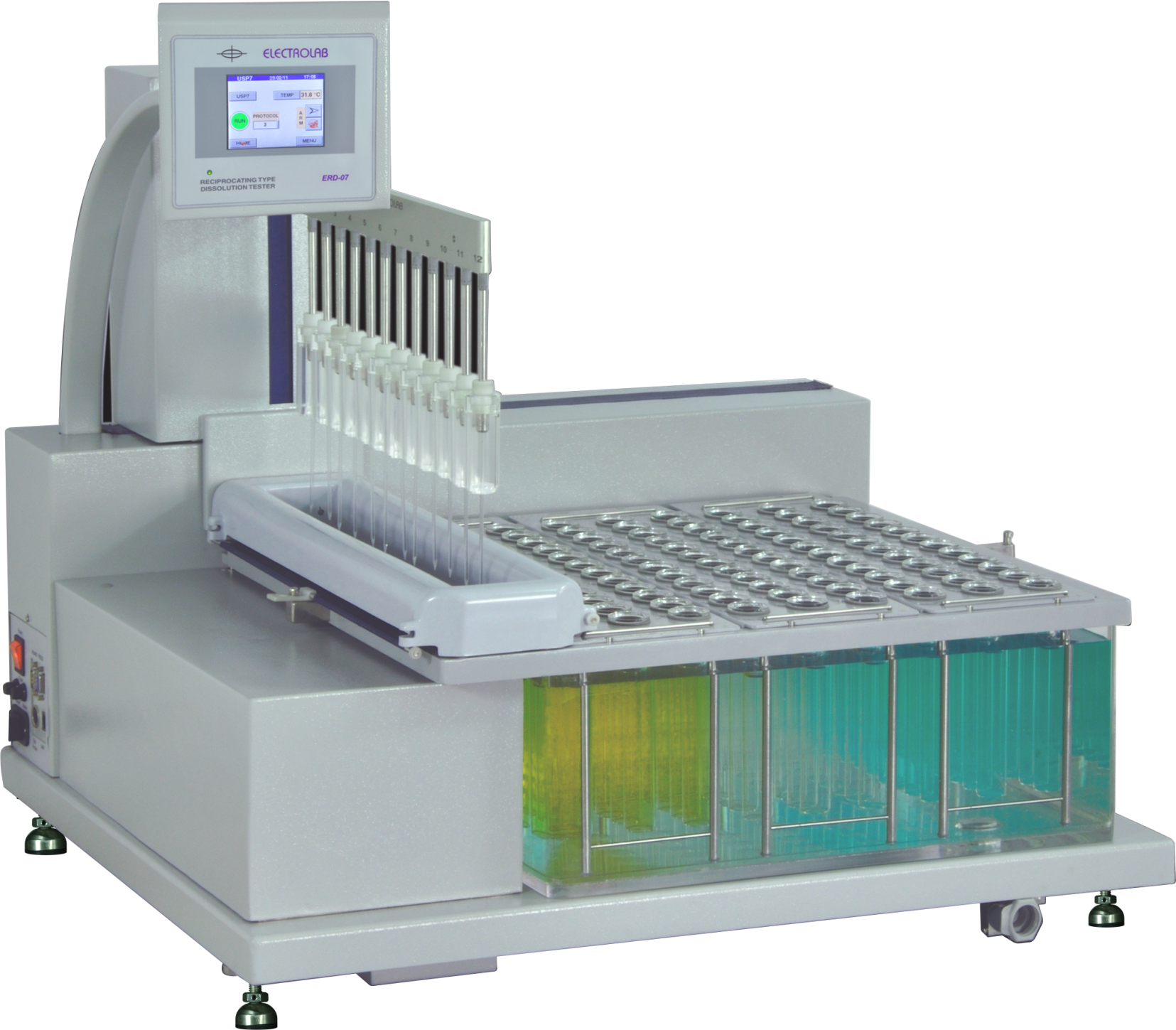

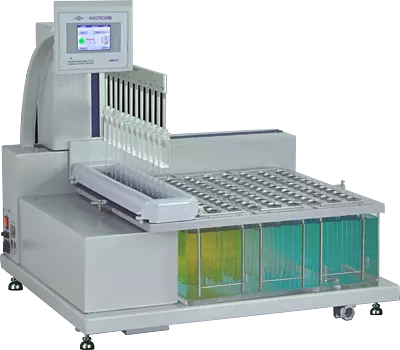

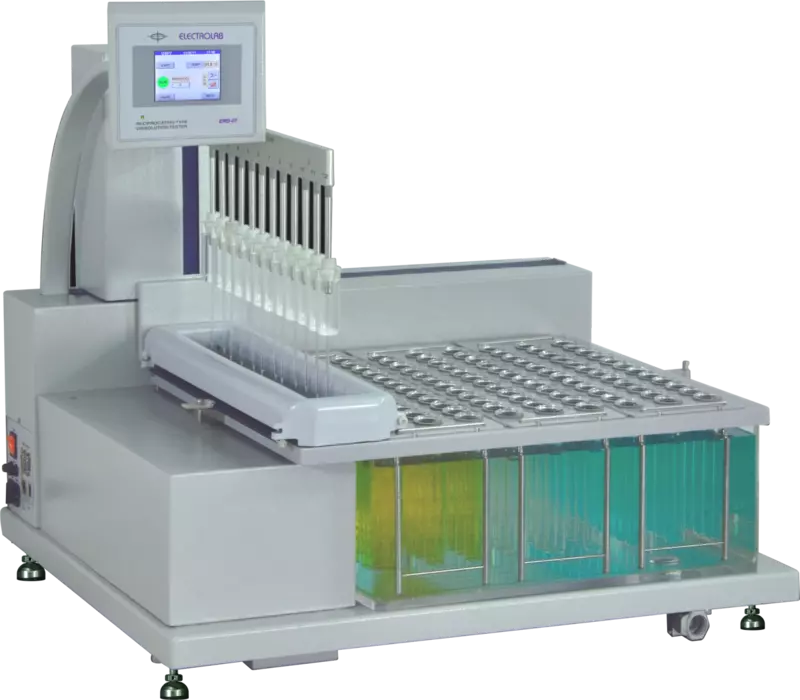

Reciprocating Dissolution Tester (ERD-07)
Non-returnable
0.00SAR
Out of stock
- Complies to current USP Apparatus 7 specifications
- Ideal for extended release products or any dosage form requiring release profiling at multiple pH levels
- Select between multiple configurations of rows, vessels and vessel volume to meet testing needs for USP 7
- 20 programmable protocols with 24 sample intervals
- 2 level security with password
- Touch screen with graphical display for user friendly operation
- Dip rate ranges between 5 to 50 dpm with an accuracy of ±1%
- Programmable hold, drain time and programmable dip rate in each row
- Temperature range between 30°C to 40°C with an control accuracy of ± 0.2°C
- Online validation of dpm and temperature
- Rugged clear acrylic Water bath
- PC & LAN Connectivity allows centralized printing, storing and sharing of data.
- Retractable curtain to prevent media loss by evaporation
- Can be configured with 100 ml and 1000 ml capacity vessels along with vessel tray
Product Details
- Model: ERD-07
- Material of Construction: SS 316
- Water Bath: Clear acrylic moulded water bath
- Bath capacity: 44 litres
- No. of rows: 6
- Vessel capacity (ml): 300
- Reciprocating height (mm): 100
- No. of dips rate (dpm): 5 to 50
- Accuracy (°C): ± 0.2°C
- Controlled temperature range (°C): 30 to 40
- Display: Touch screen
- Motor: Single shaft Motor 10 kg cm
- Heater: 1000 Watts, 230 V AC, S. S 304
- Mains fuse:1 Amp
- Heater fuse: 6 Amp
- Dimension (L X W X H): 795 X 675 X 780 mm
