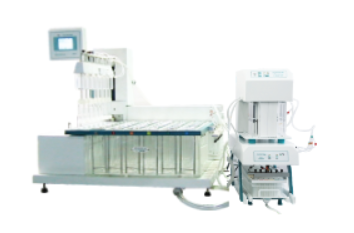

Reciprocating Dissolution Tester Auto Sampler (ERD-03)
Non-returnable
0.00SAR
Out of stock
- Complies to current USP Apparatus 3 specifications
- Ideal for extended release products or any dosage form requiring release profiling at multiple pH levels
- Select between multiple configurations of rows, vessels and vessel volume to meet testing needs for USP 3
- 20 programmable protocols with 16 sample intervals
- 2 level security with password
- Touch screen with graphical display for user friendly operation
- Dip rate ranges between 5 to 50 dpm with an accuracy of ±5%
- Programmable hold, drain time and programmable dip rate in each row
- Temperature range between 20°C to 40°C with an control accuracy of ± 0.5°C
- Online validation of dpm and temperature
- Rugged clear acrylic Water bath
- PC & LAN Connectivity allows centralized printing.
- Retractable curtain to prevent media loss by evaporation
- Configured with 100 ml and 1000 ml capacity vessels along with vessel tray
- Performs key operations like filtering, storing and replacing withdrawn samples with fresh media
- The glass syringes eliminate adsorption and offera high accuracy of dosing (better than ± 1%)
- No routine calibration or maintenance
- Supports 10 ml and 25 ml syringes
- Auto sampling works with standard 300ml vessel configuration only
- The high suction capability enables efficient use offine inline filters (0.45 microns), elimin ating manual filtration process
- The 4-way motorized valve offers unprecedented system flexibility and the capability to deal with ticky media
- The ergonomically designed Syringe Pump has a very small footprint to save bench space
- The arm movement meets the automated sampling requirements of collection
Product Details
- Model: ERD-03 with Auto Sampler
- Material of Construction: SS 316
- Water Bath: Clear acrylic water bath
- Bath capacity: 44 litres
- No. of rows: 6
- Vessel capacity: 300ml, 100ml, 1000ml
- Reciprocating height: 100 mm
- No. of dips rate: 5 to 50 dpm
- Temperature accuracy: ±0.5°C
- Temperature range: 20°C to 40°C
- Display: Touch screen
- Heater: 1000 Watts, 230 V AC, S. S 304
- Mains fuse: 1 Amp
- Heater fuse: 6 Amp
- Dimension (L X W X H): 795 mm X 675 mm X 780 mm
