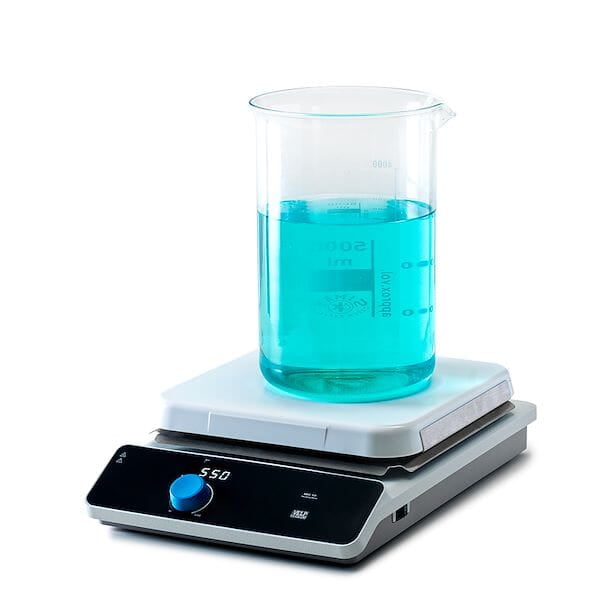

REC 10 Digital Ceramic Hot Plate

REC 10 Digital Ceramic Hot Plate

0.00SAR

REC 10 Digital Ceramic Hot Plate

A digital heating plate with a 10-inch square ceramic plate provides high corrosion resistance, precise temperature control, and enhanced safety features. It is the ideal solution for laboratories requiring a large working surface.
Quantity
Add to Cart
Product Details
Specifications

Powerful heating and precise temperature control

Powerful heating and precise temperature control
The REC 10 Digital features a state-of-the-art heating technology that guarantees temperature uniformity, high thermal efficiency and long-lasting heating performance.

It is the ideal solution for laboratories requiring precise sample temperature control. It is possible to connect the heating plate to an external Pt100 or Pt1000 probes and the VTF Digital thermoregulator for superior temperature control.

When working with Pt100 and Pt1000 probes it is possible to achieve precise heating of the medium up to 350°C with an impressive ±1.0°C accuracy. Alternatively, use the VTF Digital for a maximum medium thermoregulation of 300°C and an exceptional ±0.5°C accuracy.

The bright, easy-to-read digital display allows you to set the temperature by turning the handy knob, while the large working surface offers great stability for various applications.


Built to Last, Engineered for Safety

Built to Last, Engineered for Safety
The REC 10 hotplate is a high-performance and safe solution that supports ambitious heating applications.

The hotplate features a robust 10-inch ceramic square plate that is highly resistant against acids, bases, and solvents. Its technopolymer structure is designed to prevent accidental liquid spills from reaching the electronic components.

Cleaning the REC 10 is easy: simply use a damp cloth to remove any residues from the ceramic top plate, ensuring it is always ready for laboratory operations.

Additionally, the hotplate is designed for an extended lifespan and comes with a 3-year warranty (online product registration required) for guaranteed quality assurance.

heating plates
  • HOUSING MATERIAL:
    Aluminum body Technopolymer enclosure
  • PLATE MATERIAL:
    Ceramic
  • TEMPERATURE RANGE
    Room temp. - 550 °C
  • HEATING CONTROL
    Digital
  • HOT PLATE WARNING SYSTEM
    On Display (when the temperature is above 50 °C)
  • TEMPERATURE SETTING RESOLUTION
    1 °C
  • EXTERNAL TEMPERATURE SENSOR CONNECTION
    Pt100 Pt1000 VTF
  • THERMOREGULATION ACCURACY
    ± 1.0 °C (Pt100; Pt1000) ± 0.5 °C (VTF)
