RC 2 lite Chiller
0.00SAR
RC 2 lite
Product Details
Specifications
RC 2 lite

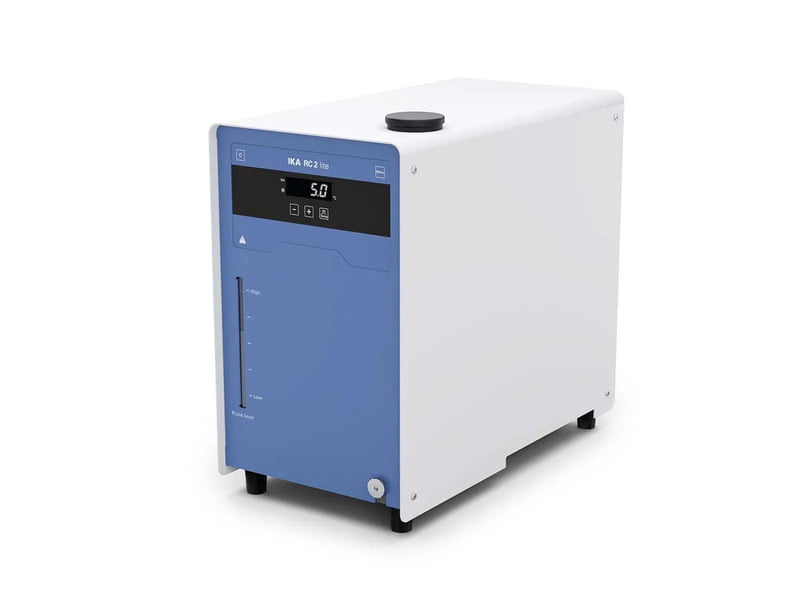

Compact recirculating chiller with powerful 400 W cooling capacity, designed for simple cooling tasks down to -10 °C.
The RC 2 lite is the perfect peripheral device for the cooling of rotary evaporators, reflux condensers or as a cooling source for devices that dissipate heat with the help of a heat exchanger (e. g. double-walled grinding containers, cooled incubators, laboratory reactors, cooling coils).
The easily accessible and easy-to-clean mesh filter (stainless steel) ensure a consistently high cooling capacity over years. Thanks to the low filling volume of just one liter, the RC 2 lite is able to reach low temperatures particularly fast. The large working volume of 2.5 liters enables a high number of external applications without refill of liquids. The filling level in the reservoir can be clearly observed through the large, illuminated sight glass.
The powerful pressure and suction pump enables the simultanous operation of several small applications as well as external applications in open bath vessels in combination with a level controller. Thanks to the natural refrigerant R290, the RC 2 lite is remarkably environmentally friendly and well prepared for the future.
Scope of delivery- RC 2 lite
- Olive for DN 8 hoses (2 pcs.)
Compact recirculating chiller with powerful 400 W cooling capacity, designed for simple cooling tasks down to -10 °C.
The RC 2 lite is the perfect peripheral device for the cooling of rotary evaporators, reflux condensers or as a cooling source for devices that dissipate heat with the help of a heat exchanger (e. g. double-walled grinding containers, cooled incubators, laboratory reactors, cooling coils).
The easily accessible and easy-to-clean mesh filter (stainless steel) ensure a consistently high cooling capacity over years. Thanks to the low filling volume of just one liter, the RC 2 lite is able to reach low temperatures particularly fast. The large working volume of 2.5 liters enables a high number of external applications without refill of liquids. The filling level in the reservoir can be clearly observed through the large, illuminated sight glass.
The powerful pressure and suction pump enables the simultanous operation of several small applications as well as external applications in open bath vessels in combination with a level controller. Thanks to the natural refrigerant R290, the RC 2 lite is remarkably environmentally friendly and well prepared for the future.
Scope of delivery
The RC 2 lite is the perfect peripheral device for the cooling of rotary evaporators, reflux condensers or as a cooling source for devices that dissipate heat with the help of a heat exchanger (e. g. double-walled grinding containers, cooled incubators, laboratory reactors, cooling coils).
The easily accessible and easy-to-clean mesh filter (stainless steel) ensure a consistently high cooling capacity over years. Thanks to the low filling volume of just one liter, the RC 2 lite is able to reach low temperatures particularly fast. The large working volume of 2.5 liters enables a high number of external applications without refill of liquids. The filling level in the reservoir can be clearly observed through the large, illuminated sight glass.
The powerful pressure and suction pump enables the simultanous operation of several small applications as well as external applications in open bath vessels in combination with a level controller. Thanks to the natural refrigerant R290, the RC 2 lite is remarkably environmentally friendly and well prepared for the future.
Scope of delivery
- RC 2 lite
- Olive for DN 8 hoses (2 pcs.)
chillers
- Appliance typeRecirculating chiller
- Class designation acc. DIN 12876I
- Identification according to DIN 12876NFL
- Cooling agentR290
- Cooling agent quantity77 g
- Cooling agent pressure max21 bar
- Cooling capacity (@20°C)400 W
- Cooling capacity (@10°C)350 W
- Cooling capacity (@0°C)250 W
- Cooling capacity (@-10°C)140 W
- Working temperature-10 - room temp. °C
- Operating temperature min.-10 °C
- Operating temperature max. (with external heating70 °C
- Temperature displayyes
- Temperature controlPID
- Working temperature sensorPT1000
- Working temperature displayLED
- Temperature stability DIN 12876±0.5 K
- Display resolution0.1 K
- Set temperature resolution±0.1 K
- Filling volume1 - 3.5 l
- Pump typePressure- / suction pump
- Pump pressure max. (0 liters discharge flow)0.35 bar
- Pressure pump (suction side) (0 liter flow)0.15 bar
- Flow rate max. (0 bar back pressure)18 l/min
- Pump connectionM16x1
- Permissible ON time100 %
- Noise level51 dB(A)
- Dimensions (W x H x D)225 x 385 x 430 mm
- Permissible ambient temperature5 - 32 °C
- Permissible relative humidity80 %
- Protection class according to DIN EN 60529IP 21
- RS 232 interfaceyes
- Power input250 W
