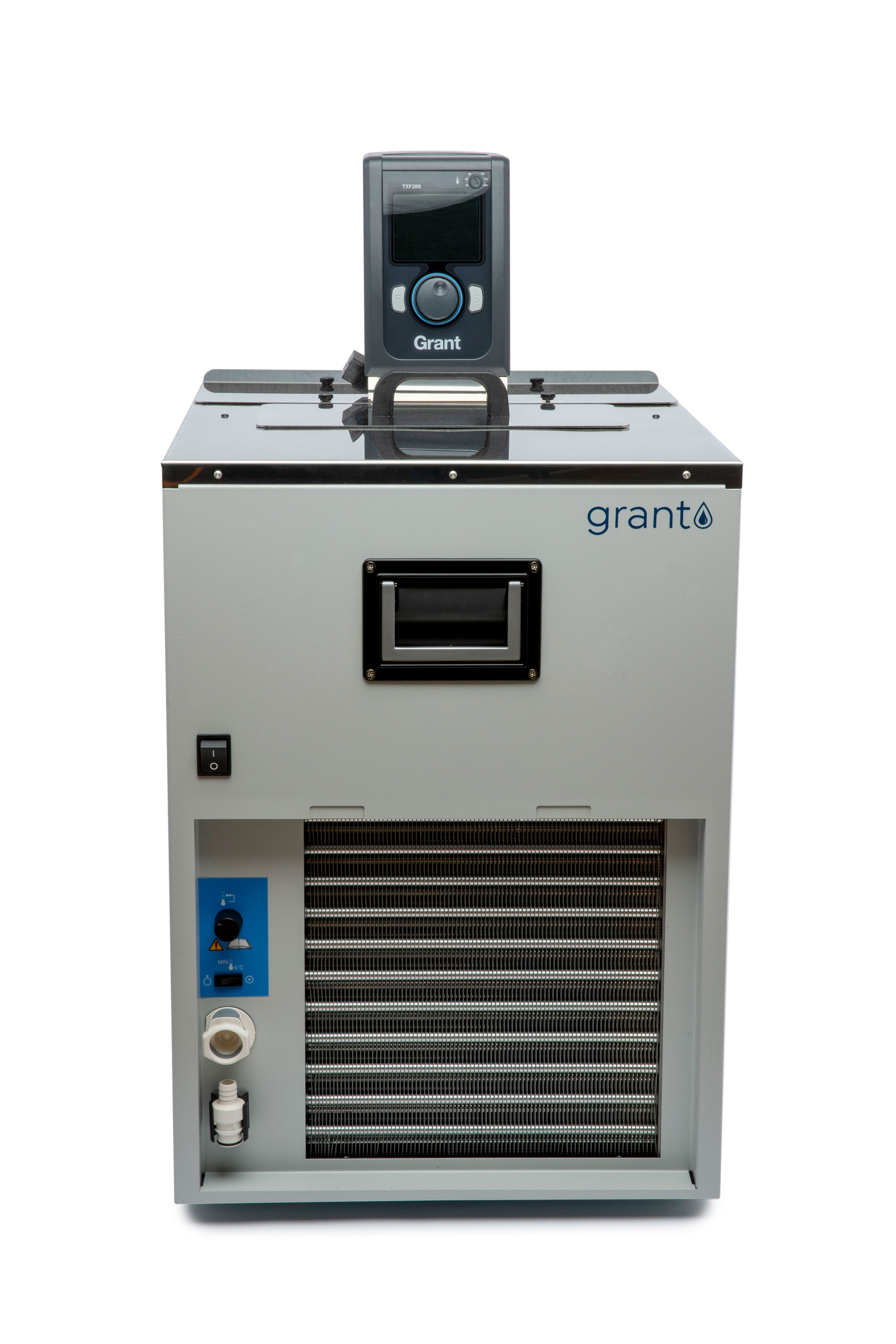

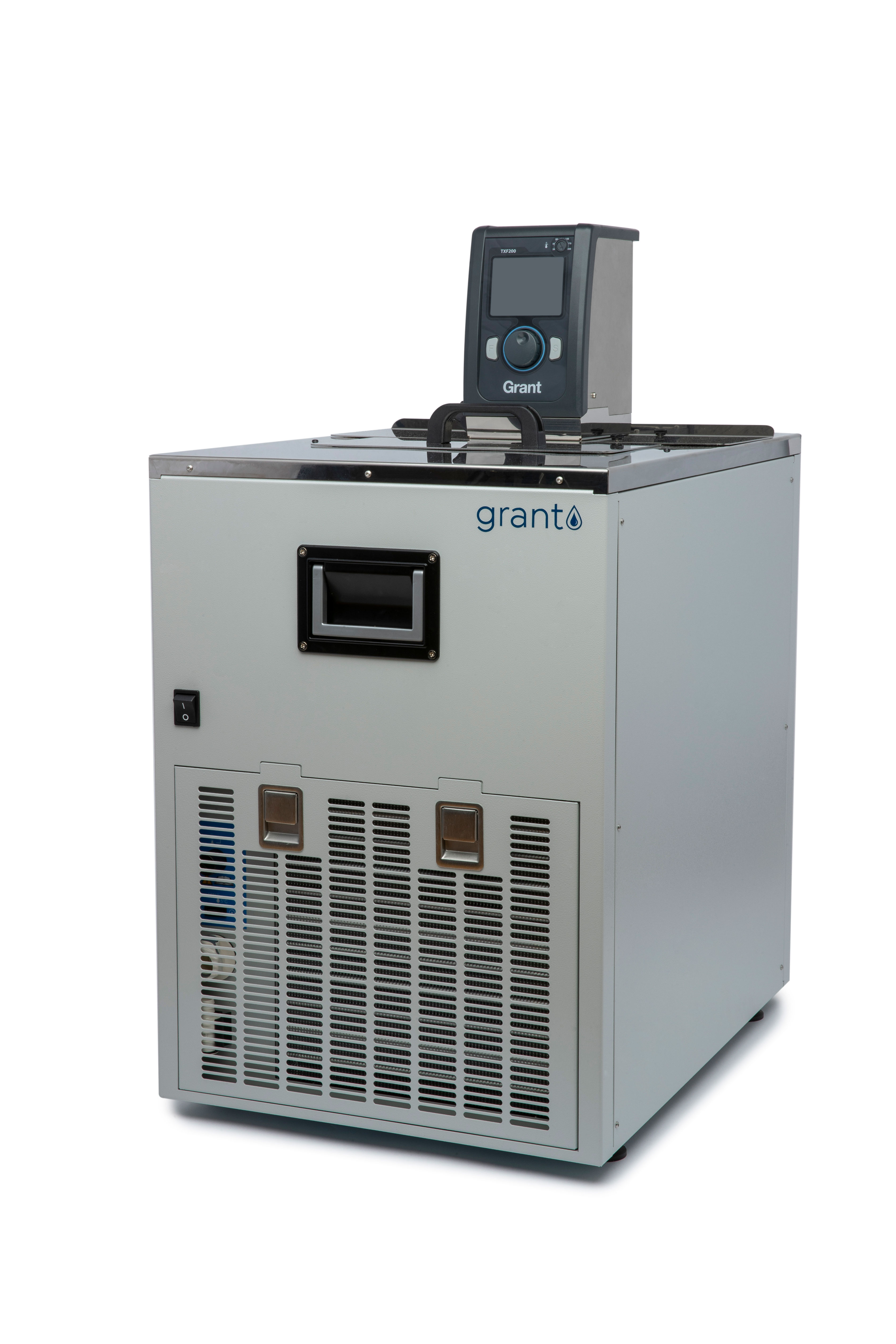

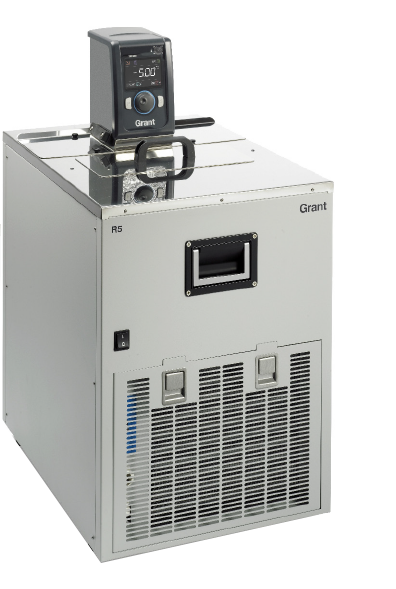

R52 Series Refrigerated Circulating Bath
0.00SAR
R52 Series Refrigerated Circulating Bath
Product Details
Specifications
The Grant R52 refrigerated bath and circulator range provides outstanding performance for routine and sophisticated applications requiring accurate temperature control in the range of -52 to 100°C.
Applications
- University research/teaching - temperature control of external equipment including spectrophotometers & refractometers. Circulation of temperature control fluid to jacketed vessels, cooling crystallisation vessels
- Industrial laboratories - temperature probe calibration, product testing, product QC, temperature control of external equipment.
- University research/teaching - temperature control of external equipment including spectrophotometers & refractometers. Circulation of temperature control fluid to jacketed vessels, cooling crystallisation vessels
- Industrial laboratories - temperature probe calibration, product testing, product QC, temperature control of external equipment.
About
The R52 is a powerful refrigeration unit, which offers a cost-effective and efficient solution for low temperature applications.
The Grant R52 is used with our TXF200 heating circulator, offering a number of features:
- Stability of up to ±0.1°C
- Up to 3 years warranty
- No spill valved front drain
- Programmable
- 12L tank for dynamic temperature change
- Robust construction
- 1.1kW of cooling power
- Range of accessory hosing, connectors, software, additional pumps and temperature probes available
- Manufactured in the UK
Note: The refrigeration unit can be switched off independently of the heating circulator to allow heating only applications. All the refrigeration base units can be used up to a maximum temperature of 100°C.
Input to enable switching of the cooling system by an external device (typically a Grant Advance Optima).
The R52 is a powerful refrigeration unit, which offers a cost-effective and efficient solution for low temperature applications.
The Grant R52 is used with our TXF200 heating circulator, offering a number of features:
- Stability of up to ±0.1°C
- Up to 3 years warranty
- No spill valved front drain
- Programmable
- 12L tank for dynamic temperature change
- Robust construction
- 1.1kW of cooling power
- Range of accessory hosing, connectors, software, additional pumps and temperature probes available
- Manufactured in the UK
Note: The refrigeration unit can be switched off independently of the heating circulator to allow heating only applications. All the refrigeration base units can be used up to a maximum temperature of 100°C.
Input to enable switching of the cooling system by an external device (typically a Grant Advance Optima).
Refrigerated Circulating Bath
- Dimensions (h x d x w)610 x 590 x 414mm
- Capacity12L
- Temperature range-52 to 100ºC
- RefrigerantR404a
- Min/Max liquid level125/180mm
- Cooling power (typical) @20ºC1100W
- Cooling power (typical) @0ºC0W1050W
- Cooling power (typical) @-10ºC800W
- Cooling power (typical) @-20ºC580W
- Cooling power (typical) @-30ºC370W
- Relay control (of refrigeration system or external device)-
- Tank opening120 x 150mm
