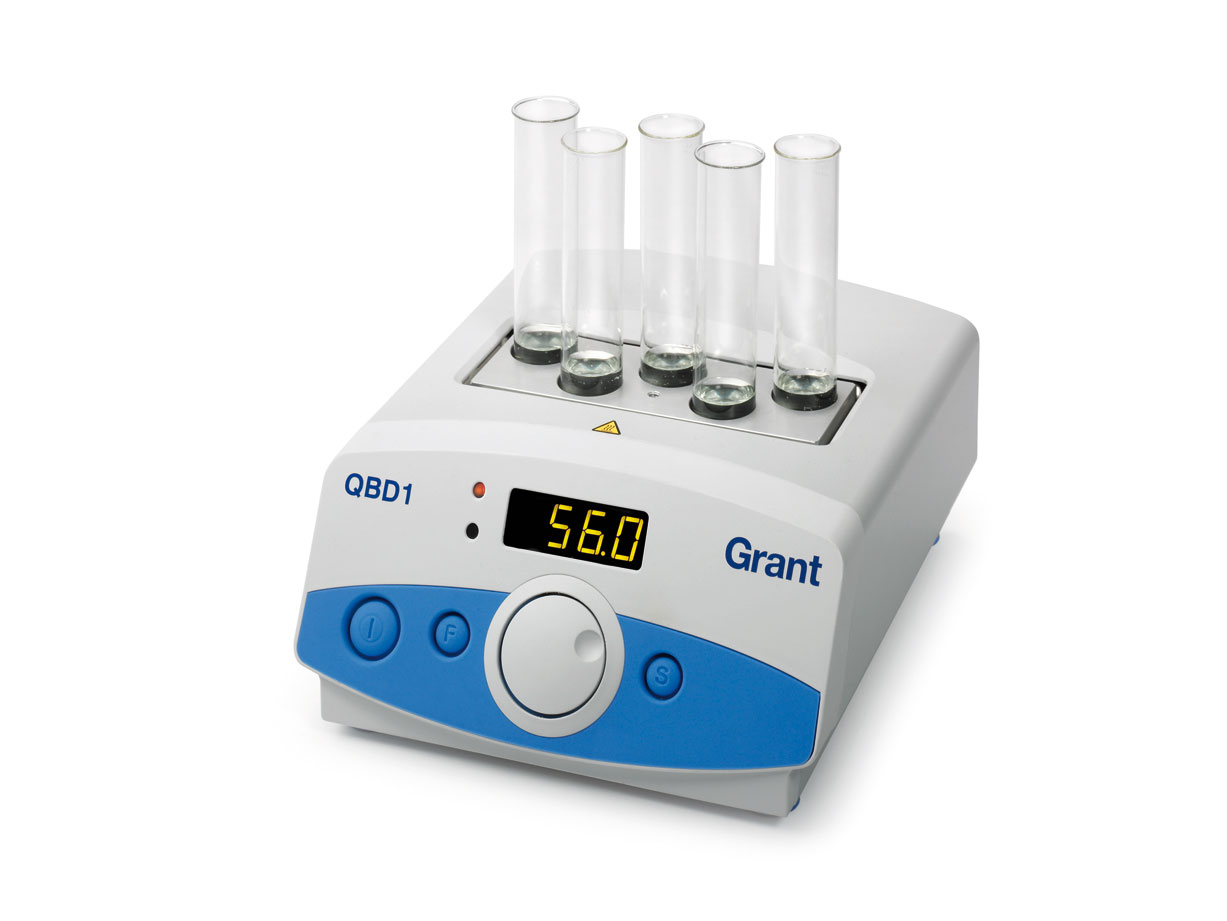

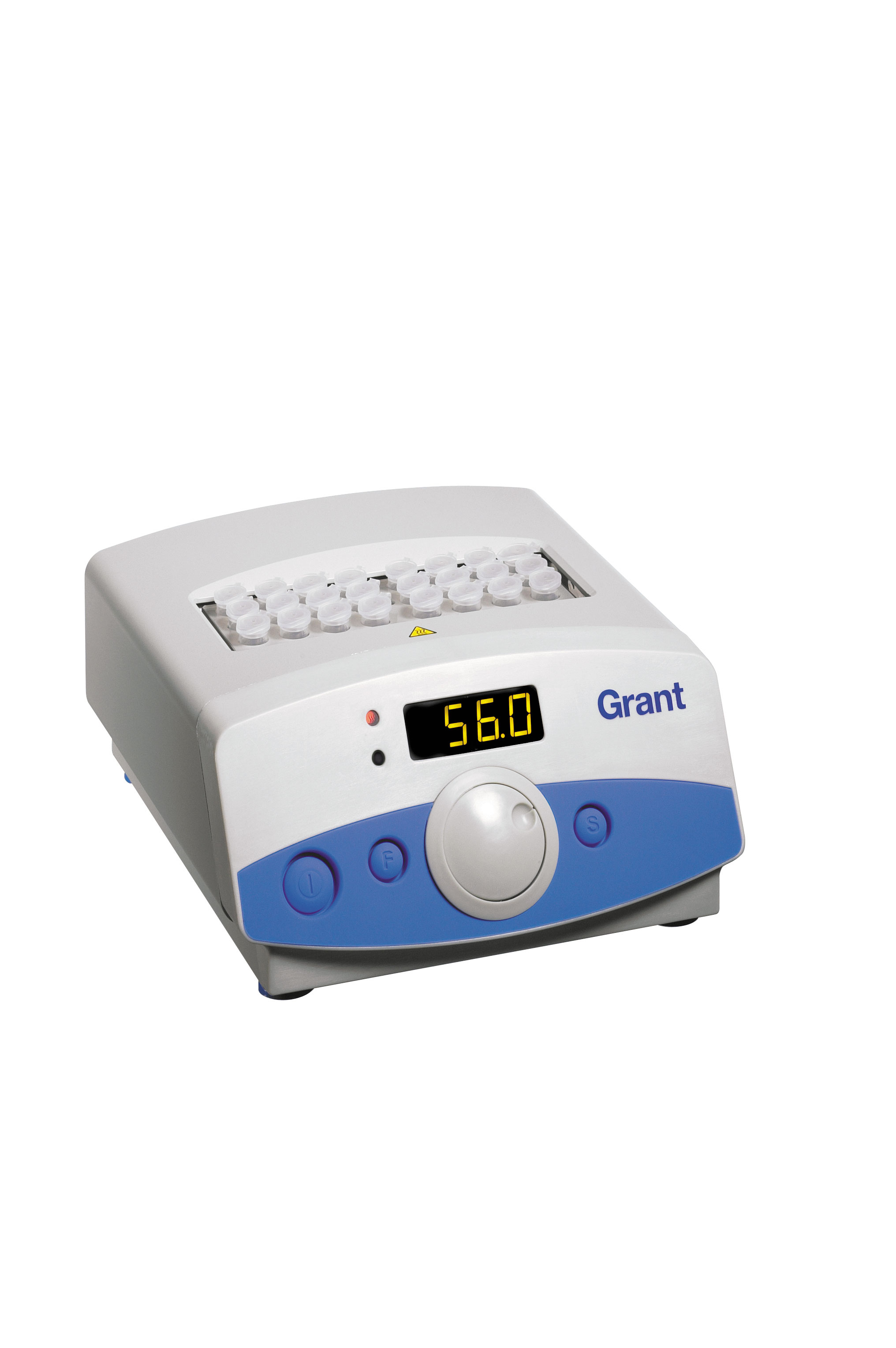

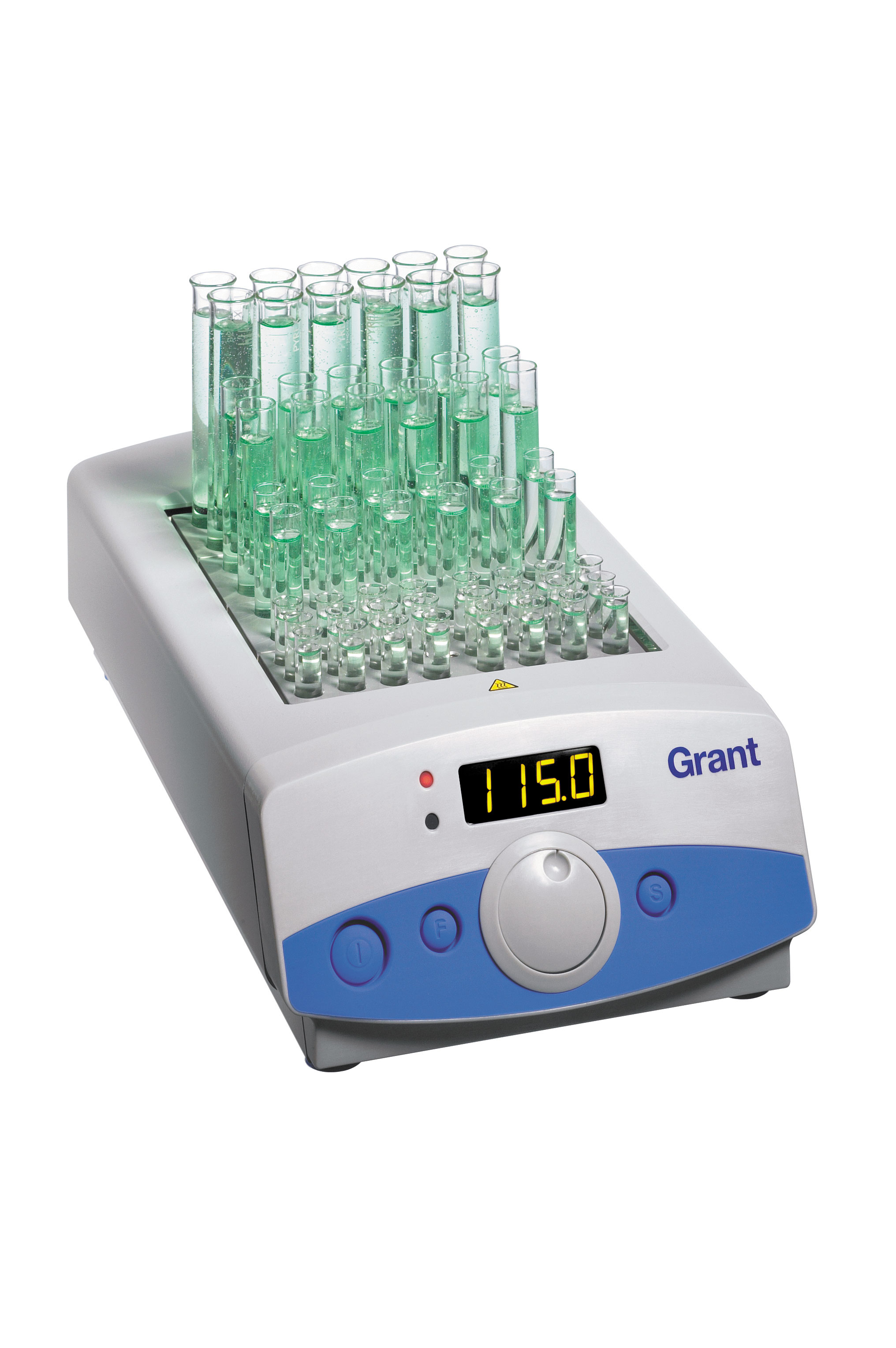

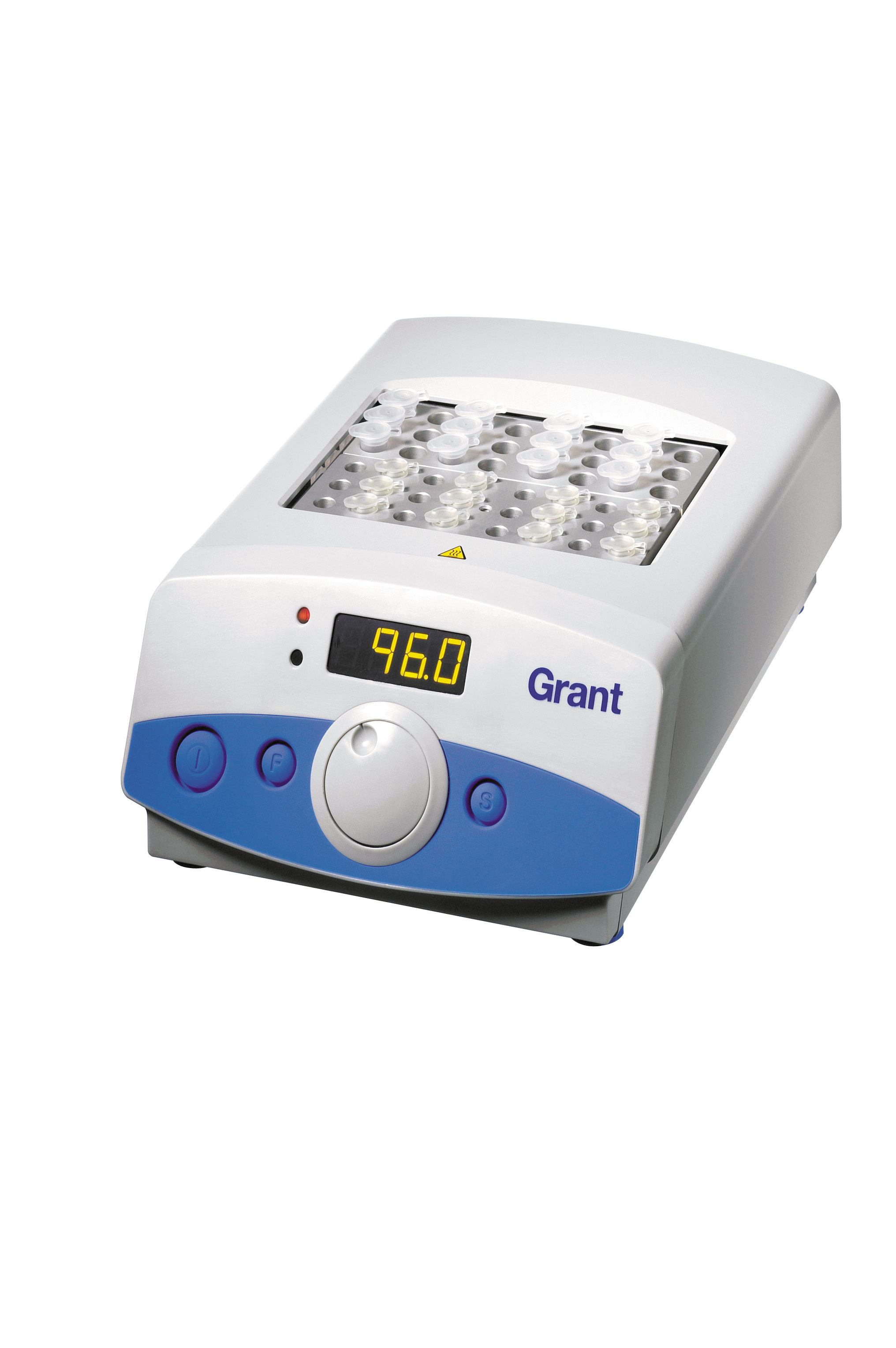

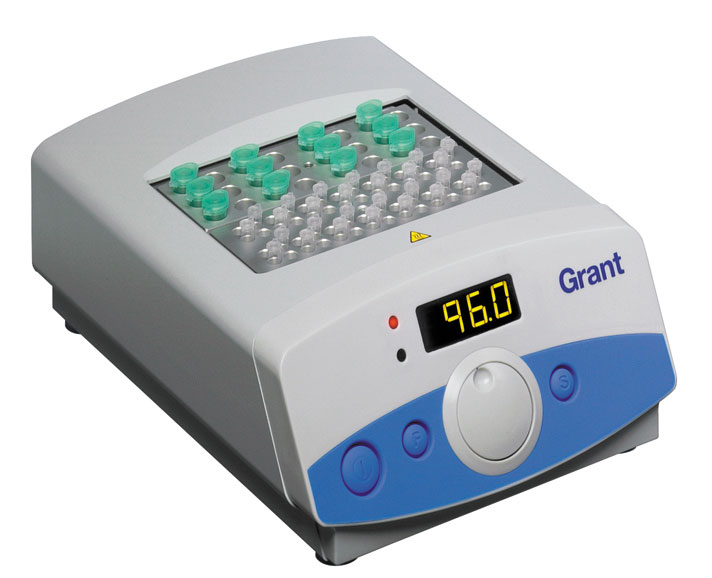

QB Series Dry Block Heating Systems
0.00SAR
The dry block heating systems combines digital temperature control for precision, and uniformity.
Product Details
Applications
- A source of precision temperature control for general, routing applications and sensitive analytical procedures including enzyme digestions, enzyme activity studies and nucleid acid hybridisations.
- A source of precision temperature control for general, routing applications and sensitive analytical procedures including enzyme digestions, enzyme activity studies and nucleid acid hybridisations.
About
Designed for flexibility and efficiency the block heaters come with a choice of standard and custom blocks. The versatile dry block heater series are ideal for general sample heating, research or chemistry applications.
A versatile general purpose system with removable/interchangeable blocks and a comprehensive specification to suit most dry block heating applications in the laboratory.
- Temperature range ambient +5ºC to 130ºC, with rapid heat-up time
- Stability: ±0.1ºC
- Uniformity: ±0.1ºC
- Digital temperature control for optimal precision
- Range of convenient features including alarms, single and dual point calibration, programmed start/stop, 'offset' for known sample temperature variation and choice of external or internal probes
- External probe available for accurate in-sample or in-block temperature control
- Includes block removal tool for easy and safe removal of blocks.
Designed for flexibility and efficiency the block heaters come with a choice of standard and custom blocks. The versatile dry block heater series are ideal for general sample heating, research or chemistry applications.
A versatile general purpose system with removable/interchangeable blocks and a comprehensive specification to suit most dry block heating applications in the laboratory.
- Temperature range ambient +5ºC to 130ºC, with rapid heat-up time
- Stability: ±0.1ºC
- Uniformity: ±0.1ºC
- Digital temperature control for optimal precision
- Range of convenient features including alarms, single and dual point calibration, programmed start/stop, 'offset' for known sample temperature variation and choice of external or internal probes
- External probe available for accurate in-sample or in-block temperature control
- Includes block removal tool for easy and safe removal of blocks.

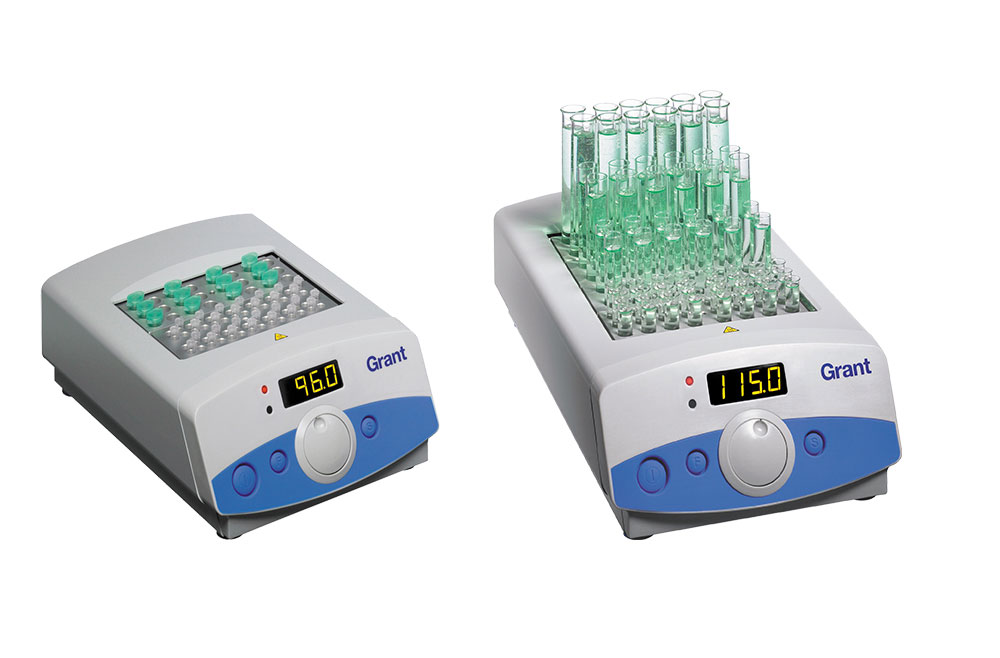

Products in the range
- QBD1
- QBD2
- QBD4
- QBH2
- QBD1
- QBD2
- QBD4
- QBH2
Specifications
- High power heater for fast heat-up: 25ºC to 100ºC in only 15 minutes
- Clear digital display - easy to read from a distance for instant reassurance
- Convenient timer facility, with audible buzzer, for reaction timing and function timing, e.g. delayed heater switch-on/turn-off
- Wide range of interchangeable blocks enables you to mix and match sample tubes as desired - extraction tool supplied as standard for easy and safe removal of blocks.

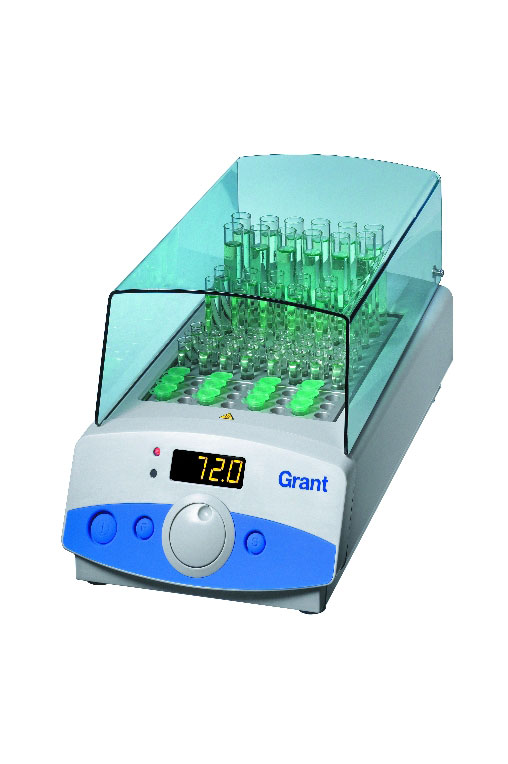

- Optional safety cover - protects samples from contamination and users from accidental contact with hot blocks
- Overtemperature cut-out protects your samples and your workplace
- High quality, robust construction in streamlined coolwall aluminium and chemical-resistant plastic - durable in demanding environments
- Compact footprint to optimise use of benchspace
- Options include blocks for 0.2 ml tubes, strips and 96-well microtitre plates used in molecular biology and biotechnology applications (QBD2 & QBH2 only)
- Three programmable temperature/time segments plus end-of program segments (QBH2 only)
QBD1 QBD2 QBD4 QBH2 Dimensions (h x d x w) 120 x 240 x 200mm 120 x 285 x 200mm 120 x 390 x 200mm 120 x 295 x 200mm Temperature range @37°C Ambient +5 to 130°C Ambient +5 to 130°C Ambient +5 to 130°C Ambient +5 to 200°C Stability @37°C 0.1±ºC 0.1±ºC 0.1±ºC 0.1±ºC Uniformity within the block @37°C 0.1±ºC 0.1±ºC 0.1±ºC 0.1±ºC Uniformity across similar blocks @37°C 0.2±ºC 0.2±ºC 0.2±ºC 0.2±ºC Temperature display • • • • Display resolution 0.1°C 0.1°C 0.1°C 0.1°C Heat up time 25ºC to 100ºC 20 minutes 20 minutes 20 minutes 15 minutes Three programmable temperature/ time segments plus end-of-program segments - - - • Reaction timer, with audible buzzer 1 to 999 minutes 1 to 999 minutes 1 to 999 minutes 1 to 999 minutes Function timer for delay of heater start-up/switch-off Up to 72 hours Up to 72 hours Up to 72 hours Up to 72 hours Off-set adjustment • • • • Two-point calibration of internal and external probes • • • • High/low temperature alarms, settable to within 0.5ºC of set temperature • • • • Fault indication display • • • • Extraction tool for easy and safe block removal • • • • Safety Thermal fuse Thermal fuse Thermal fuse Thermal fuse Heater power - 230V 150W 300W 600W 300W Heater power - 120V 100W 200W 400W 200W Supply voltage 120 or 230V 120 or 230V 120 or 230V 120 or 230V Weight 2.2kg 2.7kg 3.6kg 3kg
- High power heater for fast heat-up: 25ºC to 100ºC in only 15 minutes
- Clear digital display - easy to read from a distance for instant reassurance
- Convenient timer facility, with audible buzzer, for reaction timing and function timing, e.g. delayed heater switch-on/turn-off
- Wide range of interchangeable blocks enables you to mix and match sample tubes as desired - extraction tool supplied as standard for easy and safe removal of blocks.
- Optional safety cover - protects samples from contamination and users from accidental contact with hot blocks
- Overtemperature cut-out protects your samples and your workplace
- High quality, robust construction in streamlined coolwall aluminium and chemical-resistant plastic - durable in demanding environments
- Compact footprint to optimise use of benchspace
- Options include blocks for 0.2 ml tubes, strips and 96-well microtitre plates used in molecular biology and biotechnology applications (QBD2 & QBH2 only)
- Three programmable temperature/time segments plus end-of program segments (QBH2 only)
| QBD1 | QBD2 | QBD4 | QBH2 | |
| Dimensions (h x d x w) | 120 x 240 x 200mm | 120 x 285 x 200mm | 120 x 390 x 200mm | 120 x 295 x 200mm |
| Temperature range @37°C | Ambient +5 to 130°C | Ambient +5 to 130°C | Ambient +5 to 130°C | Ambient +5 to 200°C |
| Stability @37°C | 0.1±ºC | 0.1±ºC | 0.1±ºC | 0.1±ºC |
| Uniformity within the block @37°C | 0.1±ºC | 0.1±ºC | 0.1±ºC | 0.1±ºC |
| Uniformity across similar blocks @37°C | 0.2±ºC | 0.2±ºC | 0.2±ºC | 0.2±ºC |
| Temperature display | • | • | • | • |
| Display resolution | 0.1°C | 0.1°C | 0.1°C | 0.1°C |
| Heat up time 25ºC to 100ºC | 20 minutes | 20 minutes | 20 minutes | 15 minutes |
| Three programmable temperature/ time segments plus end-of-program segments | - | - | - | • |
| Reaction timer, with audible buzzer | 1 to 999 minutes | 1 to 999 minutes | 1 to 999 minutes | 1 to 999 minutes |
| Function timer for delay of heater start-up/switch-off | Up to 72 hours | Up to 72 hours | Up to 72 hours | Up to 72 hours |
| Off-set adjustment | • | • | • | • |
| Two-point calibration of internal and external probes | • | • | • | • |
| High/low temperature alarms, settable to within 0.5ºC of set temperature | • | • | • | • |
| Fault indication display | • | • | • | • |
| Extraction tool for easy and safe block removal | • | • | • | • |
| Safety | Thermal fuse | Thermal fuse | Thermal fuse | Thermal fuse |
| Heater power - 230V | 150W | 300W | 600W | 300W |
| Heater power - 120V | 100W | 200W | 400W | 200W |
| Supply voltage | 120 or 230V | 120 or 230V | 120 or 230V | 120 or 230V |
| Weight | 2.2kg | 2.7kg | 3.6kg | 3kg |
