PUE CY10 Weighing Terminal
PUE CY10 Weighing Terminal

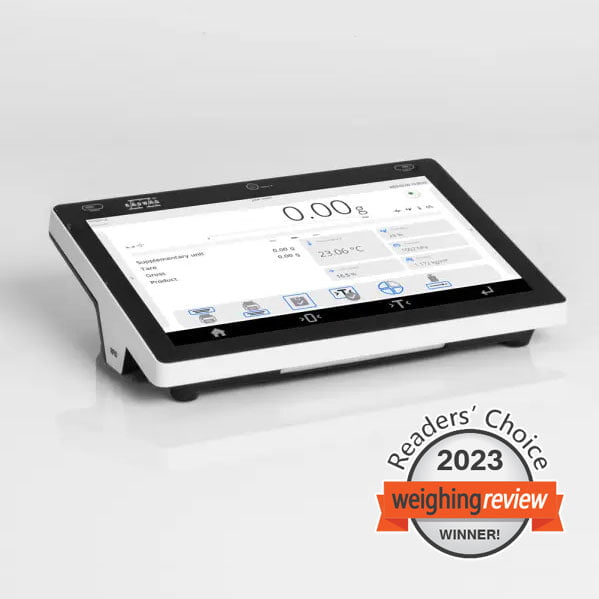

The PUE CY10 terminal is the head of the CY10 series precision balances and 1 load cell platform scales.
SKU - WX-008-0217
Share:
Product Details
The PUE CY10 terminal is the head of the CY10 series precision balances and 1 load cell platform scales. It features a durable housing with an IP 43 ingress protection and numerous communication interfaces, including Ethernet, Hotspot and Wi-Fi® (full list below).
Innovation to Match ELLIPSIS
The PUE CY10 terminal has all the strengths of the 5Y terminal used in the ELLIPSIS series balances, that is:
- 10-inch display
- Uncompromised user verification
- Hotspot
- RFID
- Live Note voice and text notes
- Voice commands for the device
- Measurement history within the Handy Library
- Widgets
- Ambient Light.
Labeling Scale Functionality
The PUE CY10 terminal has been extended with features specific to labeling scales, as it:
- Cooperates with the computer program Label Editor R02
- Is compatible with ZEBRA label printers
- Supports single labels, bulk labels and bulk from bulk labels
- Allows import/export of label designs using a pendrive
- Enables you to assign labels to goods or customers and print a global label.
Software for Special Tasks
The PUE CY10 terminal software has a set of innovative Features that make daily work with the scale easier:
- Cooperation with up to 2 weighing platforms
- Updating statistical data separately for each commodity or globally
- Tare mode expanded to include Dispenser mode capability.
Specifications
- Display10″ graphic colour touchscreen
- Communication interfaceUSB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
- Power supply12—15V DC
- Operating temperature+10 — +40 °C
- HousingABS + aluminium
- Maximum quantity of verification units10000
- Minimum volatge per verification unit0.4µV
- Maximum voltage per verification unit3.25µV
- Minimum load cell impedance50Ω
- Maximum load cell impedance1200Ω
- Load cell excitation voltage5V
- Maximum increase of signal19.5mV
- Connection of load cells4 or 6 wires + shield
- Operating systemLinux
- Processorquad-core Broadcom 1.5 GHz
- Memory16 GB, 2GB RAM
- Multiple rangeYES
- Max number of platformsmax.2
