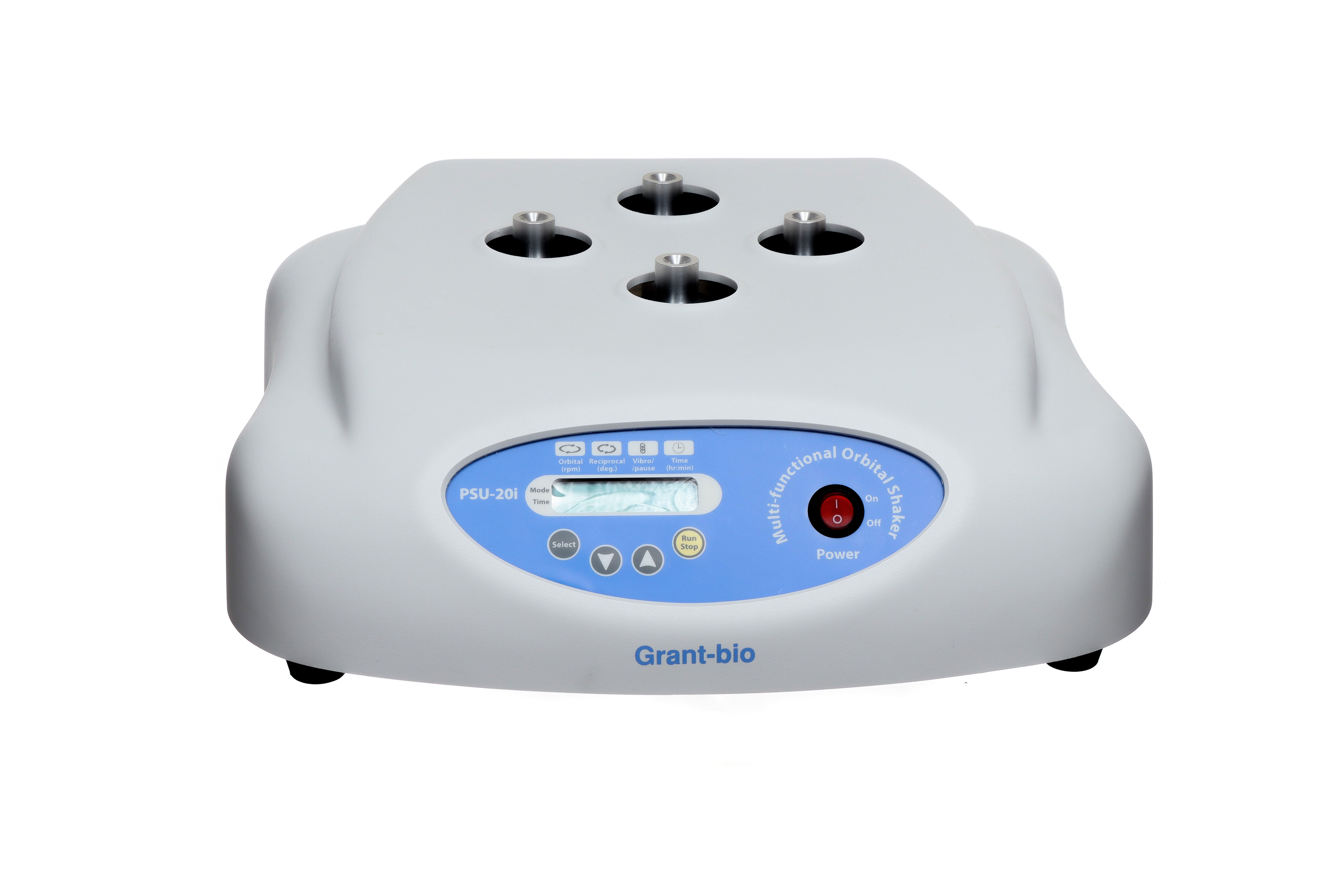

PSU-20i Orbital Shaking Platform
0.00SAR
Orbital platform shaker PSU-20i is a benchtop multifunctional shaking unit.
Applications
- Suitable for use in different laboratories in microbiology, chemistry, immunology, biochemistry and molecular biology.
Product Details
Specifications
About

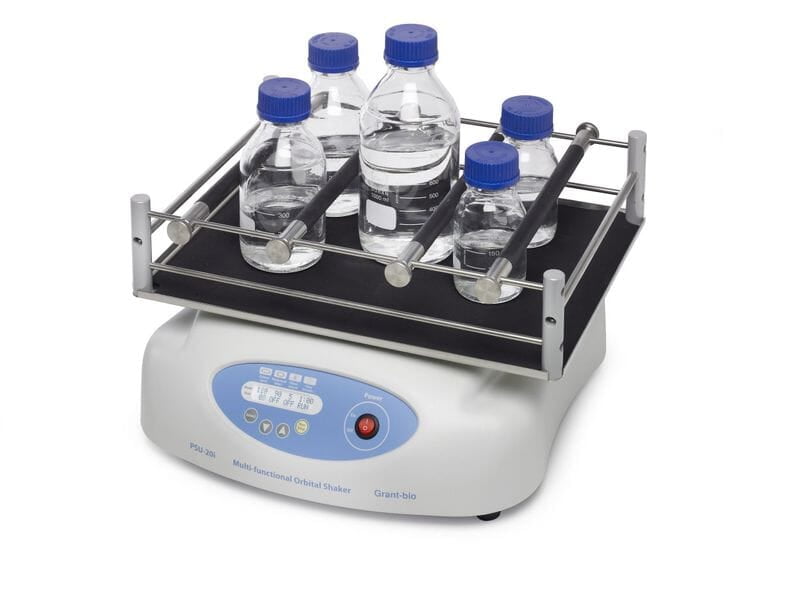

The Grant bio PSU-20i is a powerful and efficient microprocessor controlled multi-functional orbital shaker providing all that is required – rotation, reciprocation and vibration – for thorough mixing in flasks, beakers, Petri dishes and other laboratory vessels.
- Orbital motion, reciprocation and vibration functions all in one product
- Reliable direct drive system
- Fully programmable sequence of functions
- Simple to set up and easy to operate
- Interchangeable platforms, including multi-level platform option
- Loads up to 8 kg
- Orbital and reciprocating speed: 20 to 250 rpm
- Reciprocal rotation: 30 to 360º turning angle
- Vibration: 0 to 5º turning angle, programmable in a burst of 0 to 5 seconds
- All mixing functions – orbital motion, reciprocation and vibration – can be set for continuous or timed operation, or be linked together in different combinations to ensure optimum and accurately repeatable mixing conditions for your application
- Direct drive system
- Brushless motor for longetivity
- Powerful, reliable and exceptionally quiet motor – combines 8 kg loading capacity with consistent even motion and quiet operation
- Very easy to operate, with simple set-up of multi-segment programs via push buttons and the 2-line LCD status display. Microprocessor controls for making corrections without stopping the program.
- Universal detachable platform can accommodate vessels of different shapes and sizes for maximum flexibility.
- Optional flat platform PP-20 with non-slip mat accommodates low profile containers. Can be extended to create up to four levels to maximise the throughput per cycle.
The Grant bio PSU-20i is a powerful and efficient microprocessor controlled multi-functional orbital shaker providing all that is required – rotation, reciprocation and vibration – for thorough mixing in flasks, beakers, Petri dishes and other laboratory vessels.
- Orbital motion, reciprocation and vibration functions all in one product
- Reliable direct drive system
- Fully programmable sequence of functions
- Simple to set up and easy to operate
- Interchangeable platforms, including multi-level platform option
- Loads up to 8 kg
- Orbital and reciprocating speed: 20 to 250 rpm
- Reciprocal rotation: 30 to 360º turning angle
- Vibration: 0 to 5º turning angle, programmable in a burst of 0 to 5 seconds
- All mixing functions – orbital motion, reciprocation and vibration – can be set for continuous or timed operation, or be linked together in different combinations to ensure optimum and accurately repeatable mixing conditions for your application
- Direct drive system
- Brushless motor for longetivity
- Powerful, reliable and exceptionally quiet motor – combines 8 kg loading capacity with consistent even motion and quiet operation
- Very easy to operate, with simple set-up of multi-segment programs via push buttons and the 2-line LCD status display. Microprocessor controls for making corrections without stopping the program.
- Universal detachable platform can accommodate vessels of different shapes and sizes for maximum flexibility.
- Optional flat platform PP-20 with non-slip mat accommodates low profile containers. Can be extended to create up to four levels to maximise the throughput per cycle.
shakers
- Dimensions (h x d x w)130 x 410 x 410mm
- Orbit ø20mm
- Speed (load dependent)20 to 250rpm
- Display2-line 16 character LCD
- Timer, with automatic switch-off1 minute to 96 hours
- External power supplyInput AC 120-230V, 50/60Hz Output DC 12V
- Power consumption40W (3.2A)
- Input voltage12V dc
- Temperature range4 to 40ºC
- Maximum load8kg
- Motion timer (orbital/reciprocal modes)0 to 250sec
- Motion timer (vibration mode)0 to 5sec
