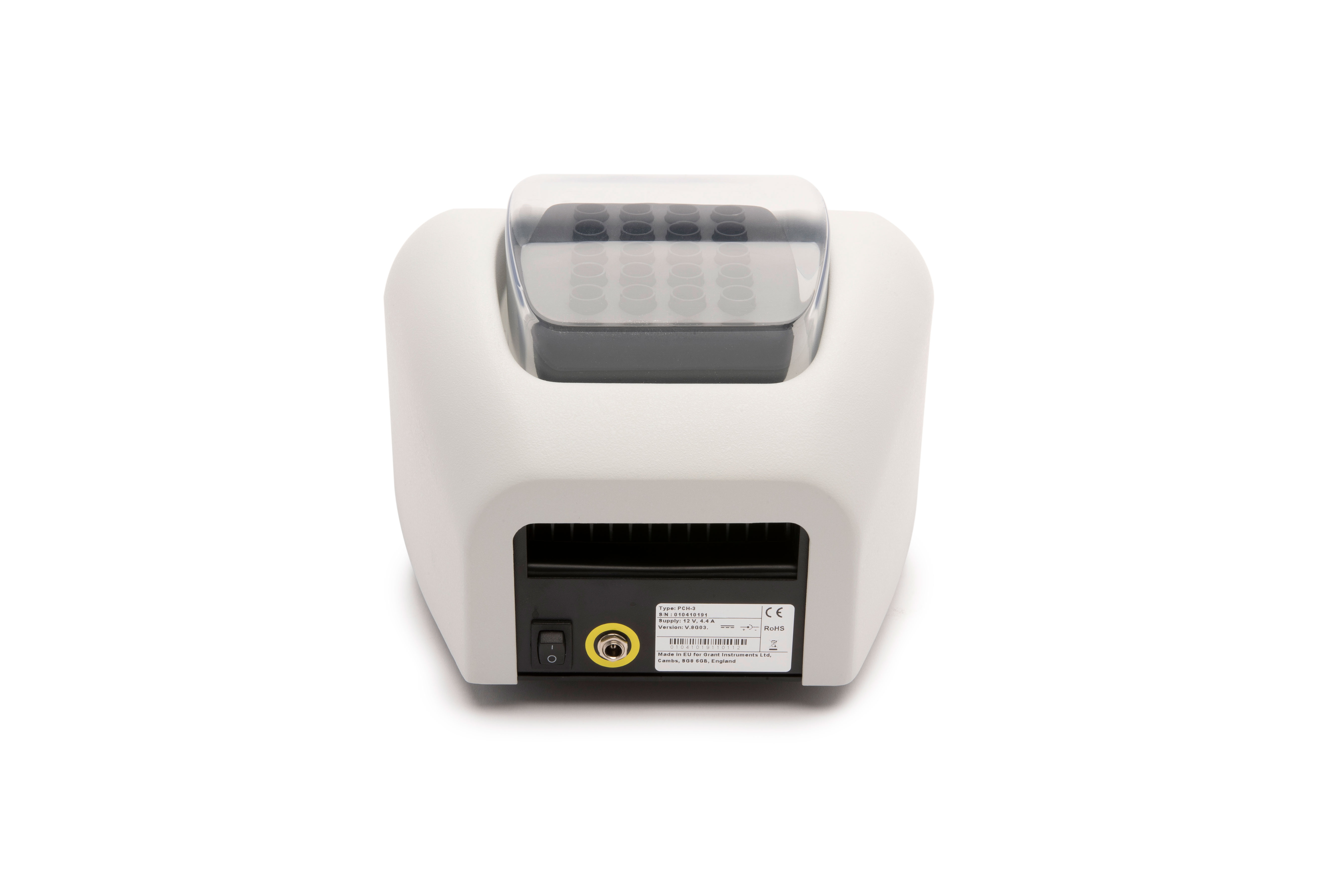

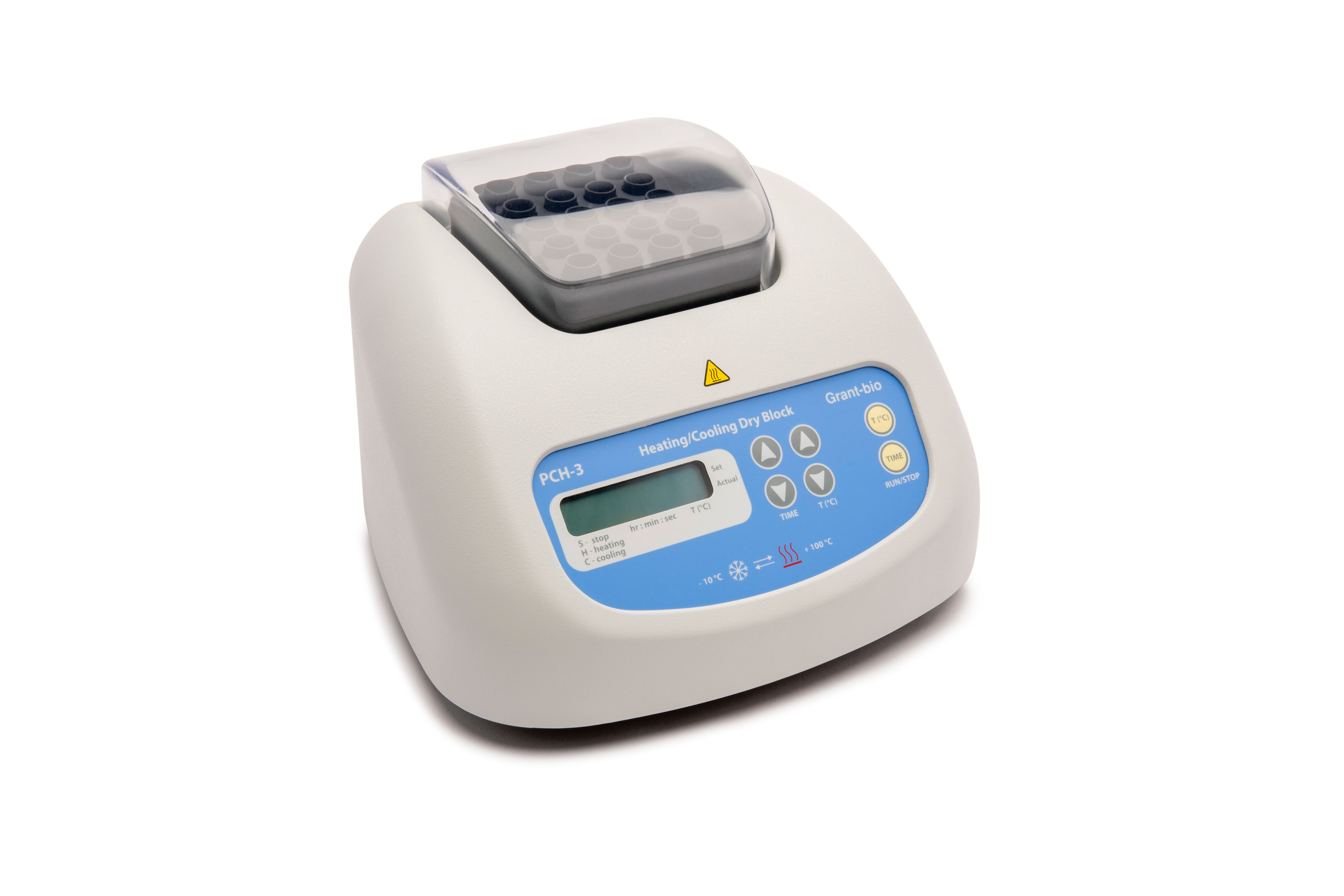

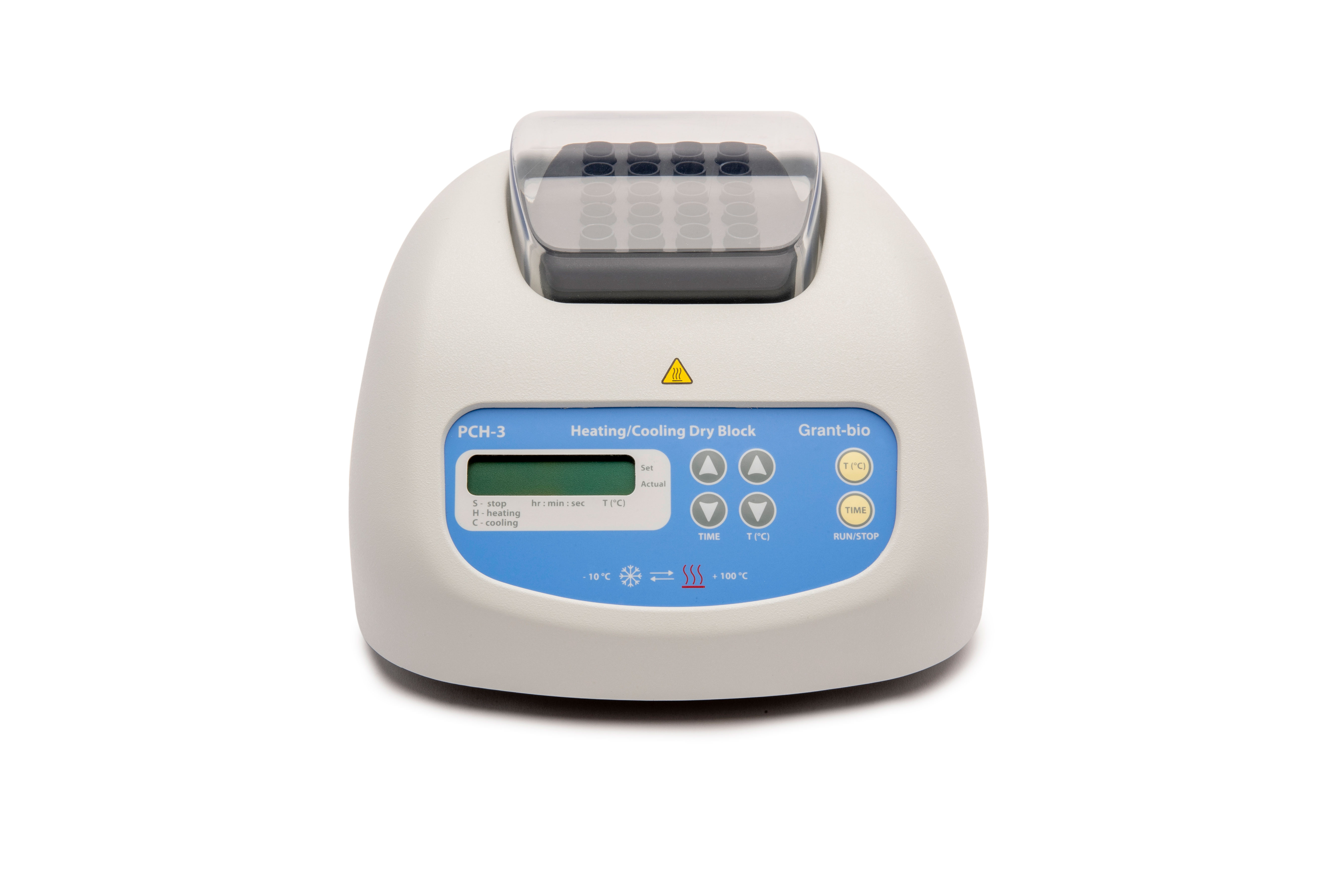

PCH Series Personal Benchtop Cooler / Heater

Applications

• Life science - storing frozen restriction enzymes, nick translations, ligation reactions, restriction digests, protein solubilisation for PAGE, warm incubation of microcentrifuge tubes for hybridisation, enzyme reactions and deactivations.
• Clinical - cooling blood samples prior to coagulation testing.



About

• The ingenious block construction, combined with a powerful Peltier module, produces very rapid cooling and heating for swift change of application and increased flexibility. In addition, the Peltier effect produces efficient cooling and heating for small thermal loads without the use of a refrigeration system. The dry temperature control system maintains a clean working environment, reducing the chance of contamination or sample dilution. A Peltier system, without the vibration of refrigeration or the turbulence of a water bath, is also ideal for all incubations where stable conditions are critical.

  The PCH is a very effective tool for DNA sample preparation for denaturing electrophoresis. The exceptionally rapid heat up enables the denaturation temperature of 95°C to be reached swiftly, the timer will signify denaturation time-up, and the samples can be rapidly cooled again ready to load the gels.

  • Cooling/heating setting range from - 10ºC to 100°C, with very rapid cool down and heat-up times
  • Stability ± 0.1°C, uniformity ±0.25°C at 37°C
  • Choice of two models; capacity for up to 32 microtubes in a combination of two sizes:12 x 1.5 ml plus 20 x 0.5 ml (PCH-1) or up to 20 microtubes of one size: 20 x 1.5 ml tubes (PCH-2), up to a total of 20 x 2 ml microtubes (PCH-3)
  • Convenient integral reaction timer with audible alarm
  • Dry temperature control system maintains a clean and vibration-free working environment

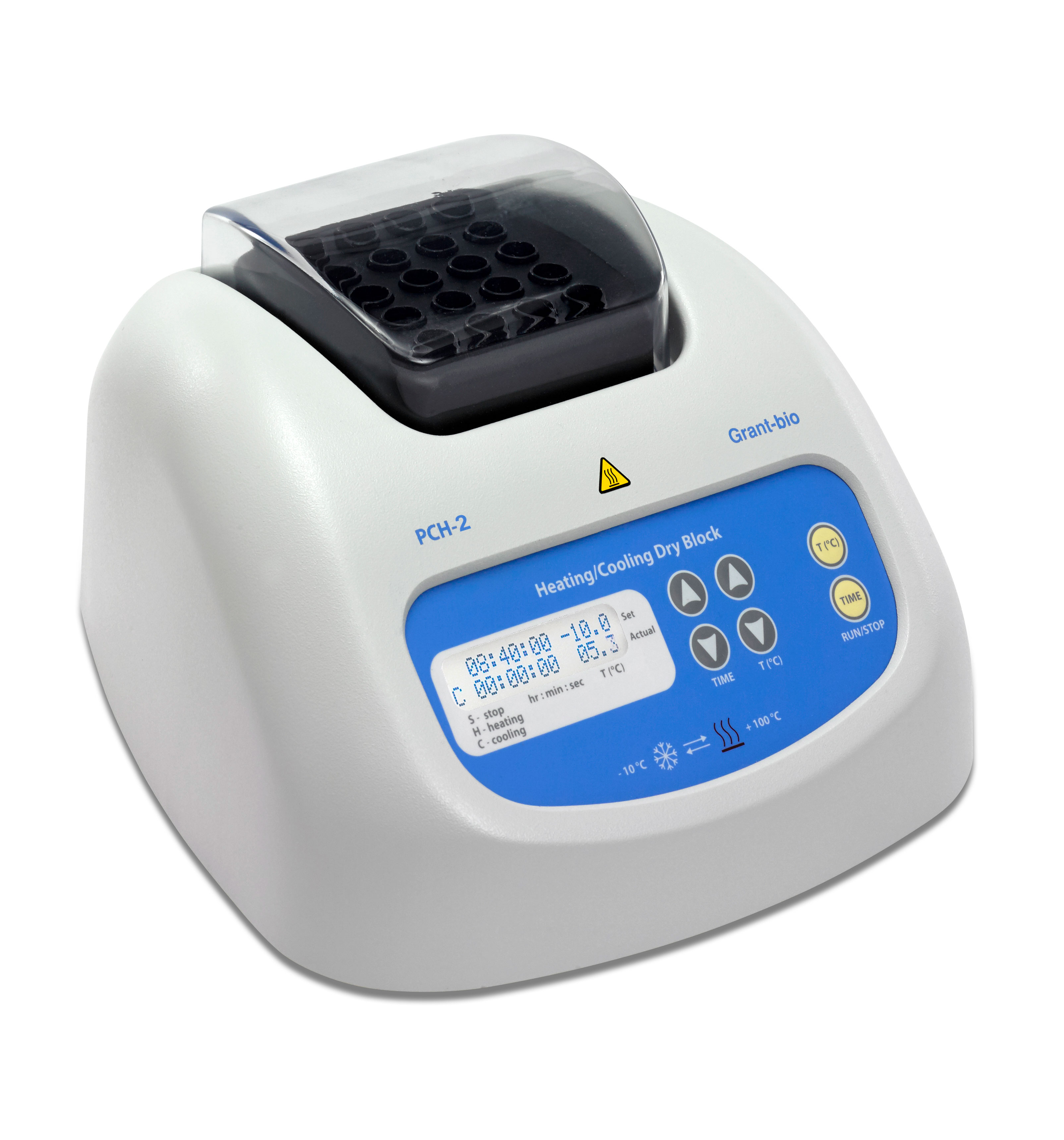

  • A 2-line LCD display clearly indicates both set and actual values for temperature and time. Works in combination with simple push buttons for easy set-up.
  • Flexible tube sizes and rapid heat-up/cool-down times enables swift change of application

  ‍

Products in the range

• • PCH-1
  • PCH-2
  • PCH-3




Specifications

	PCH-1	PCH-2	PCH-3
Dimensions (h x d x w)	165 x 260 x 240mm	165 x 260 x 240mm	165 x 260 x 240mm
Temperature range	-10 to 100°C	-10 to 100°C	-10 to 100°C
Temperature control range	Ambient -30 to 100°C	Ambient -30 to 100°C	Ambient -30 to 100°C
Stability	0.1°C	0.1°C	0.1°C
Setting resolution	0.1°C	0.1°C	0.1°C
Block Dimensions	100 x 110mm	100 x 110mm	100 x 110mm
Heat up time - 25ºC to 37ºC ºC/min	3 ºC/min	3 ºC/min	3 ºC/min
25ºC to 100ºC ºC/min	16 ºC/min	16 ºC/min	16 ºC/min
Cool down time 100ºC to -10ºC ºC/min	28 ºC/min	28 ºC/min	28 ºC/min
25ºC to -10ºC ºC/min	21 ºC/min	21 ºC/min	21 ºC/min
Capacity	12 x 1.5 plus 20 x 0.5ml	20 x 1.5ml	20 x 2.0ml
Display	2 line x 16 character LCD	2 line x 16 character LCD	2 line x 16 character LCD
Timer	1 minute to 96 hours/non-stop	1 minute to 96 hours/non-stop	1 minute to 96 hours/non-stop
External power supply	Input AC 120-230V, 50/60Hz Output DC 12V	Input AC 120-230V, 50/60Hz Output DC 12V	Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption - 230V	55W (4.4A)	55W (4.4A)	55W (4.4A)
Power consumption - 120V
Input voltage	12V dc	12V dc	12V dc
Weight	3.2kg	3.2kg	3.2kg
