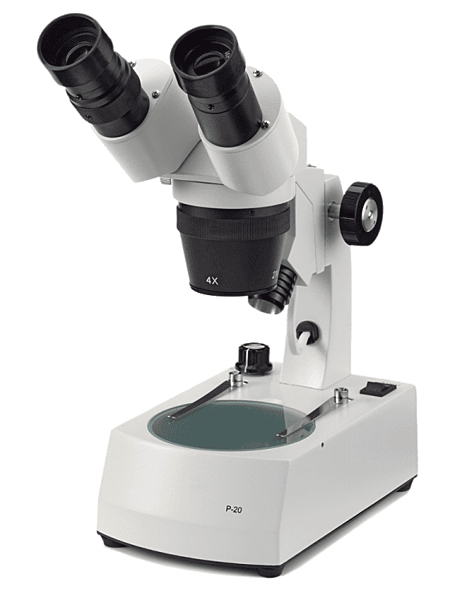

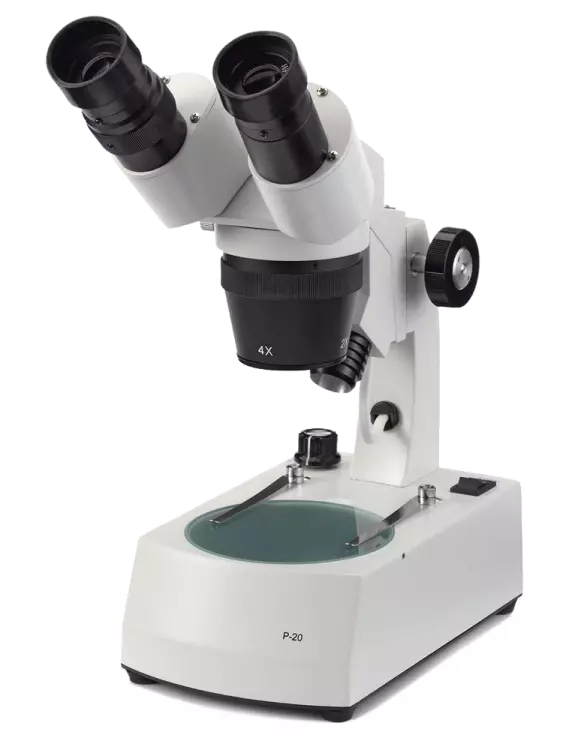

P series
The microscopes of the P series are specifically designed for industrial purposes and come with both dual 10/30x and 20x/40x magnifications and by using of optional eyepieces this can result in magnifications from 5x to 80x
These microscopes are equipped with a rack & pinion stand and a 360° rotatable head
The P series are compact and light weight, ideal microscopes for industrial applications either in a workplace or be taken to any other location
- Binocular models
- Easy to use
- 360° revolving rotatable head with 45° inclined tubes
- Secured WF 10x/20 mm eyepieces
- 10x/30x and 20x/40x magnification in revolving nosepiece
- Robust rack & pinion stand with powerful halogen or LED illumination
- LED illumination with rechargeable batteries for cordless use
- Incident and transmitted illuminations can be used simultaneously
- Light weight; easy to carry to any location
EYEPIECES
Secured pair wide field eyepieces WF10x/20 mm. Supplied with eyecups
HEAD
Binocular head with 45° inclined tubes. One tube supplied with diopter adjustment. Interpupillary distance from 55 to 75 mm
OBJECTIVES
• The P-10 and P-10 LED models are supplied with revolving 1x/3x objectives for total magnification of 10 and 30 times with fields of view from 20 to 6.7 mm
• The P-20 and P20 LED models are supplied with revolving 2x/4x objectives for total magnification of 20 and 40 times with fields of view from 10 to 5 mm.
By using 5x, 15x or 20x eyepieces magnifications from 5 to 80x can be achieved
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
STAND
Robust pillar stand with 35 mm coarse adjustment. Supplied with white/black object plate and two object clamps
ILLUMINATION
The P-10 and P-20 models are supplied with 10 W 12 V halogen transmitted and incident illumination and internal power supply. Both illuminators can be operated independently or simultaneously
The P-10 LED and P-20 LED models are supplied with high power LED transmitted and incident illumination. With three rechargeable batteries for maximum 35 hours continuous cordless operation. Both illuminators can be operated independently or simultaneously
CAMERAS
Euromex offers a wide range of industrial and laboratory grade cameras. For P series, the camera replaces one of the eyepieces
PACKAGING
Supplied with pair of eyecups, power cord (external mains plug-in adapter for LED models), dust cover, a spare fuse and user manual (and spare bulb for halogen models). All packed in a polystyrene box
