Overhead Track Scales Max: 300 / 600 kg d: 0.1 / 0.2 kg
0.00SAR
H315.2K.300/600 300/600Overhead Track Scale
Maximum capacity [Max]: 300 / 600 kg
Readability [d]: 0.1 / 0.2 kg
Product Details
Specifications

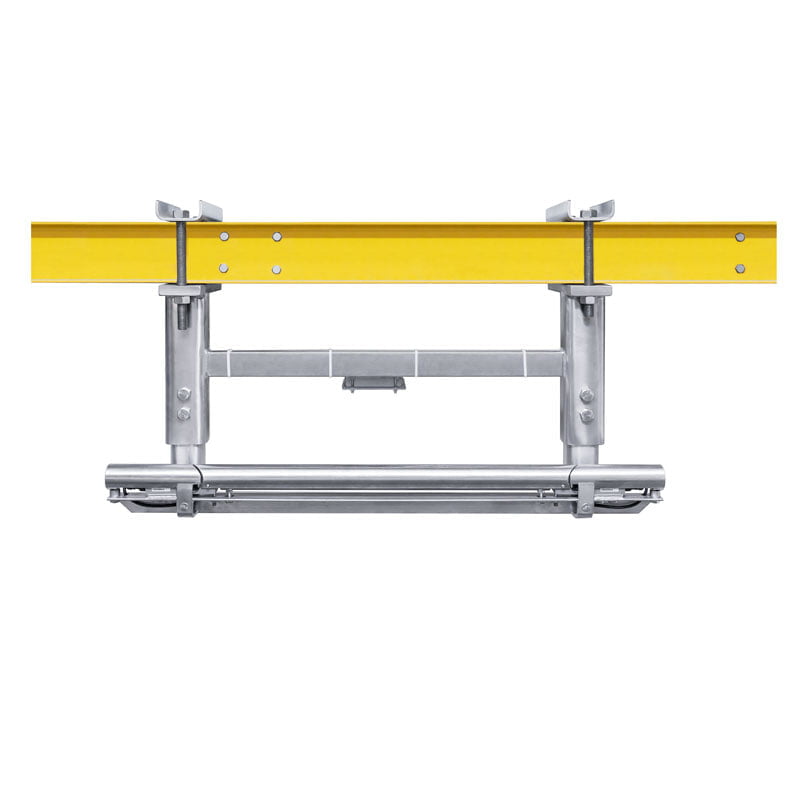

Overhead track scale H315 series is designed for weighing half carcass and porkhalf which are transported on scale’s track. The weighing process starts when a roller with measured load enters a measuring section of the track. The load cells are installed lengthwise to the weighing track which is fixed with spherical mandrels. Such design eliminates tensions in the construction.
Scales can cooperate with carcass grading equipment.

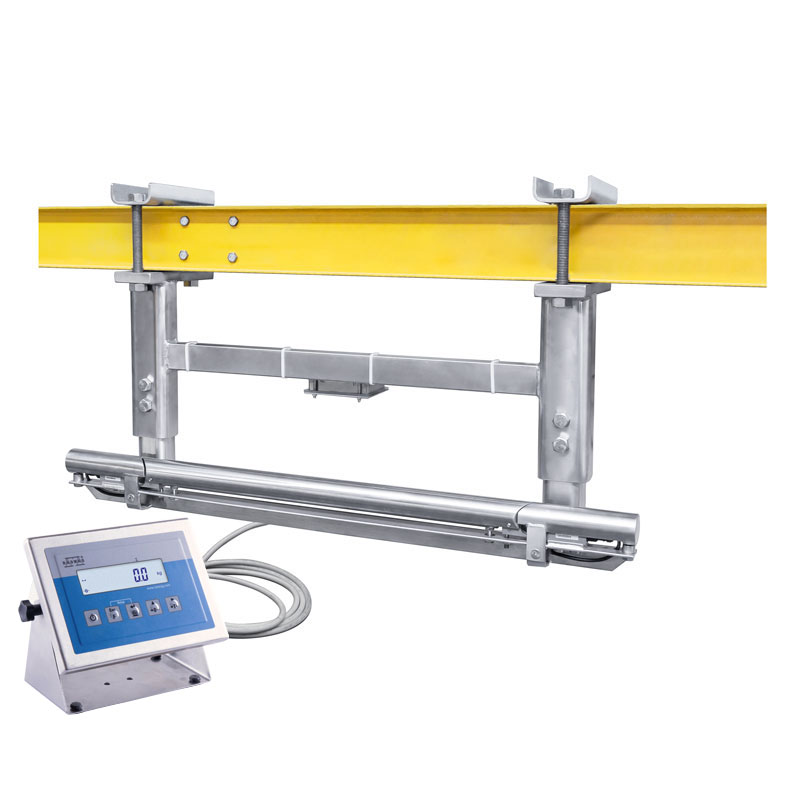

The H315 series is manufactured either in galvanized or in stainless steel version, as dual range weighing instruments. They are equipped with a stainless steel backlit LCD indicator PUE H315 installed on a cable.
Scales can cooperate with carcass grading equipment.
The H315 series is manufactured either in galvanized or in stainless steel version, as dual range weighing instruments. They are equipped with a stainless steel backlit LCD indicator PUE H315 installed on a cable.
Balance
- Maximum capacity [Max]300 / 600 kg
- Minimum load2 kg
- Readability [d]0.1 / 0.2 kg.
- Tare range-600 kg
- OIML ClassIII
- DisplayLCD (backlit)
- Power supply100 – 240 V AC 50/60 Hz
- Operating temperature-10 — +40 °C
- Relative humidity10% — 85% RH no condensation
- Operation time on batteriesmax 7h
- Optional interfacesRS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
- Detection line spanL= 800 mm (min. 200 mm)
- Constructiongalvanized
