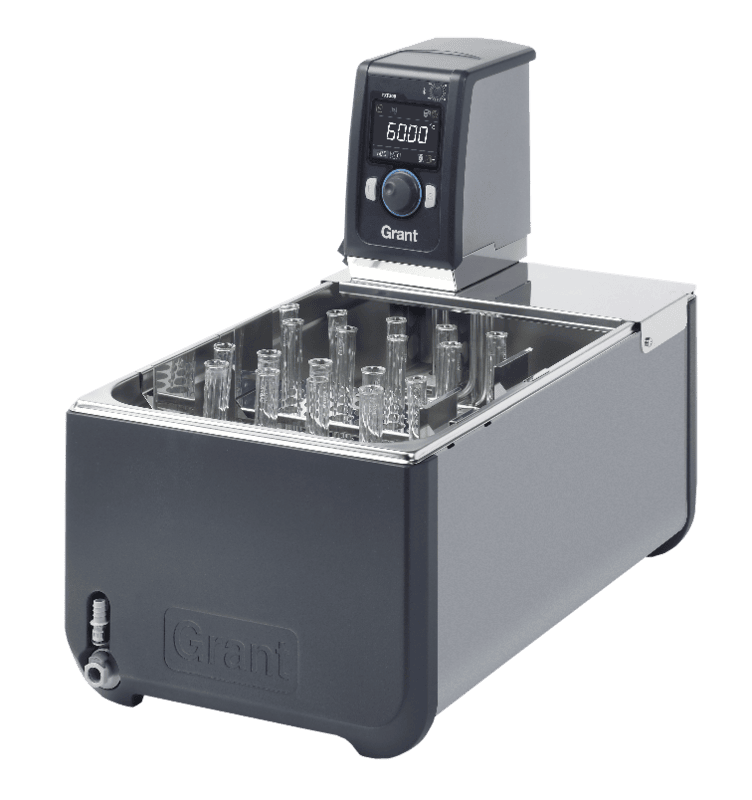

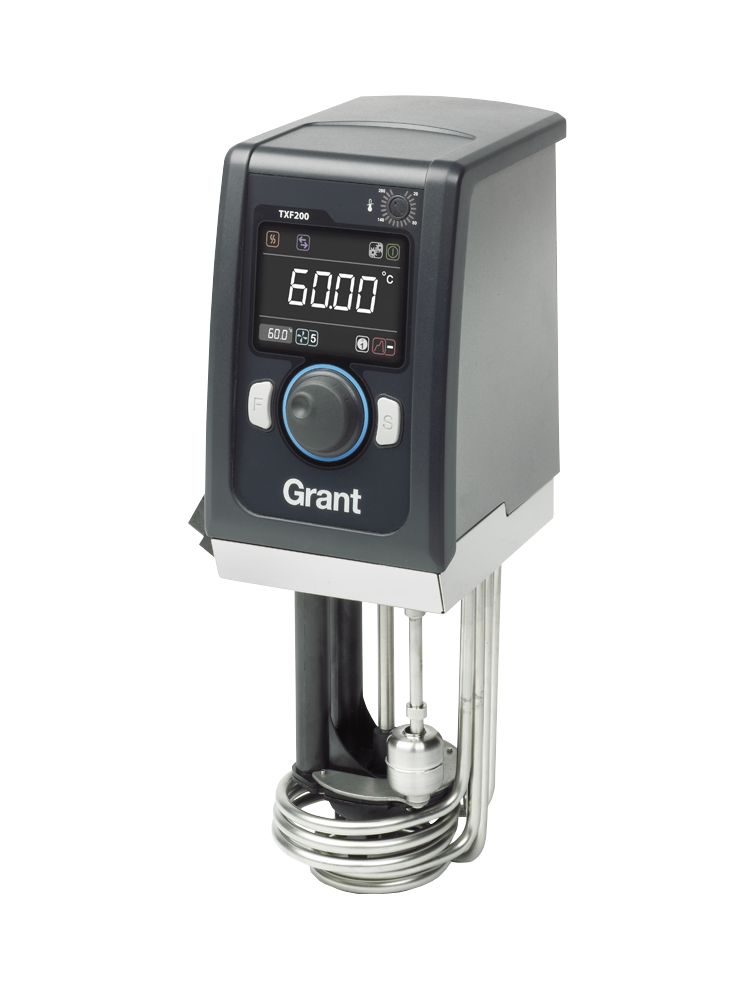

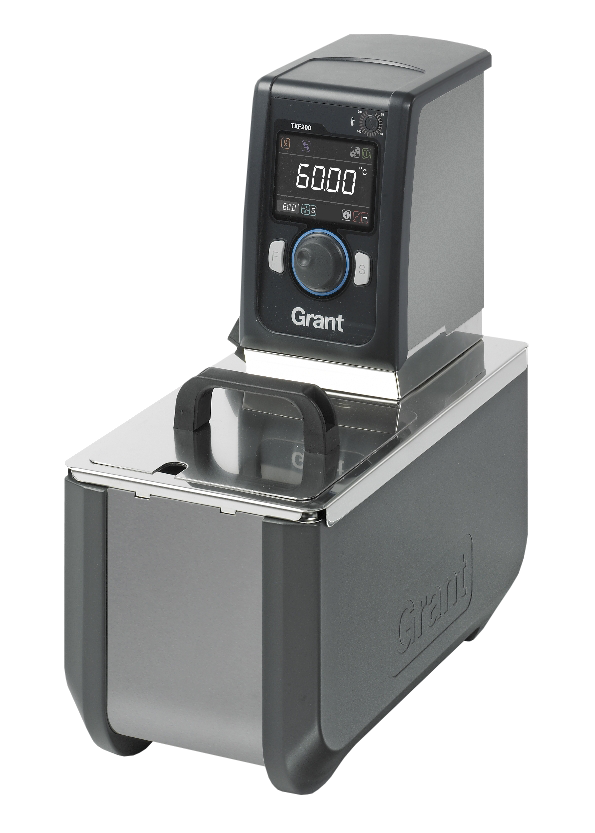

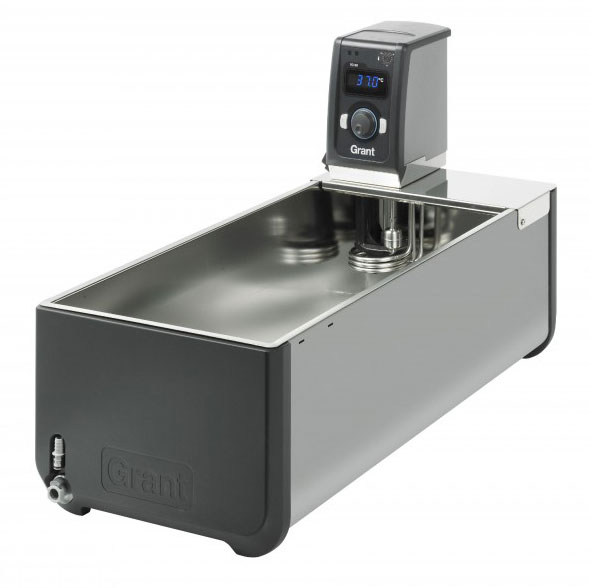

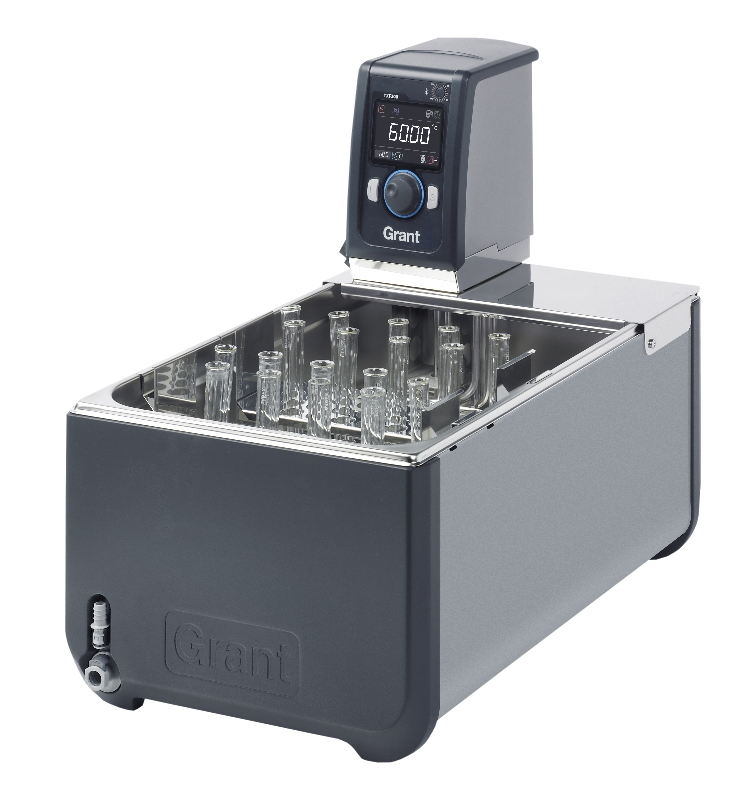

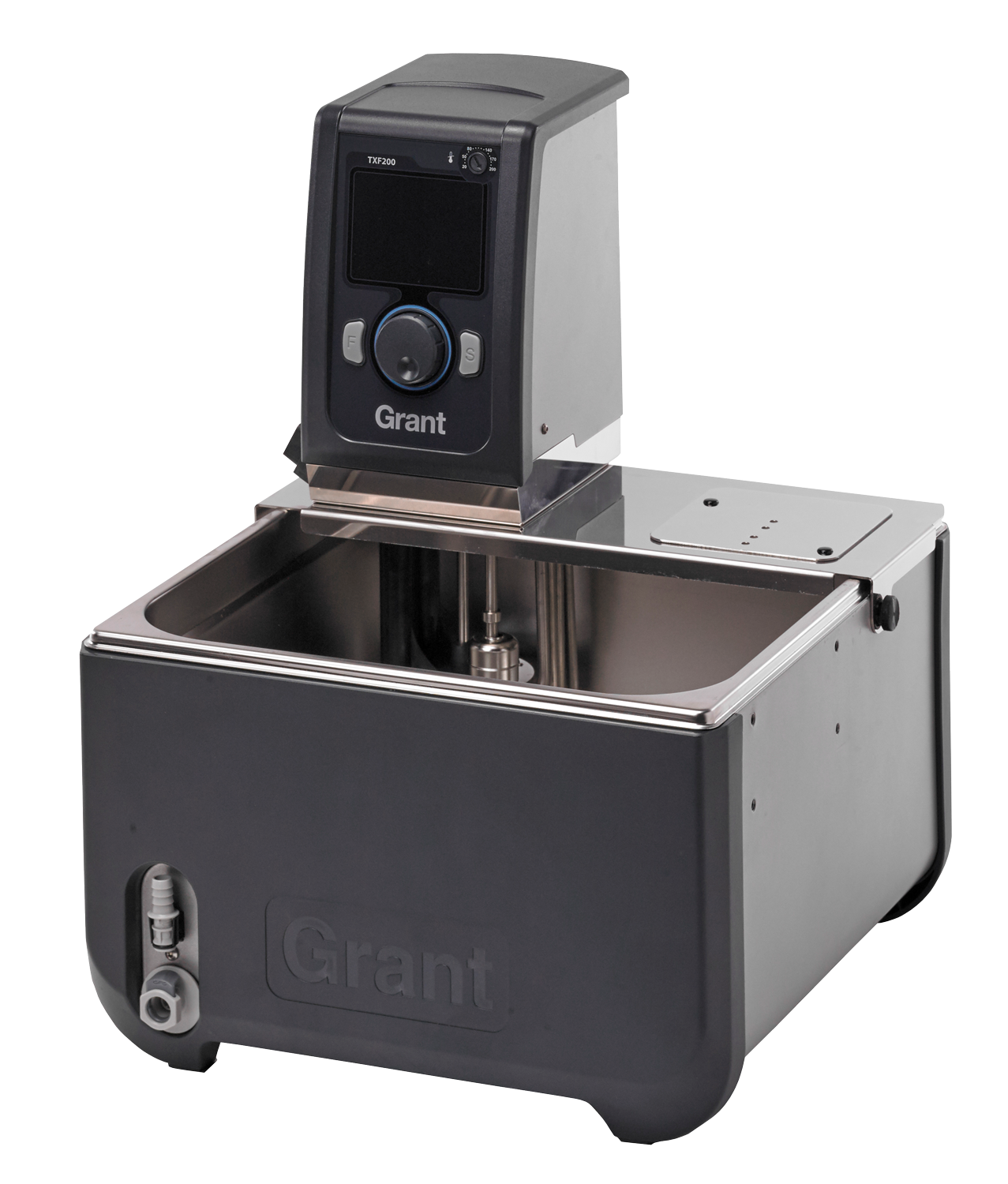

Optima TXF200 Heated Circulating Bath
0.00SAR
The Grant TXF200 series of digital heating circulating baths for sophisticated applications requiring complex programming and/or ultra-precise temperature control in the range of -15°C to 200°C.
Product Details
Specifications
Applications
- Industrial labs - thermostat calibration, haze analysis (brewing), temperature probe calibration and material testing
- University research - temperature control of external equipment such as spectrophotometers and refractometers
- Circulation of temperature control fluid to jacketed vessels
- Industrial labs - thermostat calibration, haze analysis (brewing), temperature probe calibration and material testing
- University research - temperature control of external equipment such as spectrophotometers and refractometers
- Circulation of temperature control fluid to jacketed vessels
About
The TXF200 heating circulator can be used in combination with any Grant stainless steel or with a T-CLAMP for independent use of virtually any vertical sided tank.
- Cooling/heating range -15°C to 200°C
- Cooling achievable with optional immersion cooler (see accessory options)
- Stability ±0.01ºC / Uniformity ±0.05ºC
- Tank options 5L to 38L
- Powerful integral pump for external fluid circulation
- Large, bright full colour display with a choice of 5 languages
- 5 point user calibration
- Low-liquid detection (float switch)
- Memory capacity for 10 programs with 100 segments
Relay output to enable control of an external device, typically a Grant refrigerated chiller or an external alarm.
The TXF200 heating circulator can be used in combination with any Grant stainless steel or with a T-CLAMP for independent use of virtually any vertical sided tank.
- Cooling/heating range -15°C to 200°C
- Cooling achievable with optional immersion cooler (see accessory options)
- Stability ±0.01ºC / Uniformity ±0.05ºC
- Tank options 5L to 38L
- Powerful integral pump for external fluid circulation
- Large, bright full colour display with a choice of 5 languages
- 5 point user calibration
- Low-liquid detection (float switch)
- Memory capacity for 10 programs with 100 segments
Relay output to enable control of an external device, typically a Grant refrigerated chiller or an external alarm.
Products in the range
- TXF200-ST5 - 5 L
- TXF200-ST12 - 12 L
- TXF200-ST18 - 18 L
- TXF200-ST26 - 26 L
- TXF200-ST38 - 38 L
- TXF200-ST5 - 5 L
- TXF200-ST12 - 12 L
- TXF200-ST18 - 18 L
- TXF200-ST26 - 26 L
- TXF200-ST38 - 38 L
water baths
- Dimensions (h x d x w)342 x 172 x 141mm
- Stability (DIN 12876) @70ºC0.01±ºC
- Uniformity (DIN 12876) @70ºC0.05±ºC
- Setting resolution0.1ºC (0.01 with Labwise®)
- DisplayFull colour QVGA TFT
- Timer function1 minutes to 99 hours 59 minutes
- No. of temperature presets3
- Re-calibration points5
- Socket for external probe (TXPEP, TXSEP)-
- Communications interfaceUSB, RS232
- ProgrammableDirect via user interface or remote via PC/ laptop 10 programs/ 100 segments
- Relays1
- Safety – over temperatureAdjustable cut-out
- Fluid level – float-
- Language optionsEN, FR, DE, IT, ES
- Alarms (can be configured to switch a relay)High and low
- Heater power – 230V1840W
- Electrical power – 230V2000 (50-60Hz)
- Electrical power – 120V1445W
- Height above tank rim200mm
- Depth below tank rim145mm
- Maximum pressure (water)530mbar
- Maximum flow (water)22L/min (adjustable flow rate)
- Pump connector 6mm boreFits 9mm inner diameter tubing
- Pump connector 9mm boreFits 15mm inner diameter tubing
- Weight2.6kg
