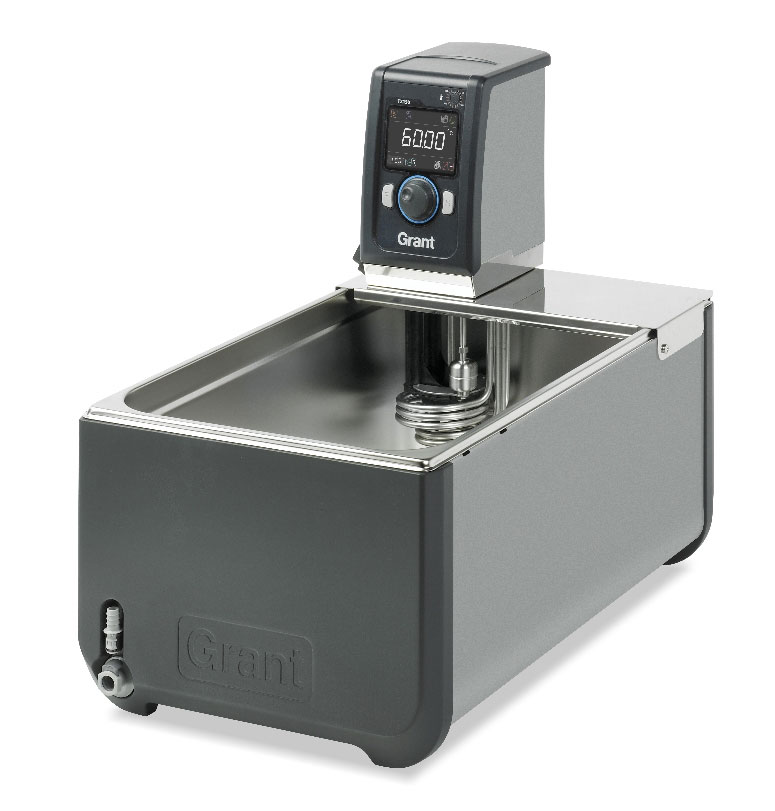

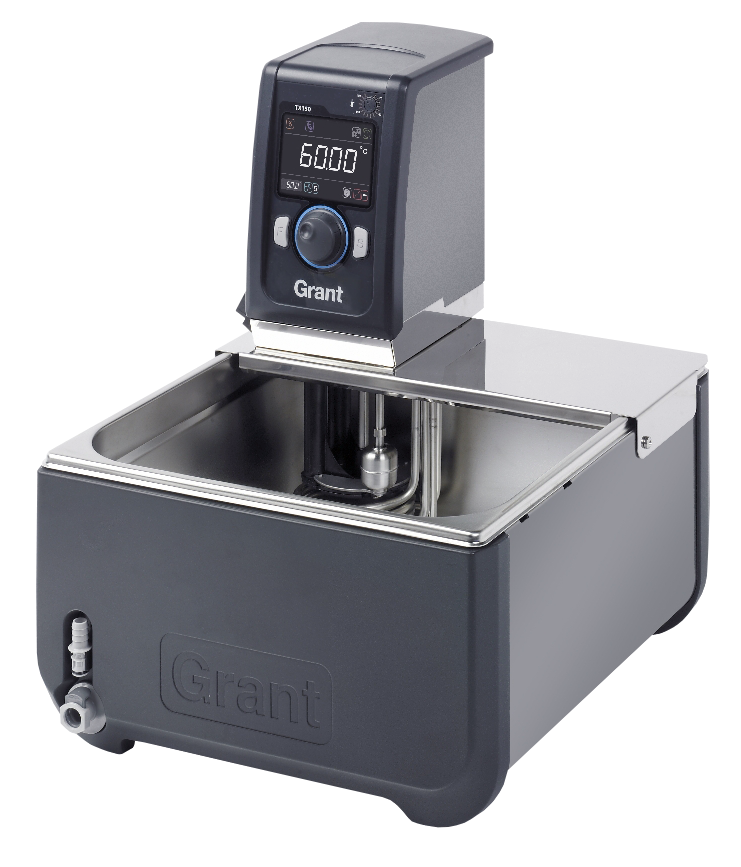

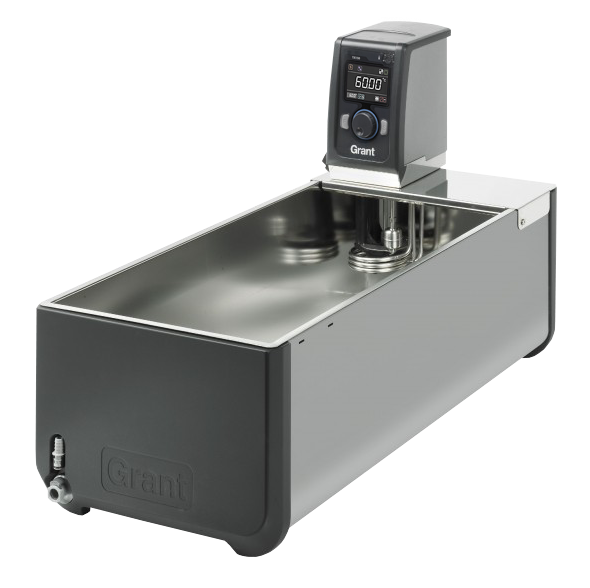

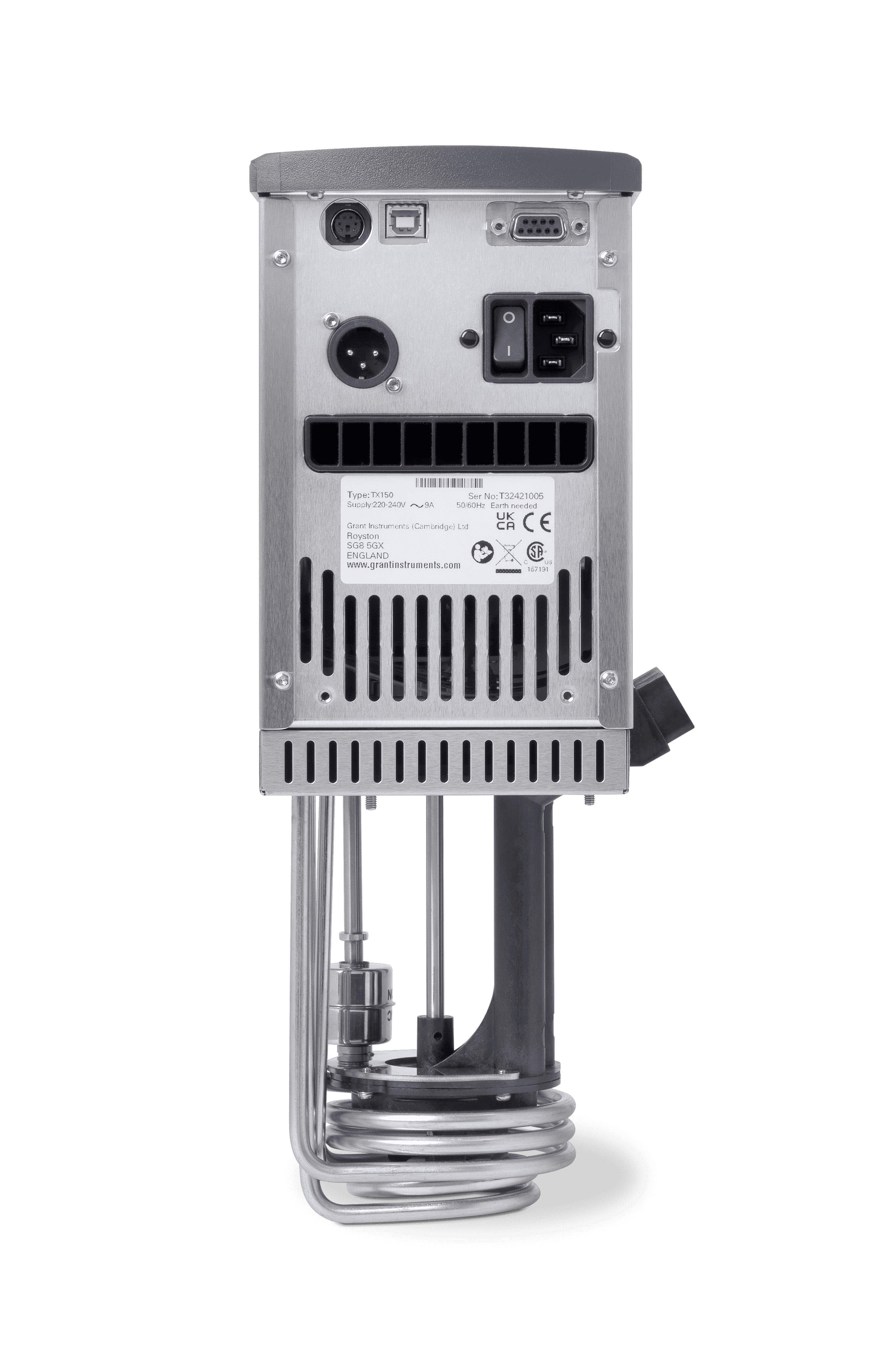

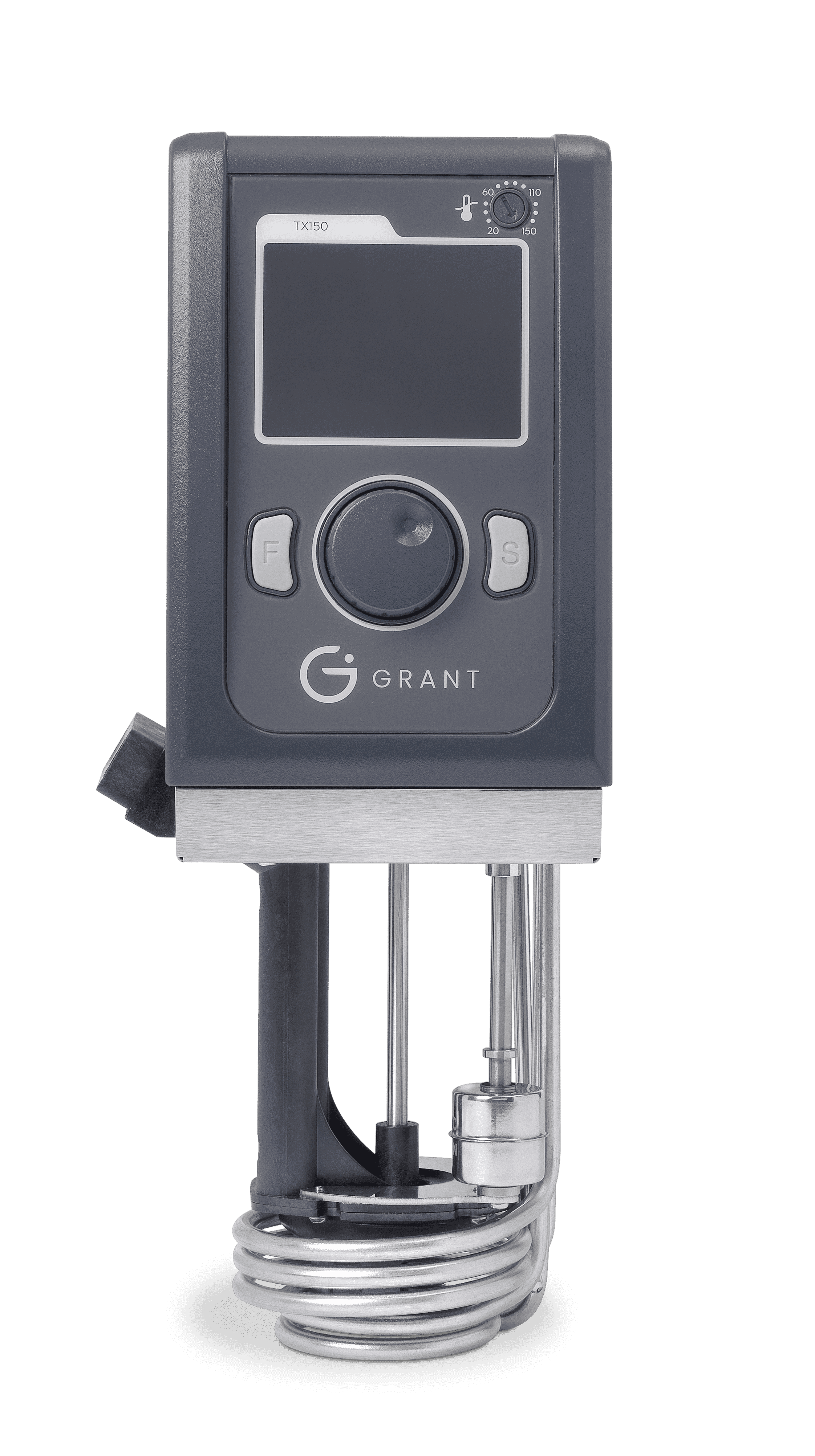

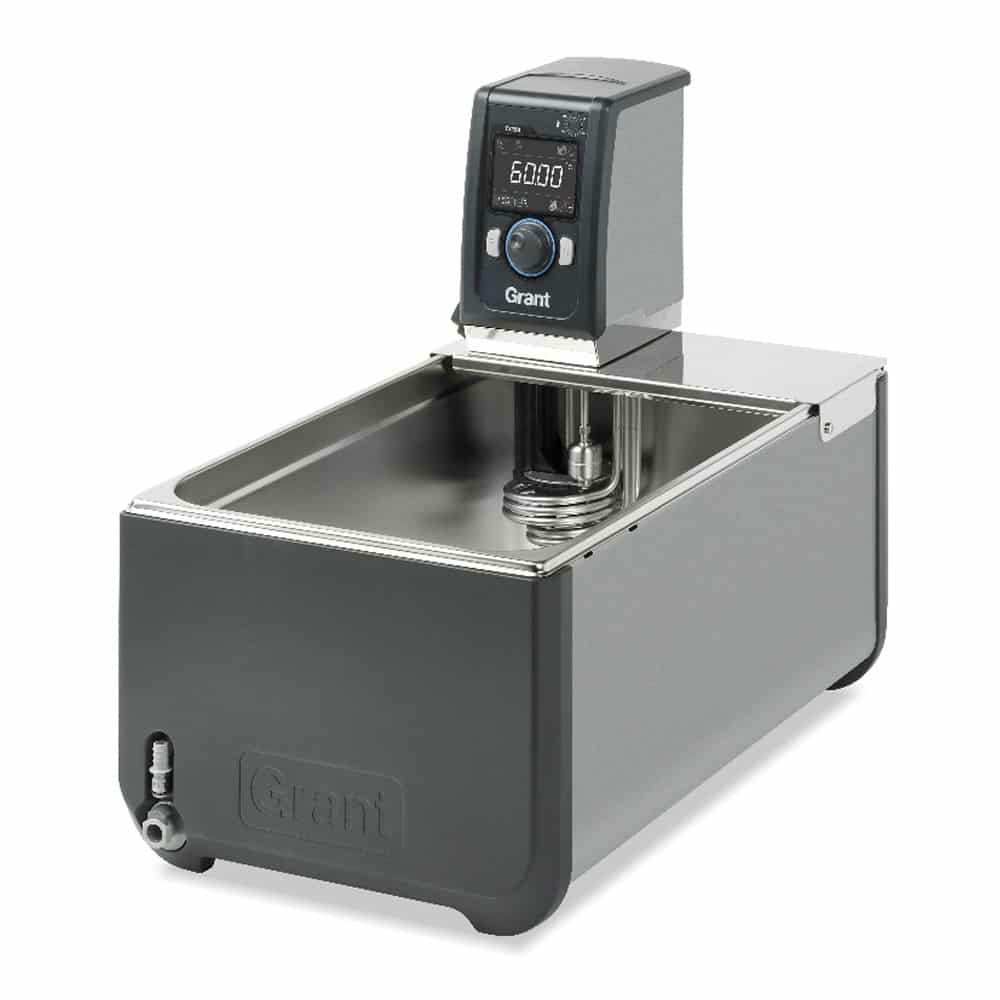

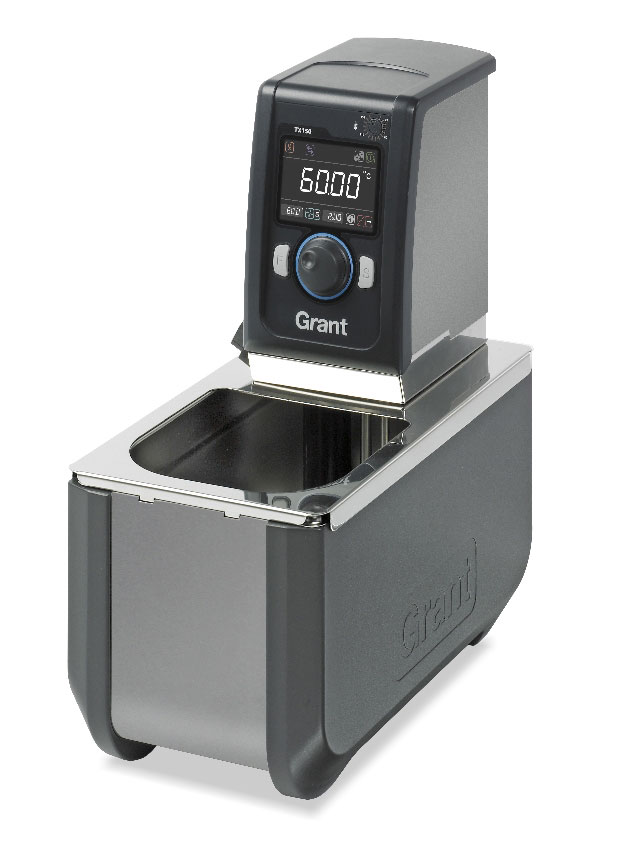

Optima TX150 Heated Circulating Bath
0.00SAR
The TX150 series of advanced digital thermostats offer excellent temperature stability and temperature control for demanding applications in the range of -15°C to 150°C.
Product Details
Specifications
Applications
- University research – temperature control of external equipment such as electrophoresis tanks or jacket vessels
- Industrial labs – temperature probe calibration
- University research – temperature control of external equipment such as electrophoresis tanks or jacket vessels
- Industrial labs – temperature probe calibration
About
The TX150 heating circulator can be used in combination with any Grant stainless steel or with a T-CLAMP for independent use of virtually any vertical sided tank.
- Cooling/heating range -15°C to 150°C
- Cooling achievable with optional immersion cooler (see accessory options)
- Stability ±0.01ºC / Uniformity ±0.05ºC
- Tank options 5L to 38L
- Powerful integral pump for external fluid circulation
- Large, bright full colour display with a choice of 5 languages
- Low-liquid detection (float switch)
- 5 point user calibration
- Easy to program via interface or remotely via PC / Laptop with Labwise® software
Relay output to enable control of an external device, typically a Grant refrigerated chiller or an external alarm.
The TX150 heating circulator can be used in combination with any Grant stainless steel or with a T-CLAMP for independent use of virtually any vertical sided tank.
- Cooling/heating range -15°C to 150°C
- Cooling achievable with optional immersion cooler (see accessory options)
- Stability ±0.01ºC / Uniformity ±0.05ºC
- Tank options 5L to 38L
- Powerful integral pump for external fluid circulation
- Large, bright full colour display with a choice of 5 languages
- Low-liquid detection (float switch)
- 5 point user calibration
- Easy to program via interface or remotely via PC / Laptop with Labwise® software
Relay output to enable control of an external device, typically a Grant refrigerated chiller or an external alarm.
Products in the range
- TX150-ST5 - 5 L
- TX150-ST12 - 12 L
- TX150-ST18 - 18 L
- TX150-ST26 - 26 L
- TX150-ST38 - 38 L
- TX150-ST5 - 5 L
- TX150-ST12 - 12 L
- TX150-ST18 - 18 L
- TX150-ST26 - 26 L
- TX150-ST38 - 38 L
water baths
- Dimensions (h x d x w)342 x 172 x 141mm
- Stability (DIN 12876) @70ºC0.01±ºC
- Uniformity (DIN 12876) @70ºC0.05±ºC
- Setting resolution0.1ºC
- DisplayFull colour QVGA TFT
- Timer function1 minutes to 99 hours 59 minutes
- No. of temperature presets3
- Re-calibration points5
- Socket for external probe (TXPEP, TXSEP)-
- Communications interfaceUSB, RS232
- ProgrammableRemote via PC/laptop 1 program/30
- Relays-
- Safety – over temperatureAdjustable cut-out
- Fluid level – float-
- Language optionsEN, FR, DE, IT, ES
- Alarms (can be configured to switch a relay)High (no relay)
- Heater power – 230V1840W
- Electrical power – 230V2000 (50-60Hz)
- Electrical power – 120V1445W
- Height above tank rim200mm
- Depth below tank rim145mm
- Maximum pressure (water)310mbar
- Maximum flow (water)18L/min
- Pump connector 6mm boreFits 9mm inner diameter tubing
- Pump connector 9mm boreFits 15mm inner diameter tubing
- Weight2.6kg
