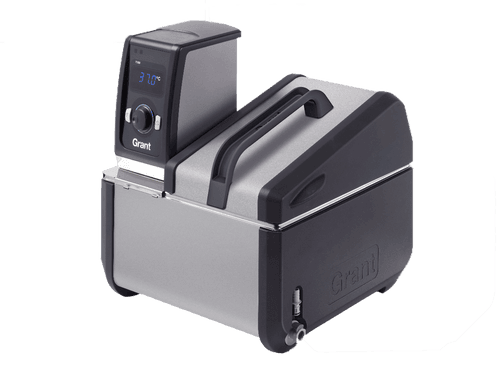

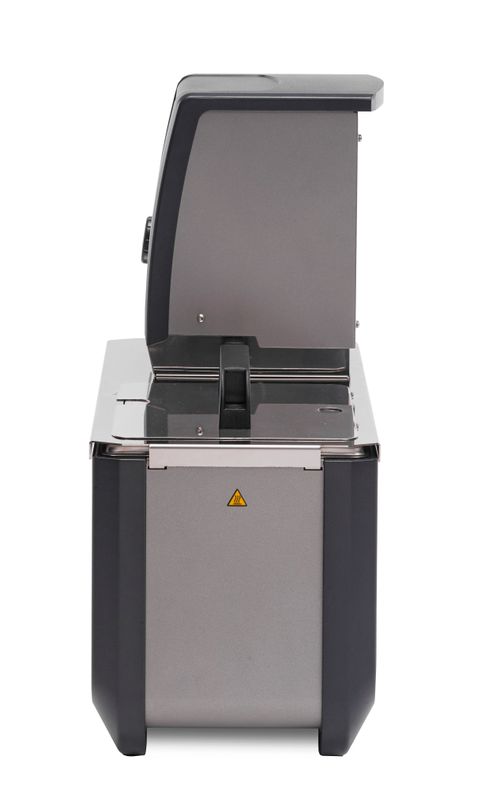

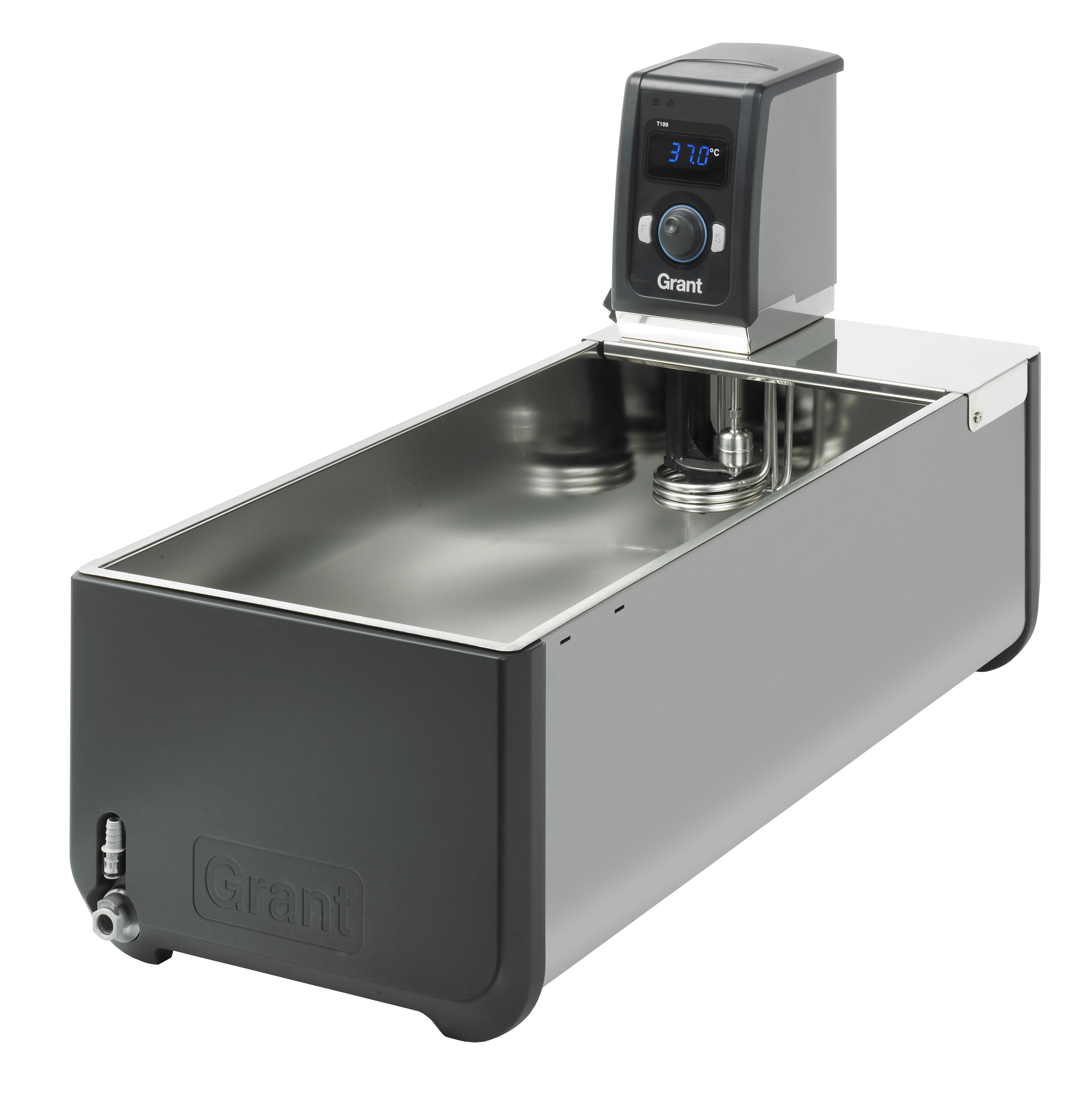

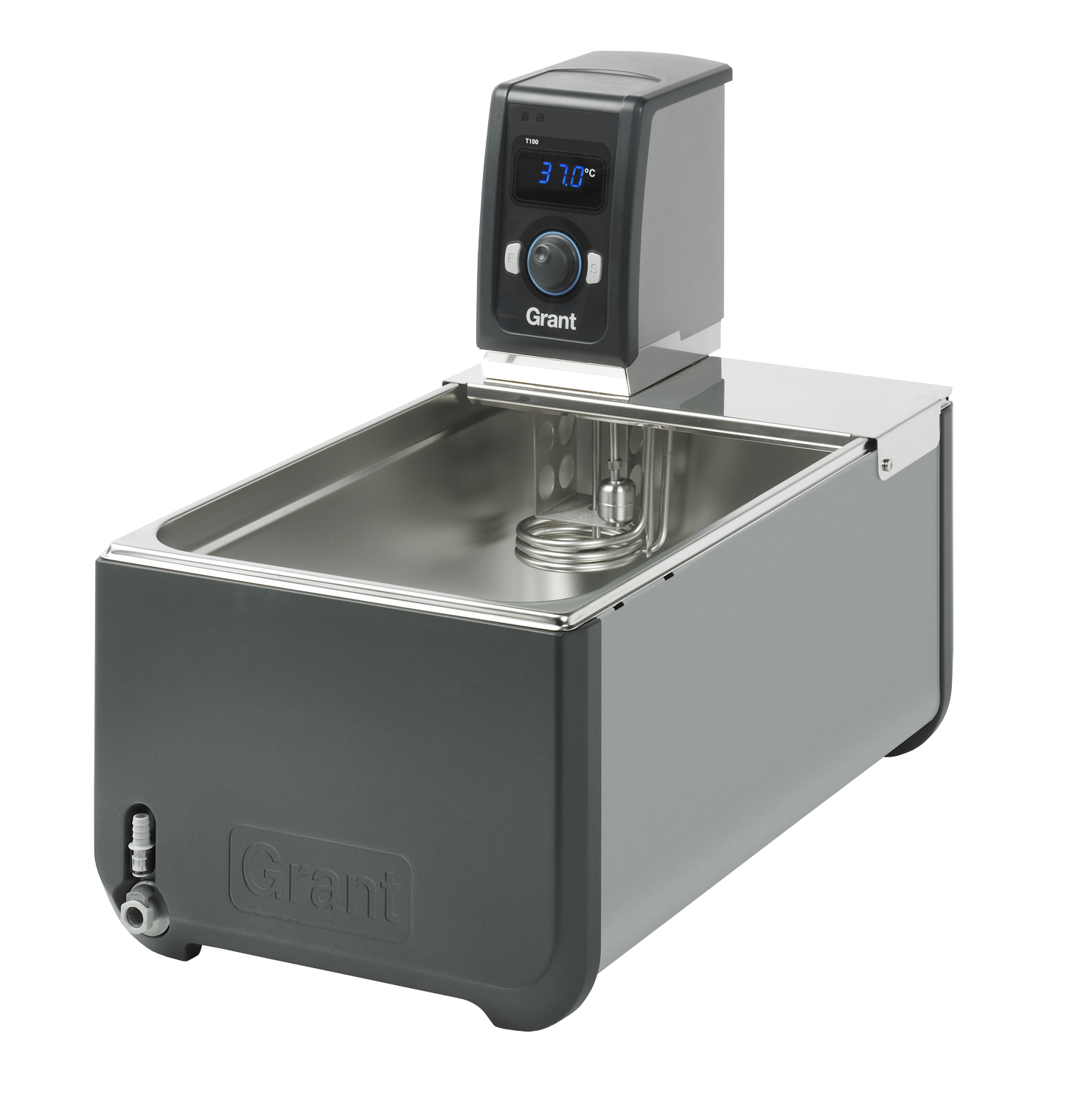

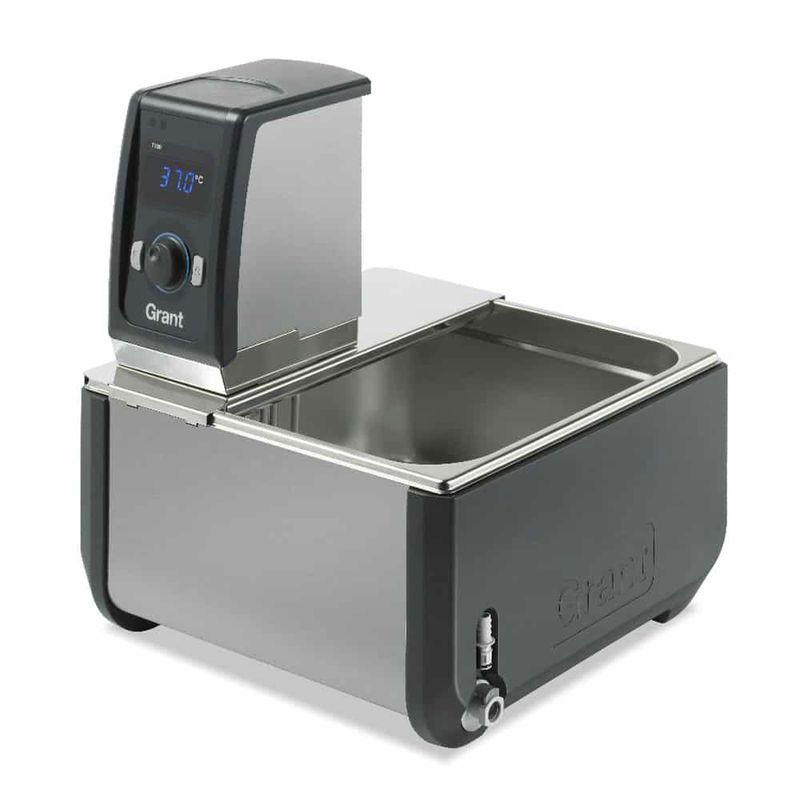

Optima T100 Heated Circulating Bath
Optima T100 Heated Circulating Bath
Optima T100 Heated Circulating Bath
Optima T100 Heated Circulating Bath
Optima T100 Heated Circulating Bath
Optima T100 Heated Circulating Bath
Optima T100 Heated Circulating Bath
Optima T100 Heated Circulating Bath
Optima T100 Heated Circulating Bath

Optima T100 Heated Circulating Bath

0.00SAR
The Grant T100 series of general purpose heating circulating baths offer accurate temperate control for straightforward applications in the range of 0°C to 100°C.
Quantity
Add to Cart
Product Details
Specifications
Applications
  • Clinical, Microbiology and Pathology labs – media tempering, thawing and incubating samples
  • Teaching labs, higher education/universities – practical demonstration/experimentation, sample preparation

About

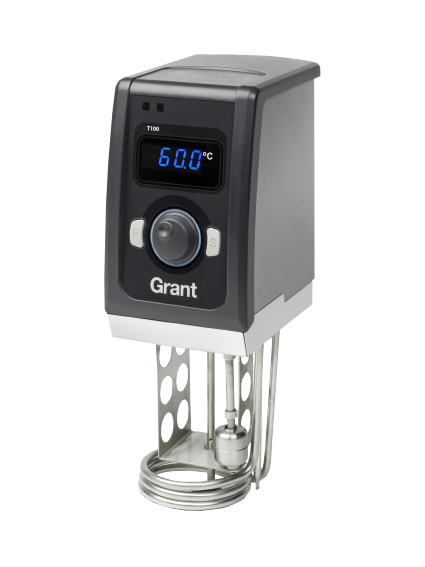

The T100 heating circulator can be used in combination with any Grant stainless steel or with a T-CLAMP for independent use of virtually any vertical sided tank.

  • Cooling/heating range 0°C to 100°C
  • Cooling achievable with optional immersion cooler (see accessory options)
  • Stability ±0.05ºC / Uniformity  ±0.1ºC
  • Tank options 5L to 38L. Custom options available upon request
  • 3 programmable temperature pre-sets
  • Low liquid protection and fixed over temperature cut-out
  • Visual alarm – alerts you when your attention is required
  • Clear, bright 4 digit LED display

Products in the range

  • T100-ST5 - 5 L
  • T100-ST12 - 12 L
  • T100-ST18 - 18 L
  • T100-ST26 - 26 L
  • T100-ST38 - 38 L
water baths
  • Dimensions (h x d x w)
    333 x 172 x 120mm
  • Stability (DIN 12876) @70ºC
    0.05±ºC
  • Uniformity (DIN 12876) @70ºC
    0.1±ºC
  • Setting resolution
    0.1ºC
  • Display
    4 digit LED
  • Timer function
  • No. of temperature presets
    3
  • Re-calibration points
    2
  • Socket for external probe (TXPEP, TXSEP)
    -
  • Communications interface
    -
  • Programmable
    -
  • Relays
    -
  • Safety – over temperature
    Fixed
  • Fluid level – float
    -
  • Language options
    -
  • Alarms (can be configured to switch a relay)
    -
  • Heater power – 230V
    1290W
  • Electrical power – 230V
    1400 (50-60Hz)
  • Electrical power – 120V
    1500 (50-60Hz)
  • Height above tank rim
    200mm
  • Depth below tank rim
    135mm
  • Maximum pressure (water)
    -
  • Maximum flow (water)
    -
  • Pump connector 6mm bore
    -
  • Pump connector 9mm bore
    -
  • Weight
    2.1kg
