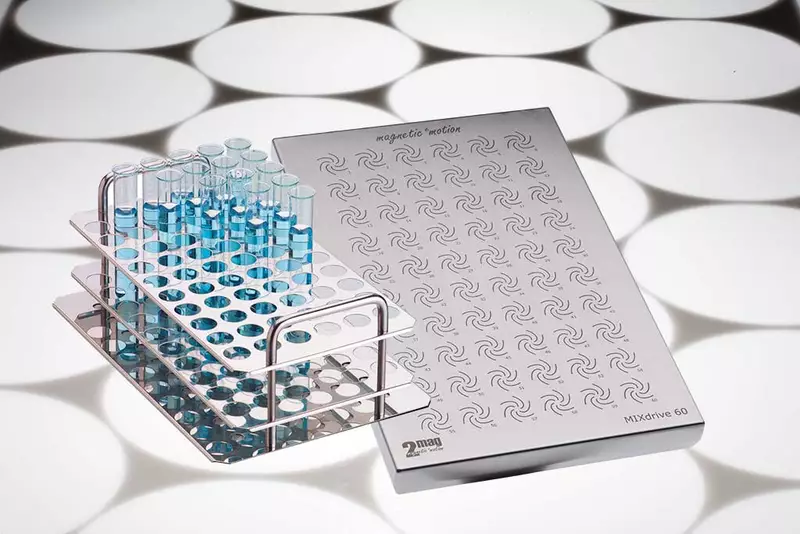

(MIXdrive 60) Multiple Magnetic stirrers with external control unit
Ultra flat, wear-free 2mag magnetic stirrer with 60 (6×10) stirring positions, suitable for 60 testing tubes, ideal for integration.
60 stirring positions, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept for powerful mixing of solutions, power reserves up to 500 ml per stirring point, 100% synchronized speeds, jerk-free stirring even at low speeds. Fully encapsulated and hermetically sealed stainless steel housing, IP68, water-, dust- and germ-proof.
Extremely robust construction and design, easy to clean and maximum resistance, immersible in water or oil baths, for use in CO2-incubators and ovens.
Two different temperature ranges available: Basic version up to +50 °C,
HT version up to +95 °C immersed in water baths and up to +200 °C in ovens, individual dimensions on request.
Wear-free magnetic stirrer, up to +200°C Submersible, up to +95 °C Stirring speed from 100 up to 2,000 rpm (depending on the control unit) 60 stirring points Stirring point distance 32.5 mm Extremely robust construction Integrable in systems Developed and made in Germany
Product Details
| Type | MIXdrive 60 | |
| Stirring points | 60 | |
| Stirring point distance | 32.5 mm | |
| Stirring volume/stirring point | 1 – 500 ml | |
| Stirring power (max.) | 40 W | |
| Housing material | Stainless steel | |
| Permitted operation conditions Basic-version | -10 °C up to +50 °C in air, up to +50 °C in water submerged | |
| Permitted operation conditions HT-version | up to +200 °C in air, up to +95 °C in water submerged | |
| Operating voltage (max.) | 48 VDC | |
| Dimensions (WxDxH) | 245 x 375 x 38 mm | |
| Protection class | IP68 | |
| Shipping weight (gross) | approx. 8.9 kg | |
| Order no. Basic-Version | 40060 | |
| Order no. HT-version | 40260 | |
