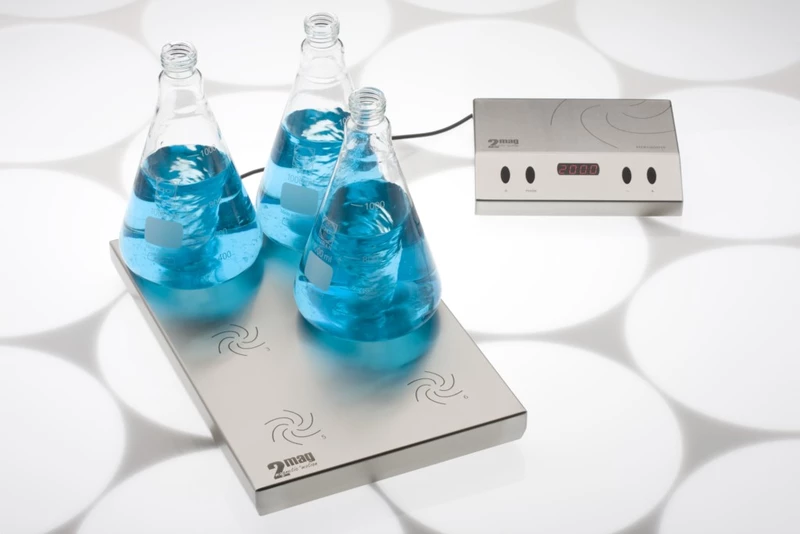

(MIXdrive 6) Multiple Magnetic stirrers with external control unit
Ultra flat, wear-free 2mag magnetic stirrer with with 6 stirring positions, suitable for 6 x 1,000 ml Erlenmeyer flasks, stirring point distance 130 mm.
6 stirring positions, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept for powerful mixing of solutions, power reserves up to 3,000 ml per stirring point, 100% synchronized speeds, jerk-free stirring even at low speeds. Fully encapsulated and hermetically sealed stainless steel housing, IP68, water-, dust- and germ-proof.
Extremely robust construction and design, easy to clean and maximum resistance, immersible in water or oil baths, for use in CO2-incubators and ovens.
Two different temperature areas available: Basic-version up to +50 °C, HT-version up to +95 °C submerged in water baths and up to +200 °C in ovens, individual dimensions on request.
Wear-free magnetic stirrer, up to +200°C Submersible, up to +95 °C Stirring speed from 100 up to 2,000 rpm (depending on the control unit) 6 Stirring points Stirring point distance 130 mm Extremely robust construction Integrable in systems Developed and made in Germany
Product Details
| Type | MIXdrive 6 | |
| Stirring points | 6 | |
| Stirring point distance | 130 mm | |
| Stirring volume/stirring point | 1 – 3,000 ml | |
| Stirring power (max.) | 40 W | |
| Housing material | Stainless steel | |
| Permitted operation conditions Basic-version | -10 °C up to +50 °C in air, up to +50 °C in water submerged | |
| Permitted operation conditions HT-version | up to +200 °C in air, up to +95 °C in water submerged | |
| Operating voltage (max.) | 48 VDC | |
| Dimensions (WxDxH) | 245 x 375 x 38 mm | |
| Protection class | IP68 | |
| Shipping weight (gross) | approx. 9.4 kg | |
| Order no. Basic-Version | 40006 | |
| Order no. HT-version | 40206 | |
