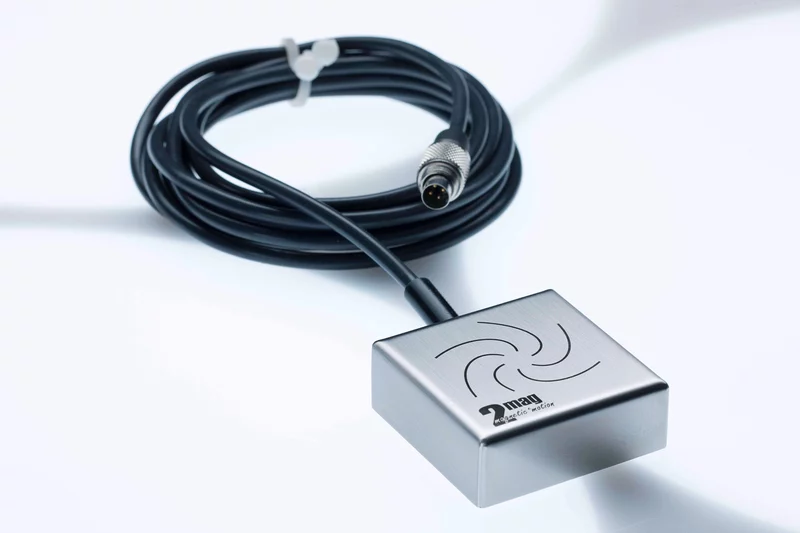

(MIXdrive 1 XS ) Magnetic Stirrers (with external control unit)
Ultra flat, wear-free 2mag magnetic stirrer with 1 stirring position, optimized for stirring volume up to 1,000 ml, ideal size for integration.
1 stirring position, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept for powerful mixing of solutions, jerk-free stirring even at low speeds.
Fully encapsulated and hermetically sealed stainless steel housing, thread M4 integrated in stainless-steel bottom plate (not HT-version), IP68, water-, dust- and germproof, extremely robust construction and performance, easy to clean and maximum resistance, submersible in water- resp. oil baths, suitable for the use in CO2-incubators and ovens.
Two different temperature ranges available:
Basic version up to +50 °C, HT version up to +95 °C immersed in water baths and up to +200 °C in ovens, individual dimensions on request.
Wear-free magnetic stirrer, up to +200°C Submersible, up to +95 °C Footprint 48 x 48 mm Stirring speed from 100 up to 1,600 rpm (depending on the control unit) Extremely robust construction Integrable in systems Developed and made in Germany
Product Details
| Type | MIXdrive 1 XS |
| Stirring points | 1 |
| Stirring volume/stirring point | 1 – 1,000 ml |
| Stirring power (max.) | 10 W |
| Housing material | Stainless steel |
| Permitted operation conditions Basic-version | -10 °C up to +50 °C in air, up to +50 °C in water submerged |
| Permitted operation conditions HT-version | up to +200 °C in air, up to +95 °C in water submerged |
| Operating voltage (max.) | 48 VDC |
| Dimensions (WxDxH) | 48 x 48 x 18 mm |
| Protection class | IP68 |
| Shipping weight (gross) | approx. 0.36 kg |
| Order no. Basic-Version | 40300 |
| Order no. HT-version | 40303 |
