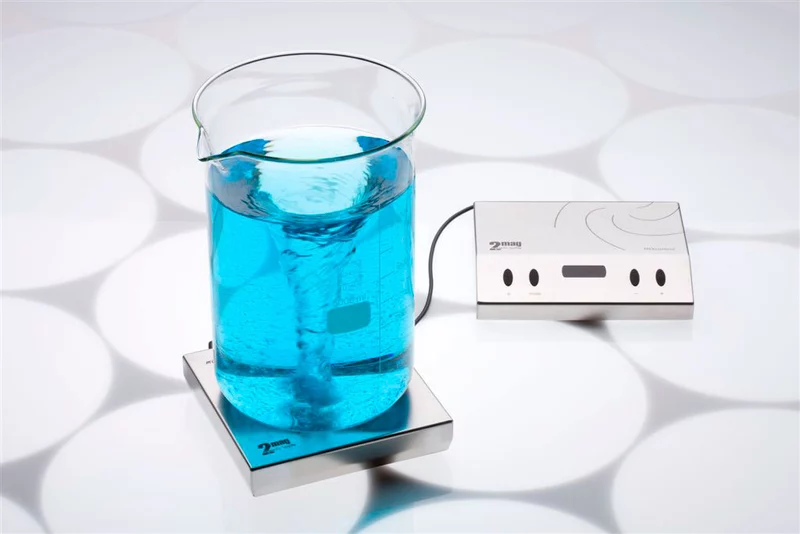

( MIXdrive 1 ) Magnetic Stirrers (with external control unit)
Ultra flat, wear-free 2mag magnetic stirrer with 1 stirring position, suitable for vessels up to 10,000 ml.
1 stirring position, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept for powerful mixing of solutions, jerk-free stirring even at low speeds.
Fully encapsulated and hermetically sealed stainless steel housing, IP68, water-, dust-, and germproof, extremely robust construction and performance, easy to clean and maximum resistance, submersible in water- resp. oil baths, suitable for the use in CO2-incubators and ovens.
Two different temperature areas available: Basic-version up to +50 °C, HT-version up to +95 °C submerged in water baths and up to +200 °C in ovens, individual dimensions on request. 3 years warranty on material and manufacturing, developed and made in Germany.
Wear-free magnetic stirrer, up to +200°C Submersible, up to +95 °C Footprint 18 x 18 cm Stirring speed from 100 up to 2,000 rpm (depending on the control unit) Extremely robust construction Integrable in systems Developed and made in Germany
Product Details
| Type | MIXdrive 1 | |
| Stirring points | 1 | |
| Stirring volume/stirring point | 1 – 10,000 ml | |
| Stirring power (max.) | 20 W | |
| Housing material | Stainless steel | |
| Permitted operation conditions Basic-version | -10 °C up to +50 °C in air, up to +50 °C in water submerged | |
| Permitted operation conditions HT-version | up to +200 °C in air, up to +95 °C in water submerged | |
| Operating voltage (max.) | 48 VDC | |
| Dimensions (WxDxH) | 180 x 180 x 38 mm | |
| Protection class | IP68 | |
| Shipping weight (gross) | approx. 3.5 kg | |
| Order no. Basic-Version | 40001 | |
| Order no. HT-version | 40201 | |
