2mag
MIXcontrol eco DINrail ( Control units ) for MIXdrive agitator drives

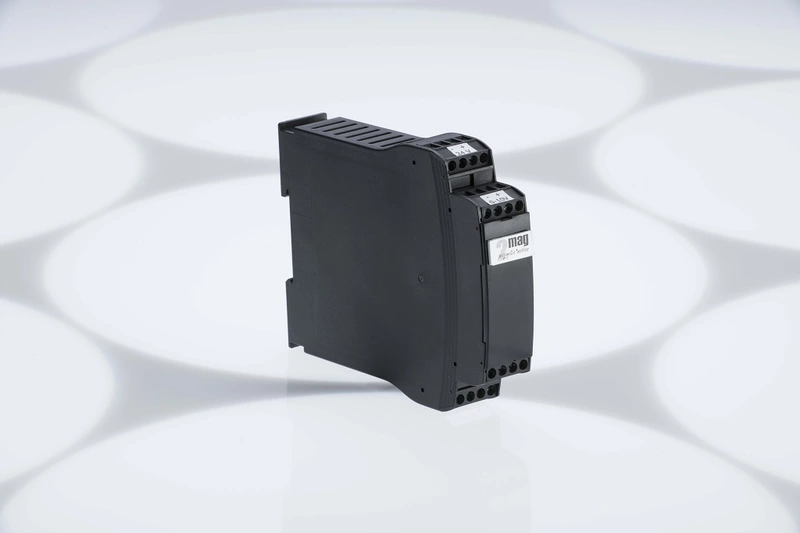

2mag control unit for DIN installation (electrical cabinets).
Price-optimized control unit for DIN rail installation (electrical cabinets) for small to medium volumes and the connection of 1 stirring drive MIXdrive, with analog interface 0-10 volts or potentiometer, for ON/OFF and speed adjustment.
Control unit with 10 watts stirring power, speed range from 120 up to 1,200 rpm, SoftStart for reliable catching/centering and safe accelerating of the stirring bar.
Non-returnable
Out of stock
Share:
Product Details
| Type | MIXcontrol eco DINrail |
| Speed range | 120 – 1,200 rpm |
| Stirring power (max.) | 10 W |
| Power setting | – |
| Housing material | Plastic |
| Permitted operation conditions | 0 °C up to +40 °C (at 80% humidity) |
| Operating voltage (max.) | 24 VDC |
| Dimensions (WxDxH) | 24 x 100 x 120 mm |
| Protection class | IP20 |
| Shipping weight (gross) | approx. 0.25 kg |
| Order no. with RS232 interface | 90160 |
| Order no. with 0-10 V interface | 90150 |
| Order no. with potentiometer | 90140 |
