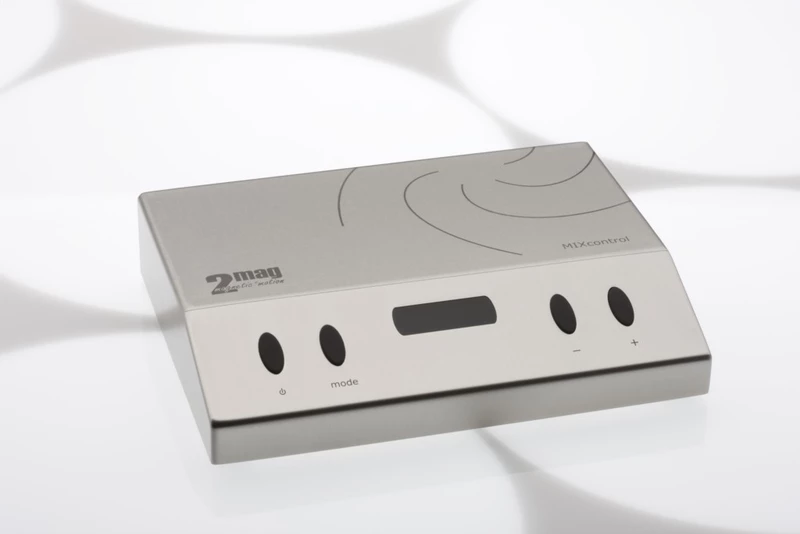

MIXcontrol 40( Control units ) for MIXdrive agitator drives
Powerful control unit, for 2mag MIXdrive series, developed for the hard daily lab use and uncompromising continuous operation.
Powerful control unit for the connection of up to two stirring drives MIXdrive, powerful 40 watts stirring power, wide speed range from 100 up to 2,000 rpm, jerk-free stirring also at low speeds, power setting (10-steps) for high power with regard to large and viscous stirring amounts and reduced power for the warming-free continuous operation of MIXdrive stirring drives.
Clear digital display for speed- and power settings, SoftStart for reliable catching/centering and safe accelerating of the stirring bar. QuickSet for quick setting of start- and maximum speed, automatic memory function to save the last settings, resistant stainless steel housing, easy to clean.
Also available with RS232 interface.
Interfaces (0-10 volts, 4-20 mA, USB, Ethernet, OPC UA, LADS oriented), other housings (e.g. for DINrail installation) and customized software adaption on request.
Product Details
| Type | MIXcontrol 40 |
| Speed range | 100 – 2,000 rpm |
| Stirring power (max.) | 40 W |
| Power setting | 10 – 100% (10-stage) |
| Housing material | Stainless steel |
| Permitted operation conditions | 0 °C up to +40 °C (at 80% humidity) |
| Electrical data | 100-240 V / 50-60 Hz / 1.5 A |
| Dimensions (WxDxH) | 200 x 155 x 38 mm |
| Protection class | IP 20 |
| Shipping weight (gross) | approx. 1.9 kg |
| Order no. MIXcontrol 40 | 90400 |
| Order no. MIXcontrol 40 RS232 | 90410 |
