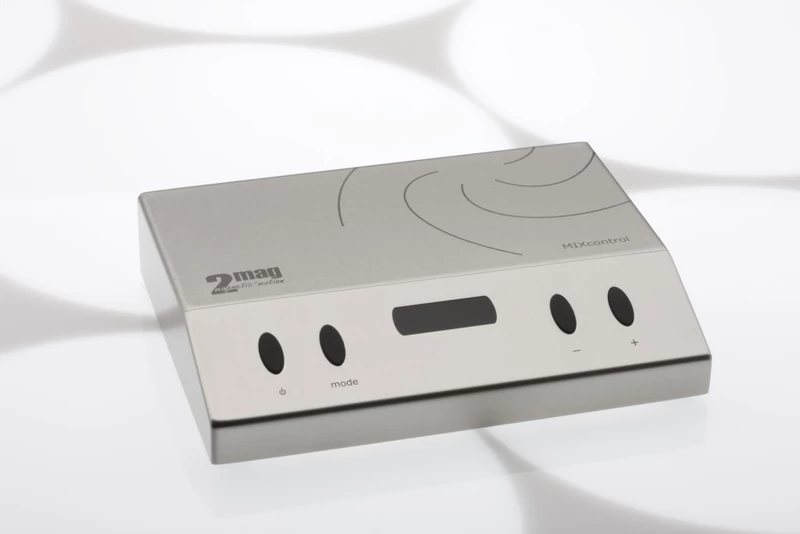

MIXcontrol 20 ( Control units ) for MIXdrive agitator drives
Universal control unit for the connection of 1 stirring drive 2mag MIXdrive.
Control unit with 20 watts power, speed range from 100 up to 1,600 rpm, jerk-free stirring also at low speeds, power setting (4-steps) for high power with regard to large and viscous stirring amounts and reduced power for the warming-free continuous operation of MIXdrive stirring drives.
Clear digital display for speed- and power settings, SoftStart for reliable catching/centering and safe accelerating of the stirring bar. QuickSet for quick setting of start- and maximum speed, automatic memory function to save the last settings, resistant stainless steel housing, easy to clean.
Also available with RS232 interface.
Interfaces (0-10 volts, 4-20 mA, USB, Ethernet, OPC UA, LADS oriented), other housings (e.g. for DINrail installation) and customized software adaption on request.
Product Details
| Type | MIXcontrol 20 |
| Speed range | 100 – 1,600 rpm |
| Stirring power (max.) | 20 W |
| Power setting | 4-stage (25/50/75/100%) |
| Housing material | Stainless steel |
| Permitted operation conditions | 0 °C up to +40 °C (at 80% humidity) |
| Electrical data | 100-240 V / 50-60 Hz / 1.5 A |
| Dimensions (WxDxH) | 200 x 155 x 38 mm |
| Protection class | IP20 |
| Shipping weight (gross) | approx. 1.9 kg |
| Order no. MIXcontrol 20 | 90200 |
| Order no. MIXcontrol 20 RS232 | 90210 |
