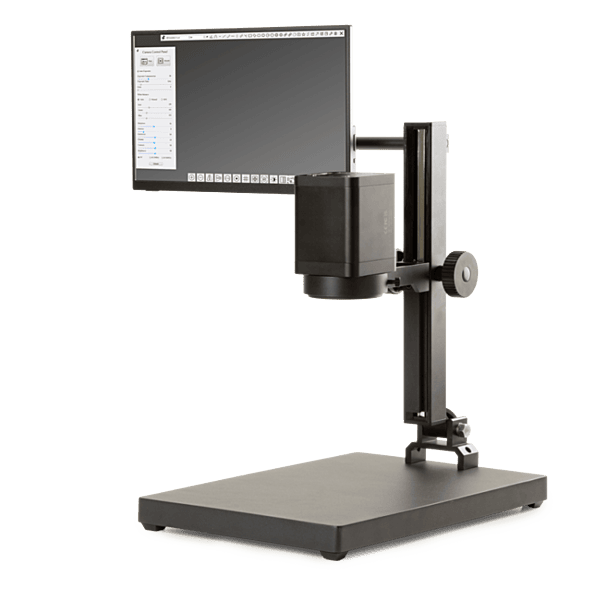

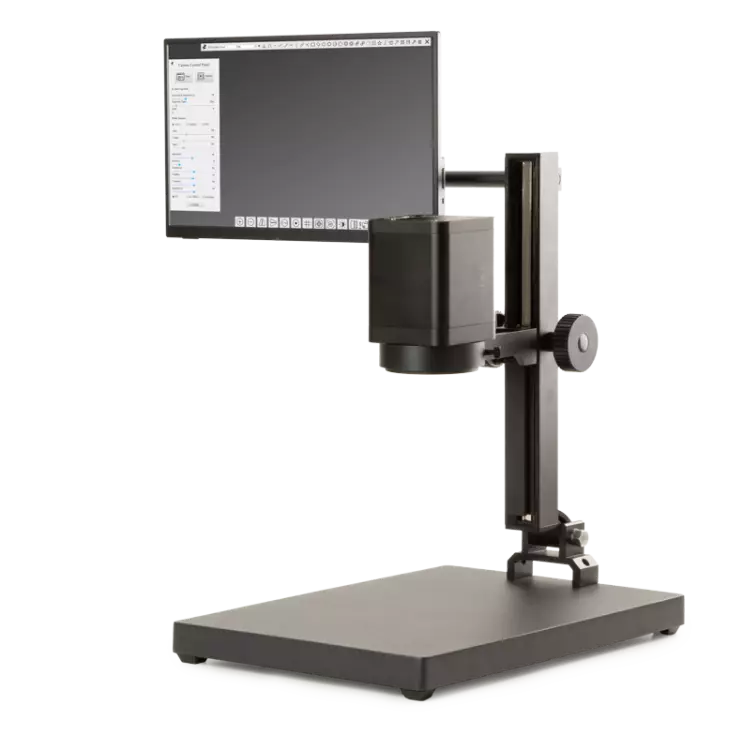

MacroZoom MZ.4700(-HDS)
Digital autofocus MacroZoom 4K/1080p
The MZ.4700 is an integration of a 1080p HDMI camera, an electrical controlled continuous zoom auto-focus objective together with a stand and illumination system. The MZ.4700 enables direct inspection of objects on a HD screen. The mouse-driven built-in software controls the camera parameters and enables measurements on screen, capturing and saving .jpg or .bmp format pictures and .mp4 format video on an USB memory stick
Product Details
- Stand-alone or pc operated
- Sony 1/2.8” 4K/1080P CMOS sensor 18x optical zoom ratio
- Optical zoom factor up to 5.6x
- On-screen magnification from 2.8 to 47x
- 205-215 mm Working distance
- Standard LED ring light
- Optional directional LED ring light
- Built-in mouse-driven software
- 2 Years warranty
AutoFocus MacroZoom
The MZ.4700 and MZ.4700-HDS are supplied with the standard pillar stand and a standard LED ring light
The MZ.4700 needs a HD screen
The MZ.4705 is supplied without a stand and needs a standard LED ring light (MZ.4730) or a 12 directional 1W LEDs (MZ.4735). See Accessories. The MZ.4705 can be mounted on a NexiusZoom stand
All models are supplied with a 32 GB SD card, mouse, WiFi dongle, HDMI cable and external 100-240 Vac/12Vdc / 3A power supply
MZ.4700 and MZ.4702 compared
* WD = Working distance
** 30 fps for HDMI 1.4, UBS 2.0, WiFi-5 and ETH
*** 60 fps for HDMI 2.0, WiFi-5 and ETH. 30 fps for USB3.0
**** Models with -HDS have an 11 inch HD screen
ZOOM OBJECTIVE
- The 16 elements objective has a 18x zoom ratio and produces magnifications up to 0.56 magnification with a manual or automatic focusing function
- Field of views from 255 x 145 mm (1x zoom) to 14 x 8 mm (18x zoom
- On-screen magnification 2.8 to 47x @190 mm WD (24“ screen)
- Focusing range is between 205 and 225 mm
WD = working distance
CAMERA
- The 8.3 MP camera is equipped with a Sony 1/2.8 inch
- 4K UHD/1080P CMOS High Definition sensor with high signal-to-noise ratio generating a 3840 x 8160 pixels video streaming up to 60 images per second*
- The 4K/UHD signal fits the HDMI input of a HD screen
- Image and video storage is done with a built-in SD card
- Stand-alone or PC operated (ImageFocus Alpha)
* Frame rates have been determined at optimal conditions
BUILT-IN SOFTWARE
The built-in intuitive software is controlled by the supplied and to the camera connected computer mouse. It features a camera control panel, a autofocus control panel and a measurement toolbar
ILLUMINATION
- A standard LED ring light assures a good standard lighting of te sample
- A ring light with 12x 1W, 30° directional LEDs enables very flexible lighting of the sample
STAND
- The MacroZoom can be mounted on a dedicated rack&pinion stand with or without a dedicated HD screen
- With the 30° directional 12x 1W LED ring light (MZ.4735,) the Macrozoom (MZ.4705) can also be mountedonthe NexiusZoom stands (incl. the NZ.9047, see datasheet)
PACKAGE CONTENT
Supplied with a standard ring light, a 32 GB SD card, mouse, WiFi dongle, HDMI cable and external 100-240 Vac / 12Vdc / 3A power supply
ORDER PRODUCT REFERENCES
MZ.4700
Stand-alone digital autofocus MacroZoom (1) with standard (2) stand
MZ.4700-HDS
Stand-alone digital autofocus MacroZoom (1) with standard (2) stand and HD screen
MZ.4705
Stand-alone digital autofocus macrozoom (1)
MZ.4710
Standard (2) stand for MZ.4705
MZ.4712
11 inch HD screen for MZ.4710 inclusief pillar attachment
MZ.4740
Standard LED ring light
MZ.4735
Directional 12 x 1W LEDs ring light (2)
(1) Supplied with a 32 GB SD card, mouse, WiFi dongle, HDMI cable and External 100-240 Vac / 12Vdc / 3A power supply
(2) With the MZ.4735 a MZ.4705 can also be mounted on NexiusZoom stands
