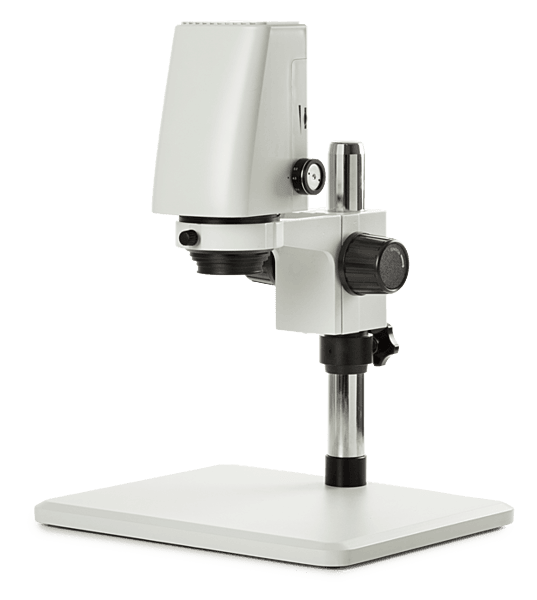

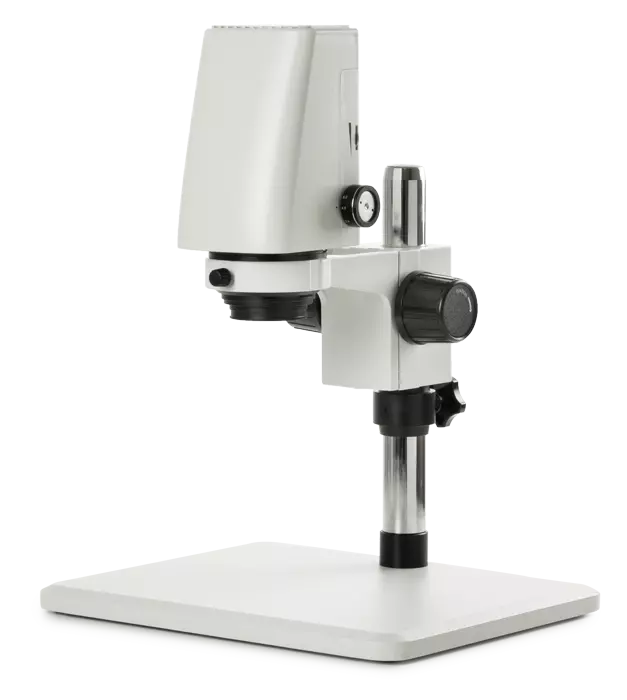

MacroZoom MZ.4600

The MZ.4600 needs a extrernal illumination solution such as the LE.1973 or LE.1974 LED ringlights or a LED illumination station such as the LE.5212 or LE.5207

SPECIFICATIONS

MACROZOOM OBJECTIVE

• The Digital MacroZoom MZ.46000 features a single zoom objective with a 0.7 to 5x zoom magnification
• Zoom adjustment engravings on 0.7, 1, 1.5, 2, 2.5, 3, 4 and 5x
• The working distance is 100 mm
• An optional 3D attachment enables a 45° angle observation

STAND

• Standard large pillar metal stand 320 x 260 mm without illumination
• Travel range is 50 mm, max. object height 22 cm
• The MacroZoom objective can also be mounted on the NexiusZoom stand

ILLUMINATION
An external (not supplied) illumination system should be used, such as:

• LED ring lights LE.1973 or LE.1974
• LED illumination station LE.5212 or LE.5207 which can be mounted under the MacroZoom body

BUILT- IN CAMERA
Built-in HD 1080p high definition 2 MP 1/2.8” CMOS high speed camera, 1920 x 1080 pixels, 2.9 µm  x 2.9 µm pixels and 60 images per seconds. Magnification on screen from 2.5x up to 19x with field of view from 210 x 120 mm up to 27 x 15 mm based on a 24 inch HD screen. The camera has one HDMI output that needs to be connected to an external HD screen (not supplied). Two USB ports accept the supplied 32 GB USB memory stick (up to 64 GB) and a supplied wireless mouse that drives the built-in on-screen software. The operator can take .jpg or .bmp images and .mp4 video’s and save them to an external supplied memory stick

BUILT- IN SOFTWARE
The built-in on-screen software (only English language) is mouse driven and features functions such as capture or record images, automatic or manual white balance, color adjustments, file manager, grids, flip/mirror, freese image, WDR (white dark regulation), crosshair and crosslines, text annotations. Camera settings such as automatic or manual exposition time, gain, brightness, saturation, contrast, sharpness, digital 1-6x zoom are available.  Measurement functions are also available from the software such as line, polygon circle, rectangle, angle, arc. Images are saved in .jpg or .bmp format and video in .mp4 videos format

PACKAGE CONTENT

• Digital MacroZoom body only (MZ.4605)
• 32 GB memory stick, mouse, HDMI cable for HD screen, external 100-240 Vac / 12Vdc / 3A power supply
• Standard pillar stand with head holder, without illumination (MZ.4610)

ORDER PRODUCT REFERENCES

MZ.4600
MacroZoom body with standard large 320 x 260 mm stand, head holder, without illumination

MZ.4600-NZ
MacroZoom body with NexiusZoom stand (NZ.9018) equipped with two 2W Gooseneck LED illumination

MZ.4605
MacroZoom body alone. Needs stand

MZ.4610
Standard* stand with head holder without illumination for MZ body MZ.4605

MZ.4615
3D attachment for observation under 45° angle*

View from above and from a 45° angle

MZ.4625
Additional 0.5x lens working distance 165 mm

MZ.4627
Additional 0.7x lens working distance 128 mm

MZ.4622
Additional 2x lens working distance 40 mm

Optional light sources:

LE.1973
Ring light with 144 LEDs with adjustable light intensity. External power supply 100-240. Vac / 12 Vdc (50/60 Hz). With segment controller. Luminous flux of 23,000 Lux and color temperature of 6500 K

LE.1974
Ring light with 72 LEDs with adjustable light intensity. External power supply 110-240 Vac / 12 Vdc (50/60 Hz). With segment controller. Luminous flux of 20,000 Lux and color temperature of 6500 K

LE.5207
Light source with 2x 3W LED light source mounted on two self-sustaining Gooseneck-type 56 cm long guide. Luminous flux 25.000 Lux, 6500K

LE.5212
Multiple light source station

• withtwo self-sustaining gooseneck-type 56 cm long guides with 2x 3 Watt white 6500 K power LEDs,each with a 3-lens focusing head
• 60 LEDs ring light, 6.500 K, 24.000 Lux
• transmitted 42 LEDs light stage, 6.500 K, 8.000 Lux. Stage diameter 94.5 mm, 15 mm high
