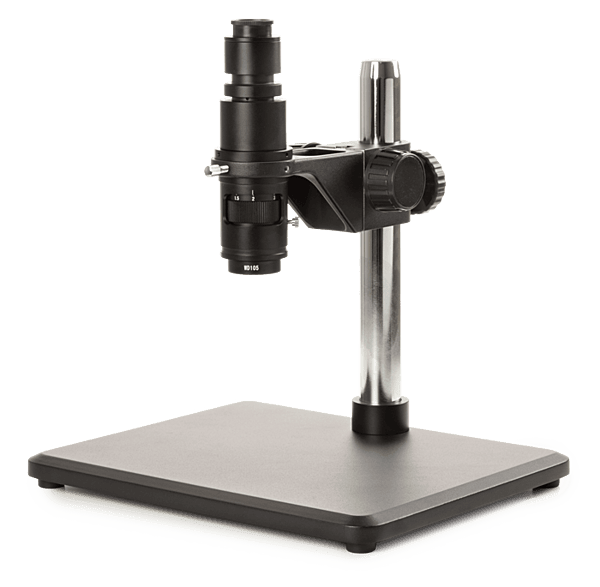

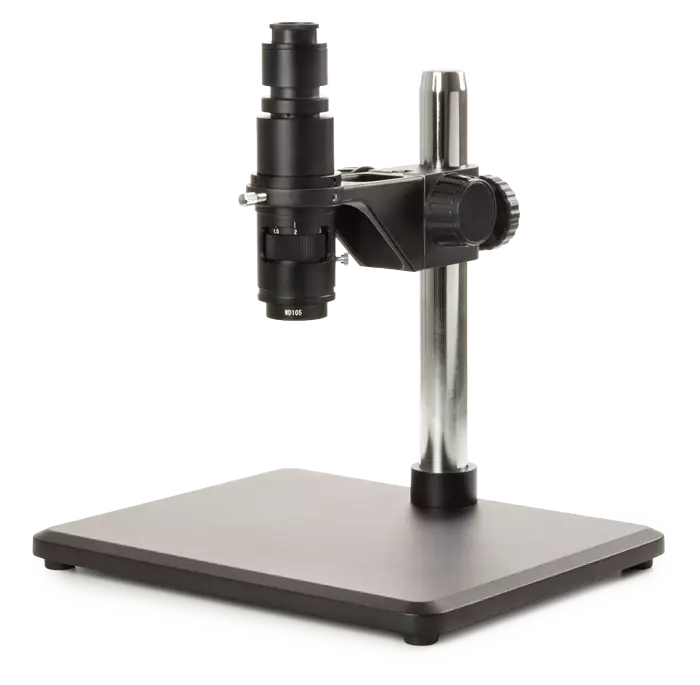

MacroZoom MZ.4500
MacroZoomMZ.4500
The high-end MacroZoom is built around one 0.7 to 4.5 times optical zoom objective and must be used in combination with C-mount types of cameras with a HD screens or computer screens. With a working distance of 105 mm it is highly suitable for repairs, tooling engineers and visual inspections
A standard heavy metal base makes the whole system very stable for adding all kinds of illumination systems and camera systems
- Stand-alone
- Zoom semi-apochromatic objective
- Zoom up to 0.7x to 4.5x
- C-mount with 0.4x objective
- 105 mm working distance
- Without illumination
- Metal stand
* For C-mount cameras see our CMEX and HD camera
CENTRAL ZOOM OBJECTIVE
The MacroZoom MZ.4500 features a single optical zoom objective with a 0.7x to 4.5x zoom magnification. Zoom adjustments engravings on 1, 1.5, 2, 3 and 4.5x. The working distance is 105 mm
STAND
The MacroZoom is mounted on a 230 mm height pillar
(Ø 32 mm) and holder (Ø 39/50 mm) that sits on a metal 320 x 260 x 16/25 mm metal stand
CAMERA SYSTEMS
Any of our digital C-mount cameras can be used together with the MacroZoom
PACKAGING
Supplied with dust cover and packed in styrofoam
