Livestock Scale Max: 2000 kg d: 1 kg
0.00SAR
H315.4I.2000.S1Livestock ScaleMaximum capacity [Max]: 2000 kgReadability [d]: 1 kg
Product Details
Specifications

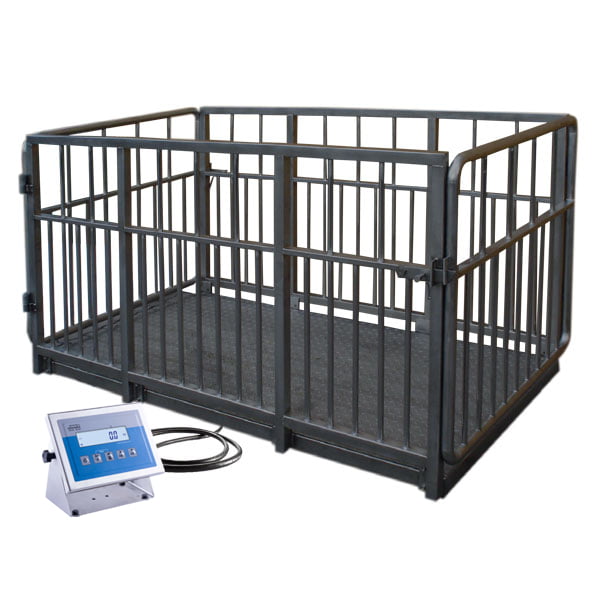

Livestock scale H315/4I series is used to fast and precise determination of mass of cattle and swine with possibility of multiple tarring in all measuring range. The weighing process is carried out with closed entering gate.
Barrier height is dependent on the weighing platform dimensions.
The scale features an indicator PUE H315 series in stainless steel housing. The indicator comprises a LCD backlit display and function buttons. The platform and the indicator are connected with a long cable for easy mounting of the indicator on a wall.
Special software with various dampening filters enables stable and precise mass readout even if the animals are moving on the platform. An optional solution is a scale for measuring all herd of cattle.
Barrier height is dependent on the weighing platform dimensions.
The scale features an indicator PUE H315 series in stainless steel housing. The indicator comprises a LCD backlit display and function buttons. The platform and the indicator are connected with a long cable for easy mounting of the indicator on a wall.
Special software with various dampening filters enables stable and precise mass readout even if the animals are moving on the platform. An optional solution is a scale for measuring all herd of cattle.
Balance
- Maximum capacity [Max]2000 kg
- Minimum load20 kg
- Readability [d]1 kg
- Tare range-2000 g
- OIML ClassIII
- DisplayLCD (backlit)
- Weighing pan dimensions1×2 m
- Operating temperature+10 — +40 °C
- Relative humidity10% — 85% RH no condensation
- Protection classIP 67 construction, IP 68 (1h max)/69 indicator
- Scale mass with indicator290 kg
- Cable length3 m
- Operation time on batteriesmax 7h
- Barriers height1.1 m
- Optional power supplyinternal rechargeable battery
- Optional interfacesRS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
