Electrolab

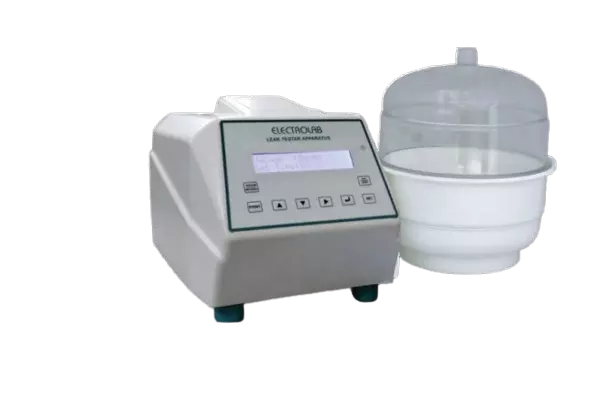

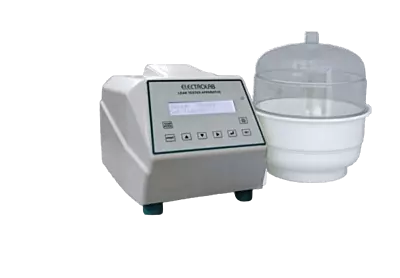

Leak Tester ELT-101
- Smart verification of leak detection using the widely accepted and cost efficient blue dye method
- Programmable vacuum level and hold time
- Oil-less vacuum pump
- CGMP model
- Compliance with USP and international package practice specifications
- Slow venting for better precision
- Printout of test report via serial port
- Vacuum calibration made easy with inbuilt calibration menu
- Fully micro controller based equipment (First time in India)
- Large LCD module for displaying vacuum and an electronic countdown time
- Built in with a rugged oil free vacuum pump
- Vacuum display and timer of the LCD module is factory calibrated
- User-friendly equipment with easy controls
- Fully transparent Polycarbonate Vacuum Desiccator
- Portable, Efficient, Low power consumption
- Software calibration of vacuum
- Release time 60sec or 80 sec
Non-returnable
Out of stock
Share:
Product Details
- Model: ELT-101
- Vacuum level range: Better than 650 mm Hg at MSL
- Timer range: Up to 99 minutes
- Printer interface: Serial
- Vacuum setting level: Vacuum can stabilize for a set value from
- a.Less than 400mm of Hg ± 10 mm of Hg within 30 sec.
- b. Above 400 mm of Hg ± 5 mm of Hg within 30 sec.
- Vacuum sensor accuracy: ±2 mm Hg over full scale
- Dimensions (W x L x H): 248 mm x 377 mm x 248 mm
- Electrical power: 220/230 VAC, 50/60 Hz, 1.3 kW/6 Amp 110 VAC, 50/60 Hz, 1.3 kW/10 Amp
- Weight: 10 Kg
