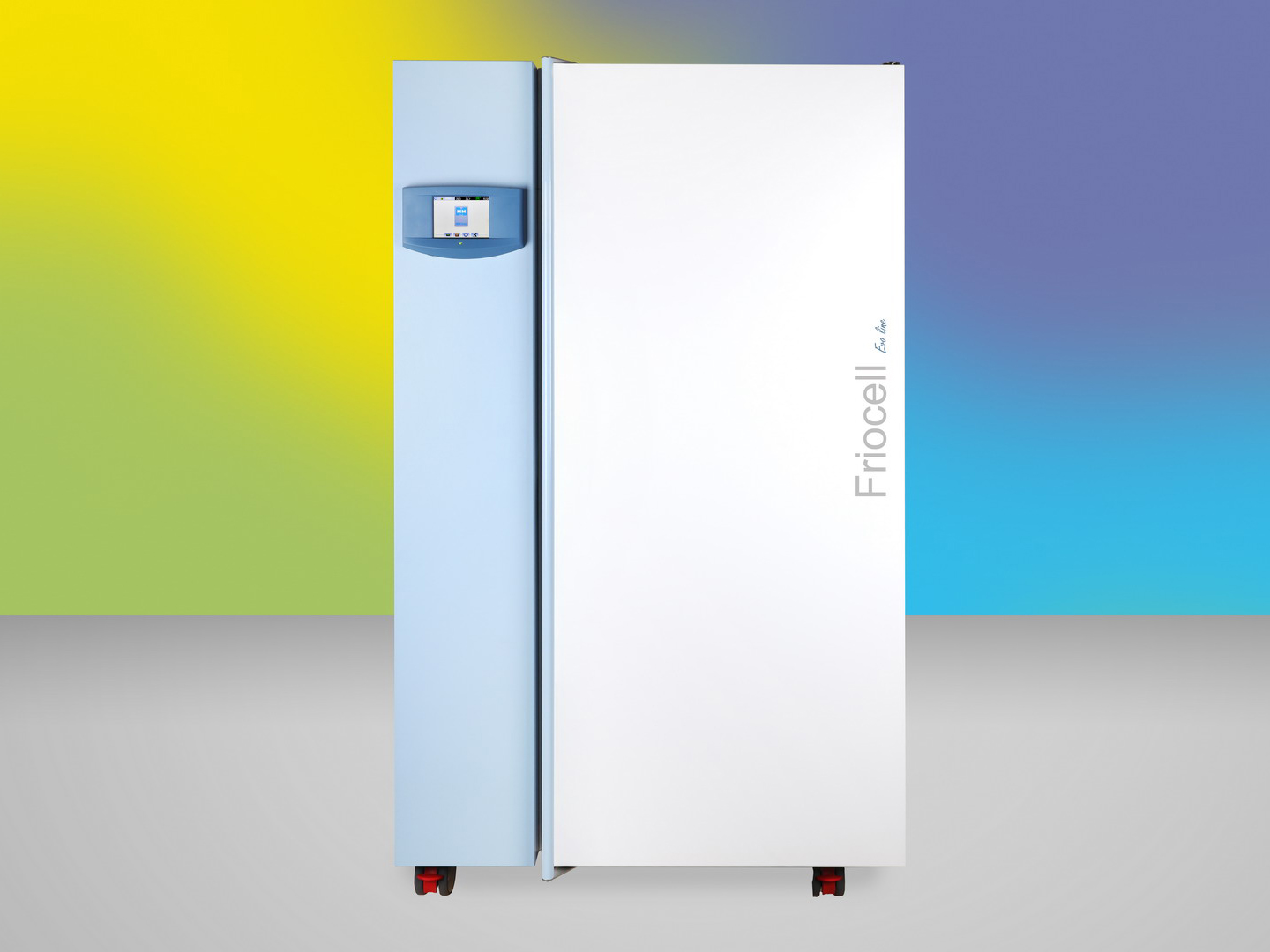

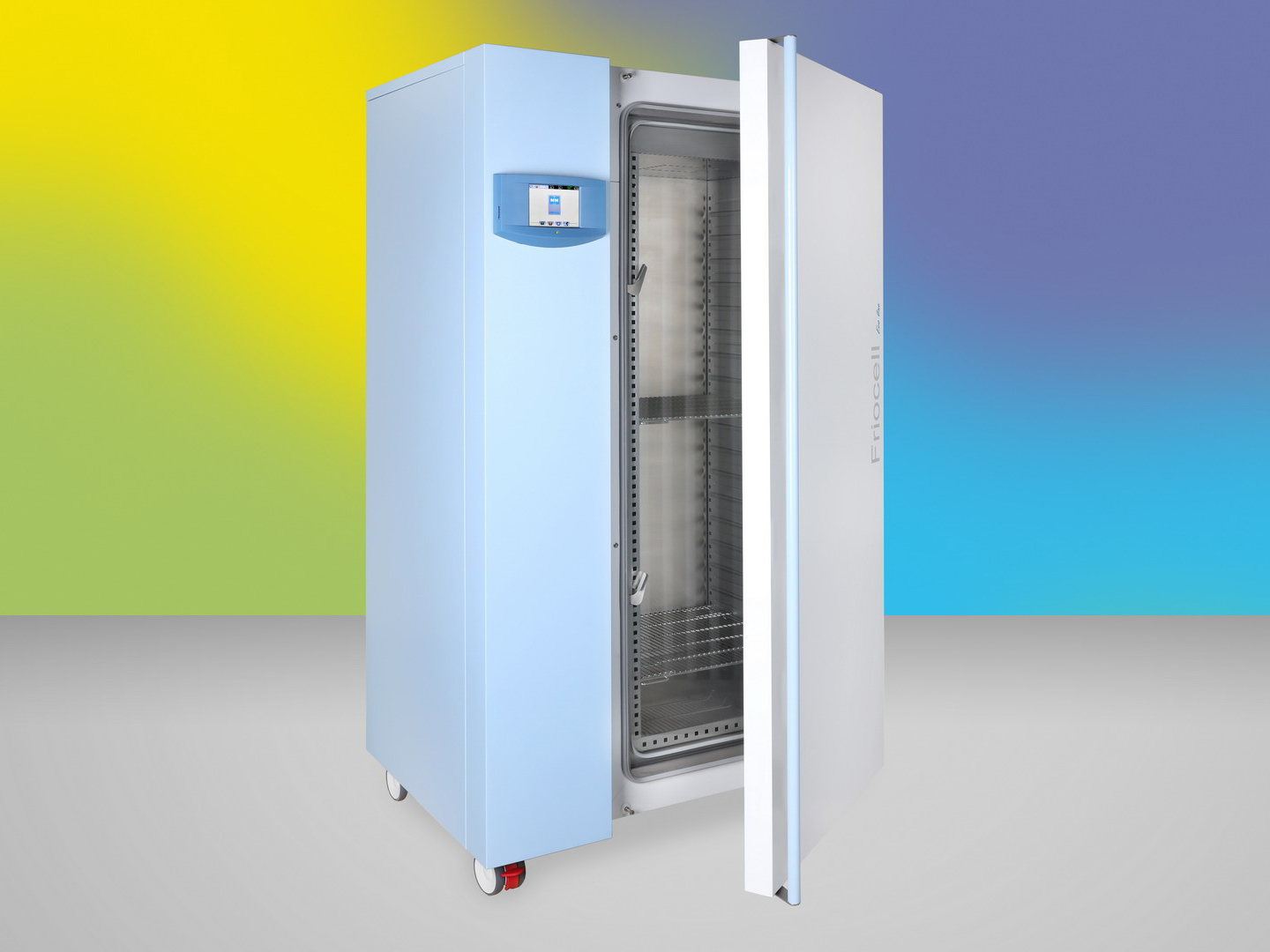

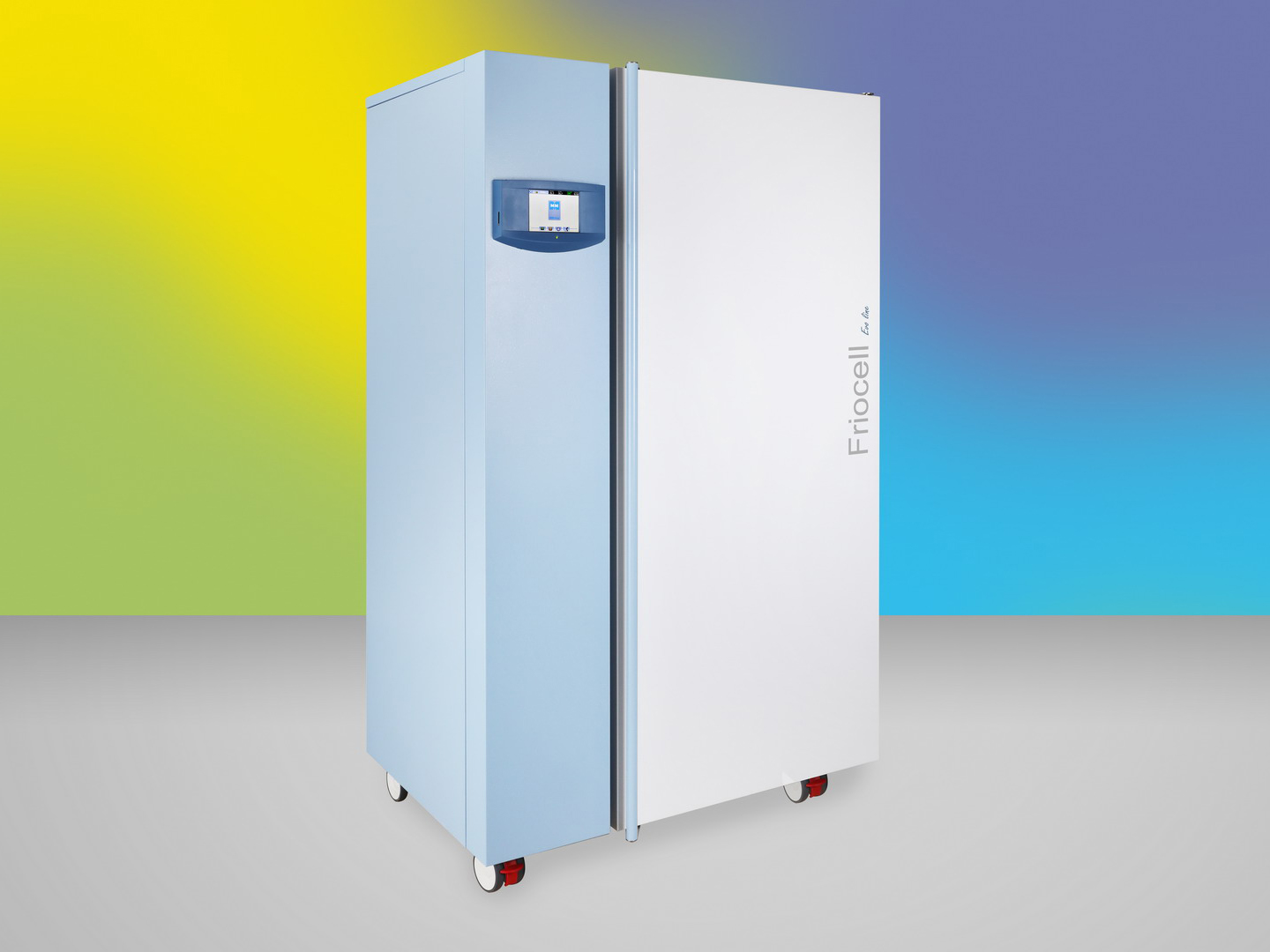

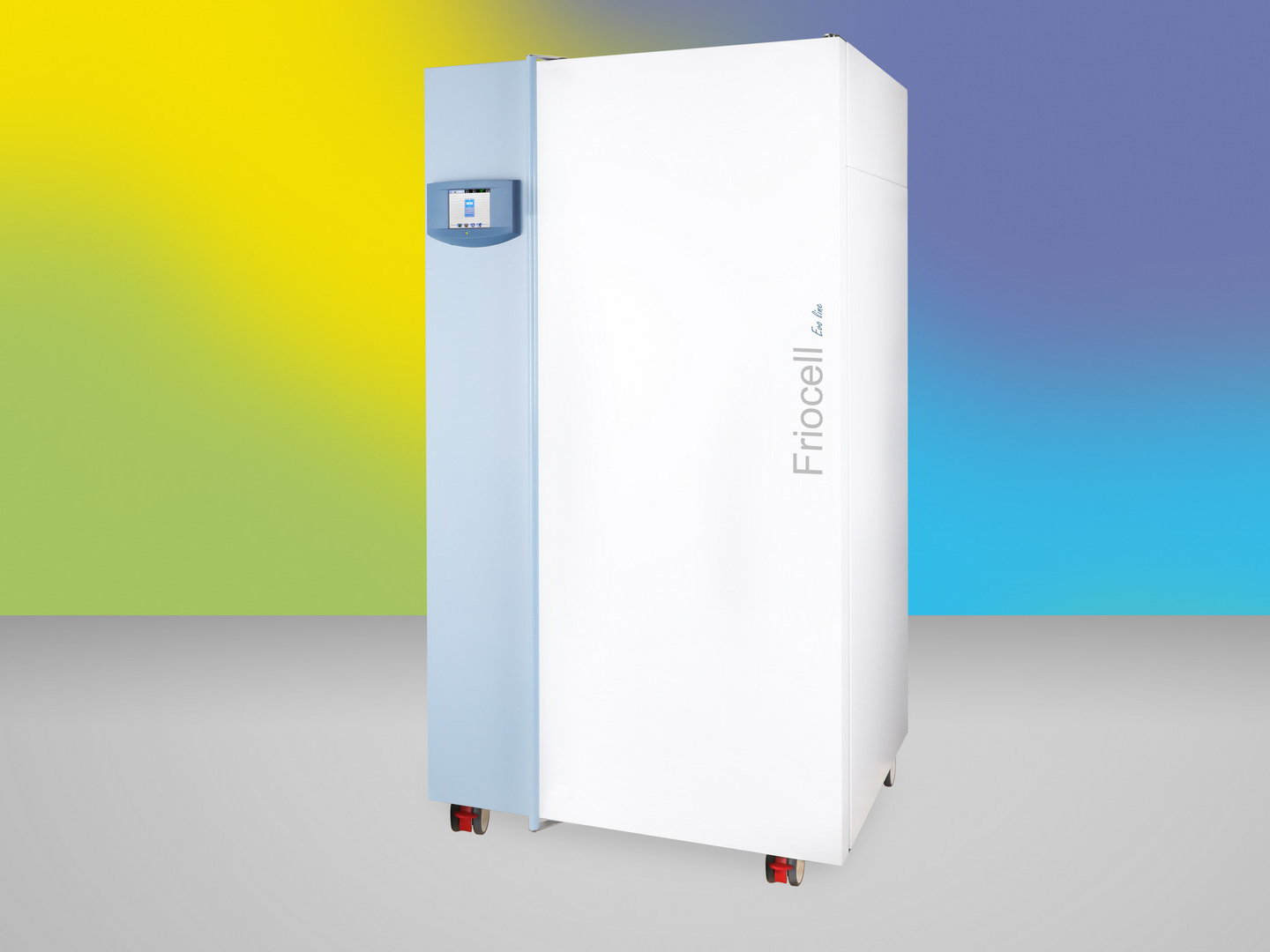

• precise, adaptable to nature, economical - laboratory incubator
• chamber volume 404 litres
• temperature range: 0°C to 100°C
• patented cooling system (ecological working medium R134a) offers accurate and fast simulation of natural processes and reduces the risk of evaporation of samples, the devices may be completed with various types of inner chamber lighting
• high operation comfort, precise temperature control and the possibility of achieving extremely short times of temperature changes as well as short times of temperature equalization in the chamber after the door opening; standard equipment also includes inner glass door and possibility of fan speed regulation
• suitable for demanding and accurate specimen culture testing and processes
• wide selection of optional equipment and accessories
• output for connecting a printer or PC
• possibility of validation (IQ, OQ)

Inner dimensions - Chamber, stainless steel

volume	404 l
depth	530 mm
width	540 mm
height	1415 mm

Volume of chamber space

530 l (aprox.)

Trays, stainless steel *)

Min. distance between trays	70 mm
number	19/2 max./usual
Storage area (w × d)	520 x 485 mm

Number of outer metal doors

number

1 pcs

Number of inner glass doors

number

1 pcs

Admissible weight of trays

together inside the oven	100 kg
per 1 tray	30 kg

Electricity data

Max. power	1700 W
IP 20
mains 50/60Hz	230 V

Temperature data

Cooling/down time from 22 °C to 10 °C	19 min
Heating/up time to 37 °C from the ambient temperature	13 min
Working temperature from 0,0 to	100 °C
Temperature accuracy - in time	0,3 ± °C
Temperature accuracy - in space at 10 °C	1 ± °C

Recovery time after 30 s door open

at 37 °C	2 min
at 50 °C	4 min

Heat emission

at 37 °C

123 W

Outer dimensions, incl. door and handle, Feet (N) or Rollers (K)

depth	885 mm
width	1100 mm
height	1890 (K) mm

Weight

brut	390 kg
nett	230 kg

*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber.Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.

Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
