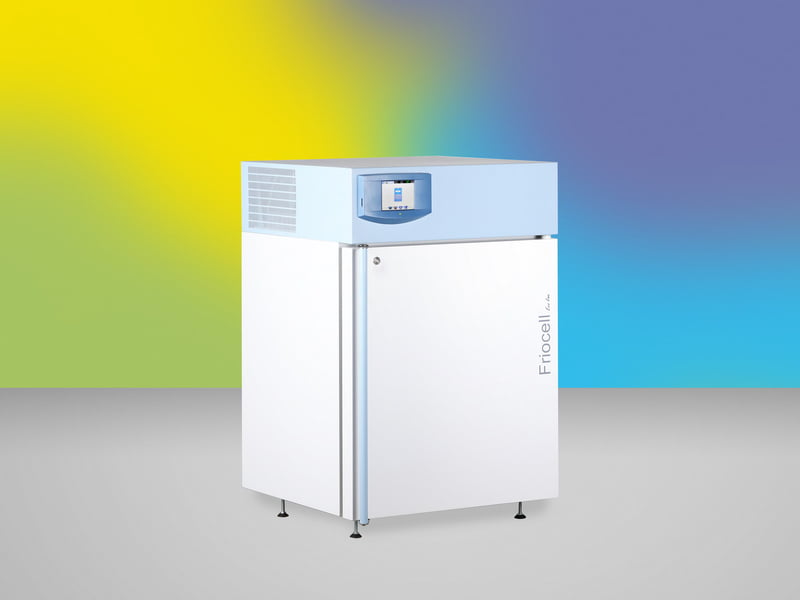

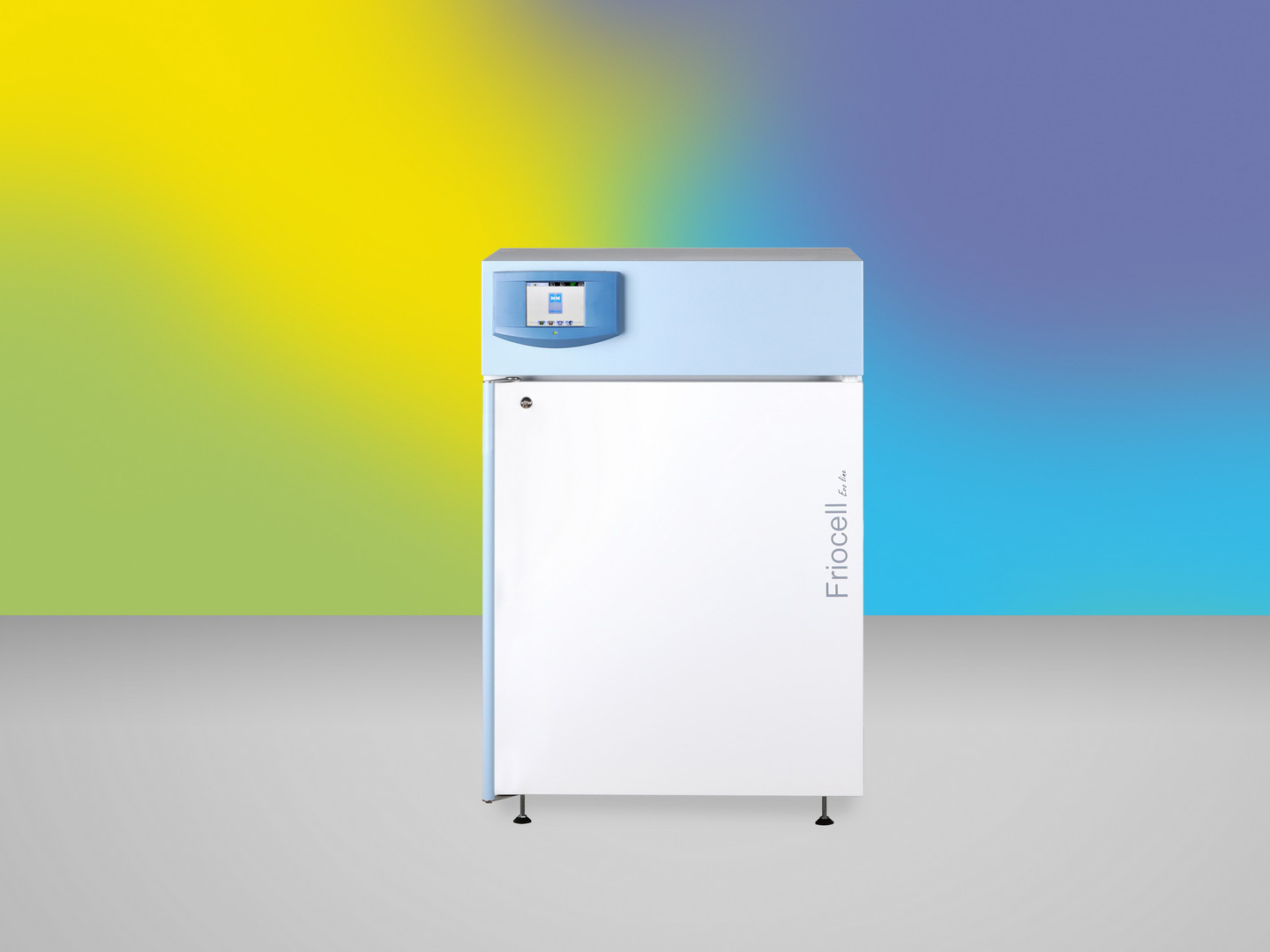

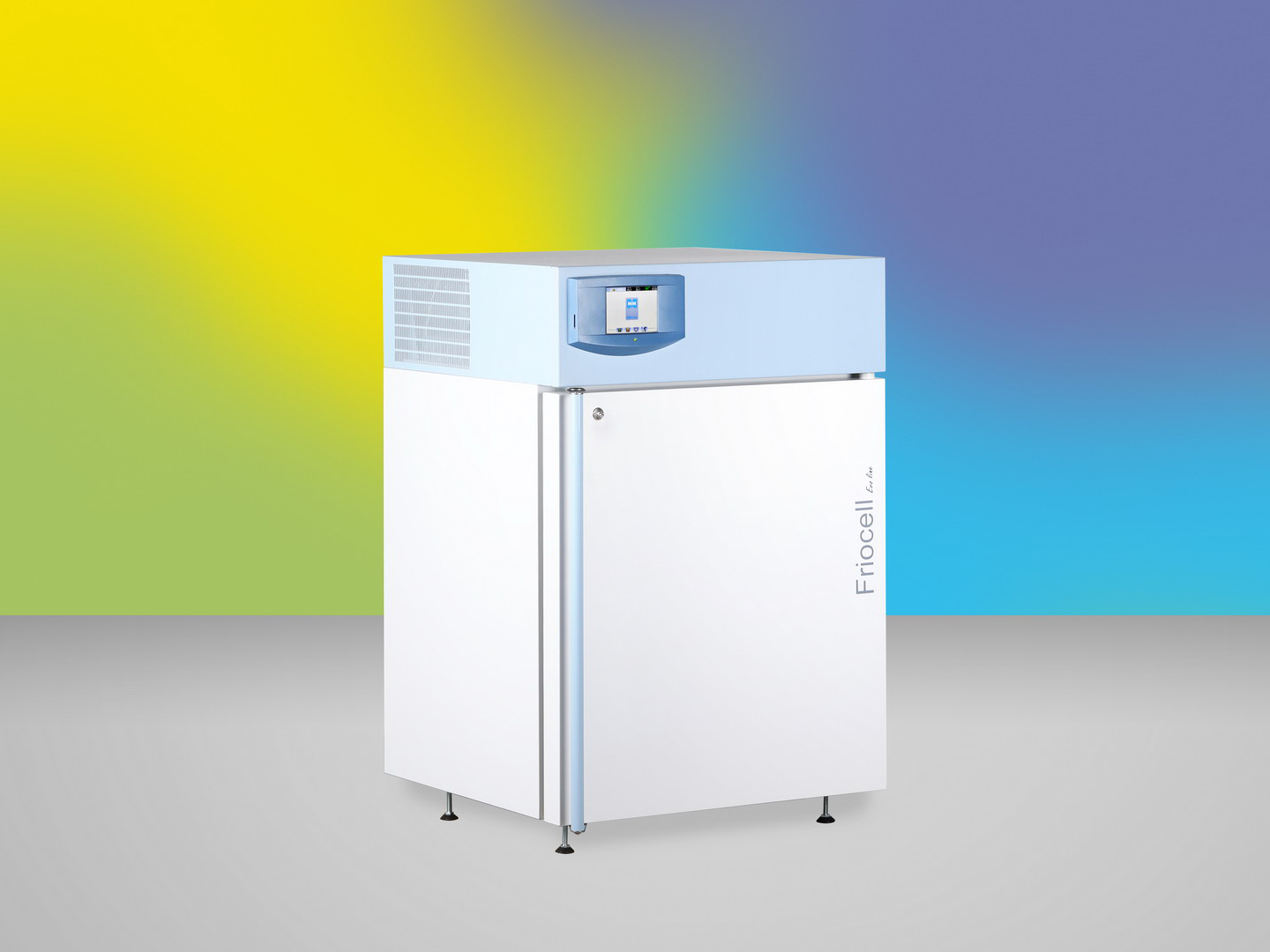

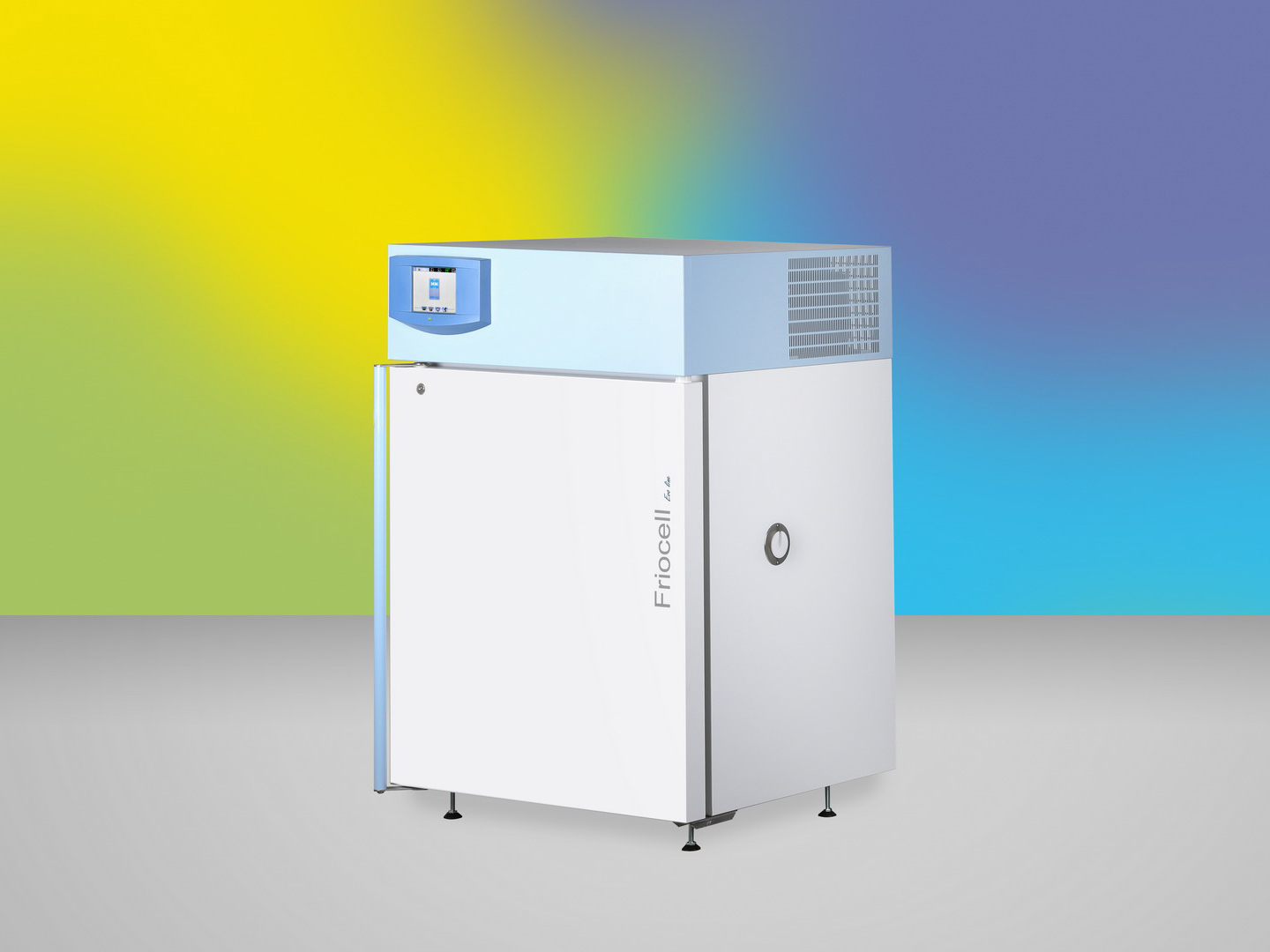

• precise, adaptable to nature, economical - laboratory incubator
• chamber volume 111 litres
• temperature range: 0°C to 100°C
• patented cooling system (ecological working medium R134a) offers accurate and fast simulation of natural processes and reduces the risk of evaporation of samples, the devices may be completed with various types of inner chamber lighting
• high operation comfort, precise temperature control and the possibility of achieving extremely short times of temperature changes as well as short times of temperature equalization in the chamber after the door opening; standard equipment also includes inner glass door and possibility of fan speed regulation
• suitable for demanding and accurate specimen culture testing and processes
• wide selection of optional equipment and accessories
• output for connecting a printer or PC
• possibility of validation (IQ, OQ)

Inner dimensions - Chamber, stainless steel

volume	111 l
depth	380 mm
width	540 mm
height	535 mm

Volume of chamber space

167 l (aprox.)

Trays, stainless steel *)

Min. distance between trays	70 mm
number	7/2 max./usual
Storage area (w × d)	520 x 335 mm

Number of outer metal doors

number

1 pcs

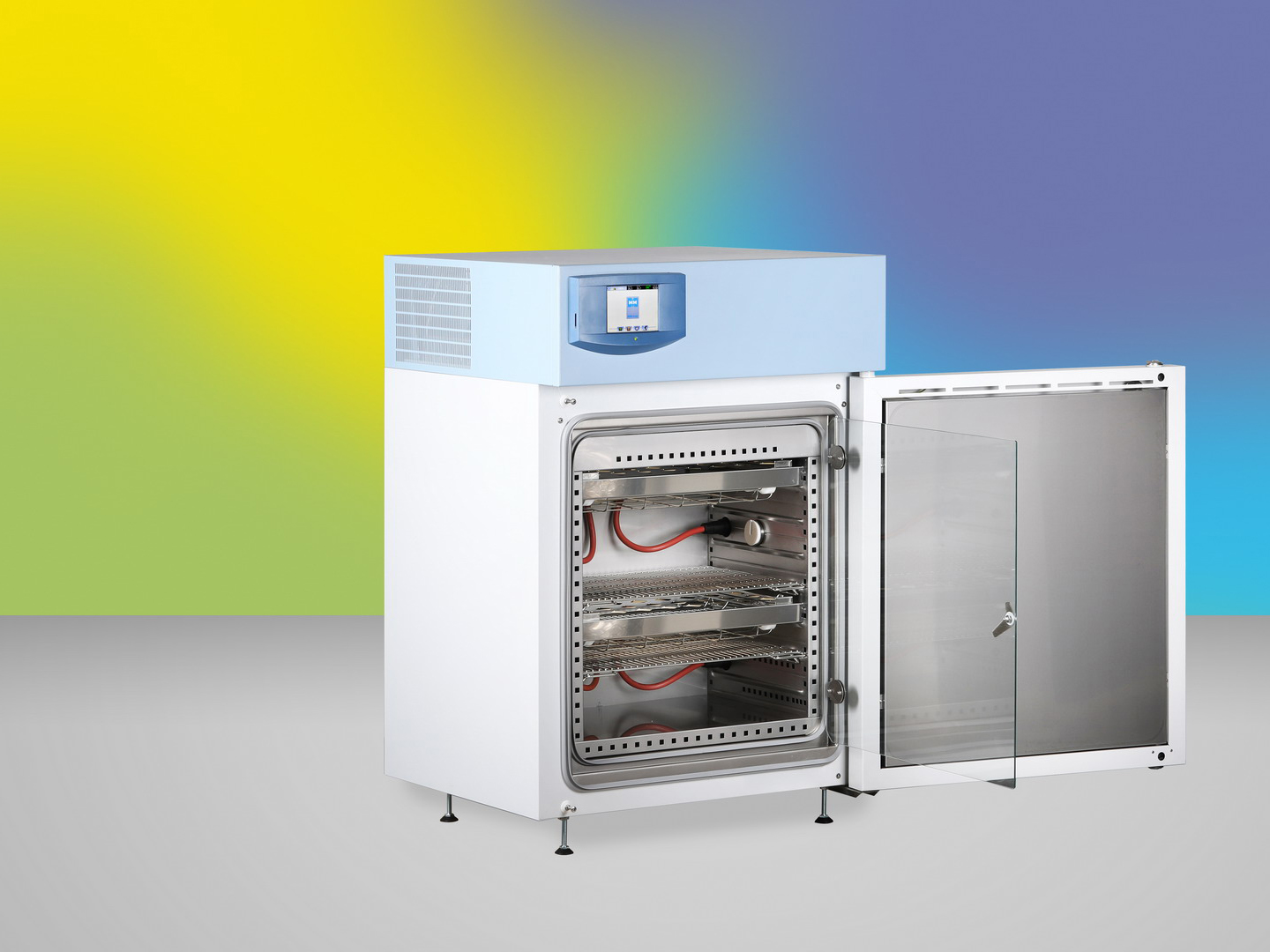

Number of inner glass doors

number

1 pcs

Admissible weight of trays

together inside the oven	50 kg
per 1 tray	20 kg

Electricity data

Max. power	1000 W
IP 20
mains 50/60Hz	230 V

Temperature data

Cooling/down time from 22 °C to 10 °C	21 min
Heating/up time to 37 °C from the ambient temperature	11 min
Working temperature from 0,0 to	100 °C
Temperature accuracy - in time	0,2 ± °C
Temperature accuracy - in space at 10 °C	0,5 ± °C

Recovery time after 30 s door open

at 37 °C	5 min
at 50 °C	6 min

Heat emission

at 37 °C

70 W

Outer dimensions, incl. door and handle, Feet (N) or Rollers (K)

depth	755 mm
width	780 mm
height	1187 (N) mm

Weight

brut	220 kg
nett	110 kg

*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber.Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.

Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
