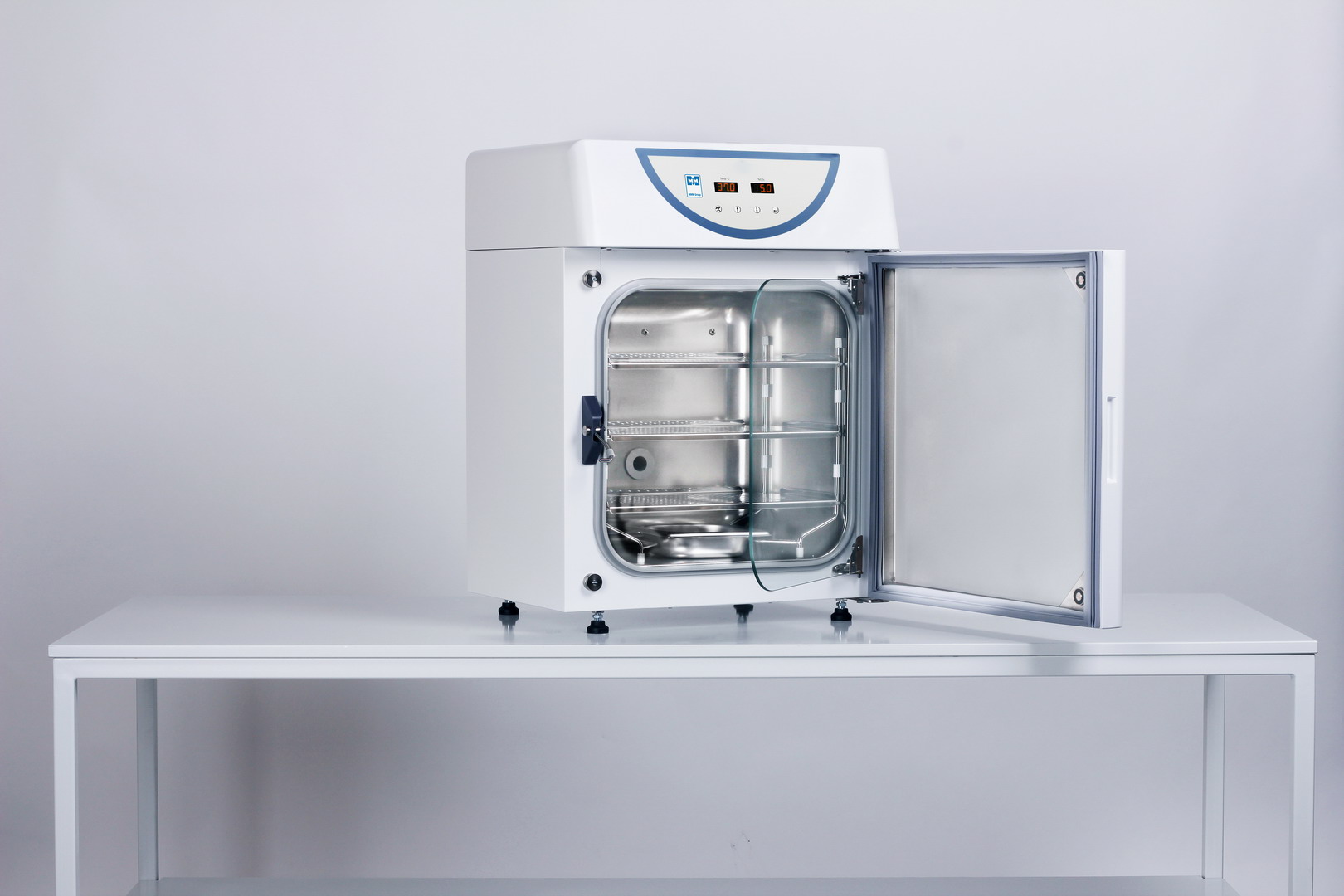

• laboratory incubator - always creates the right atmosphere

• chamber volume 50 litres

• temperature range: from 5°C above ambient temperature to 60°C

• uncontrolled relative humidity: up to 90 ± 5% RH at 37°C

• CO2 concentration: 0.2% to 20%

• CO2 sensor: no-deviation infrared sensor (IR)

• wide selection of optional equipment and accessories

• output for connecting a printer or PC

• possibility of validation (IQ, OQ)

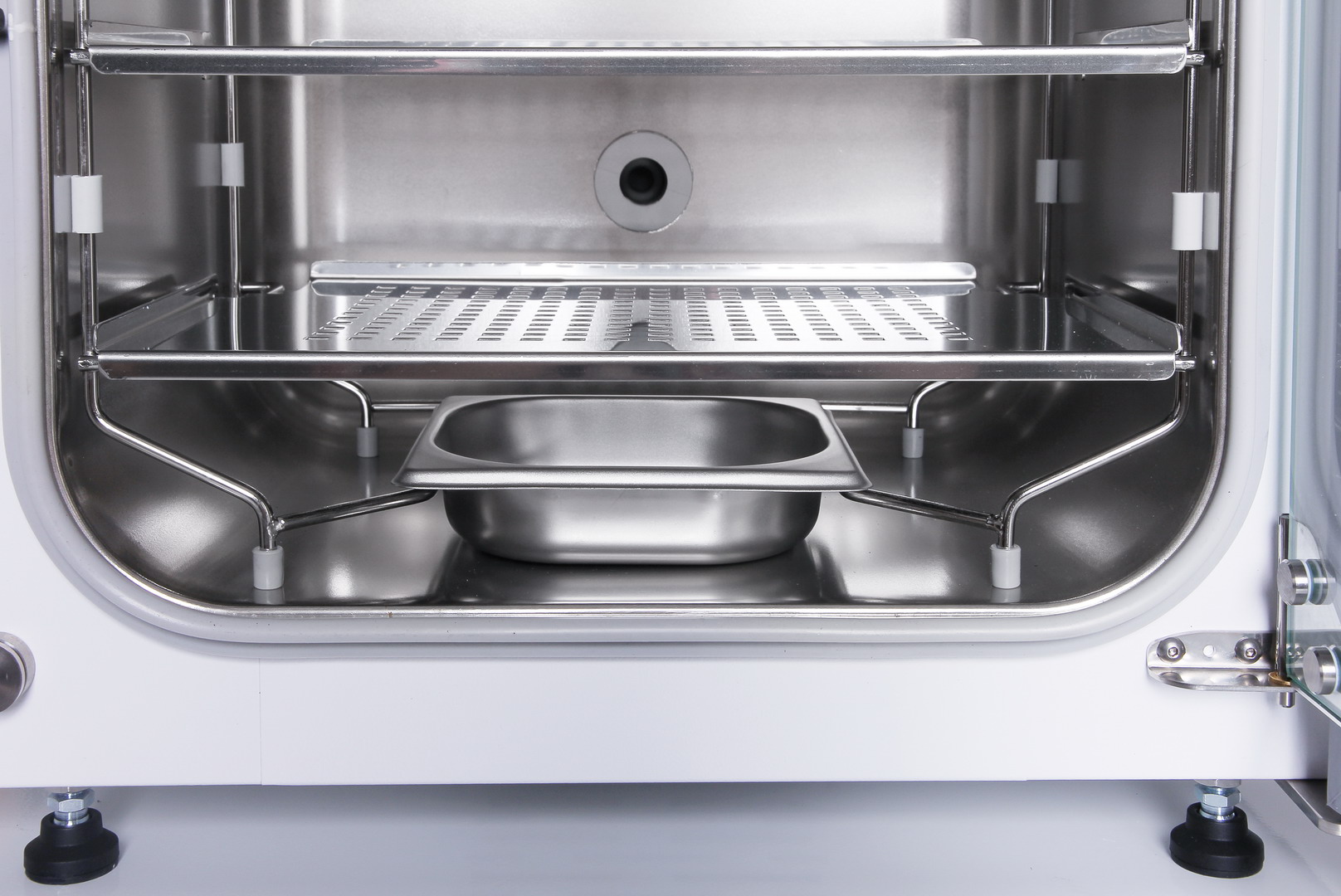

Shelves (trays)*

standard equipment	3 pcs
Number	3 max. pcs

External dimensions

depth	460 mm
width	534 mm
height	717 mm

Weight

brut	50 kg
nett	38 kg

Temperature data

60 °C

Temperature deviations at 37 °C max.

in time	± 0,1 °C
in time	± 0,1 °C
in space	± 0,25 °C

CO2 Control

0,2 - 20 % CO2

Control accuracy

in space	± 0,25 %
measurement	± 0,1 %
measurement	± 0,1 %

Recovery rate

<=0,8 % / min

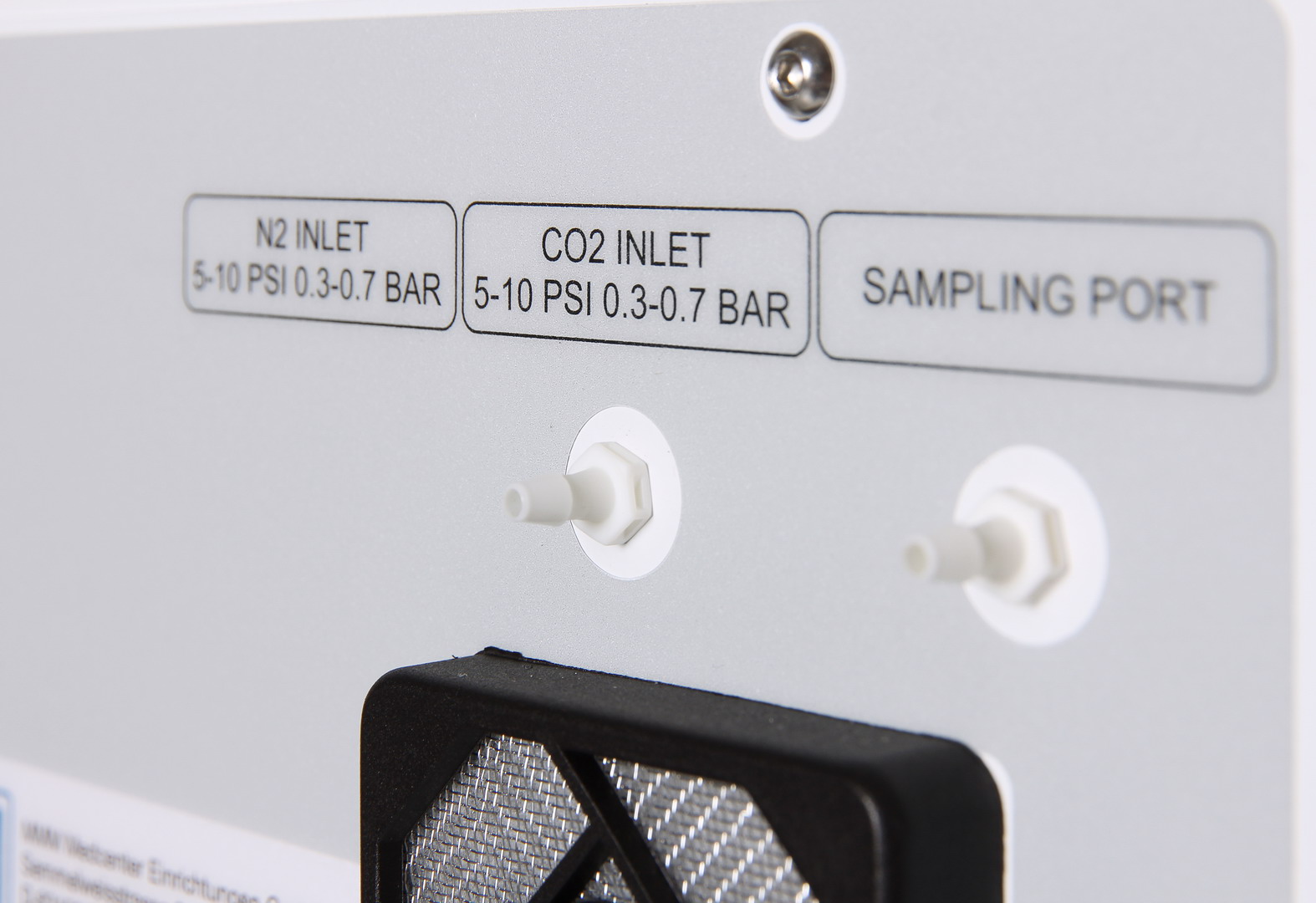

Required CO2 pressure

0,3-0,7 bar / psi

Relative humidity

humidity dish volume

0,5 l

Humidity level at 37 °C, 5 °C CO2

standard

95 % RH

Electric parameters

max. output	0,35 kW
Voltage (50/60 Hz)	230 V
consumption at 37 °C	7,2 W

Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.
Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
