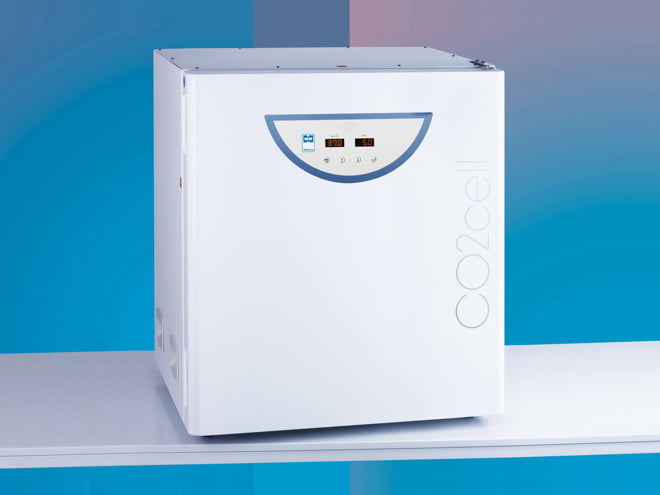

• laboratory incubator - always creates the right atmosphere
• chamber volume 190 litres
• temperature range: from 5°C above ambient temperature to 60°C
• uncontrolled relative humidity: up to 90 ± 5% RH at 37°C
• CO2 concentration: 0.2% to 20%
• CO2 sensor: no-deviation infrared sensor (IR)
• wide selection of optional equipment and accessories
• output for connecting a printer or PC
• possibility of validation (IQ, OQ)

Inner dimensions

• volume	190 l
  depth	440 mm
  width	632 mm
  height	686 mm

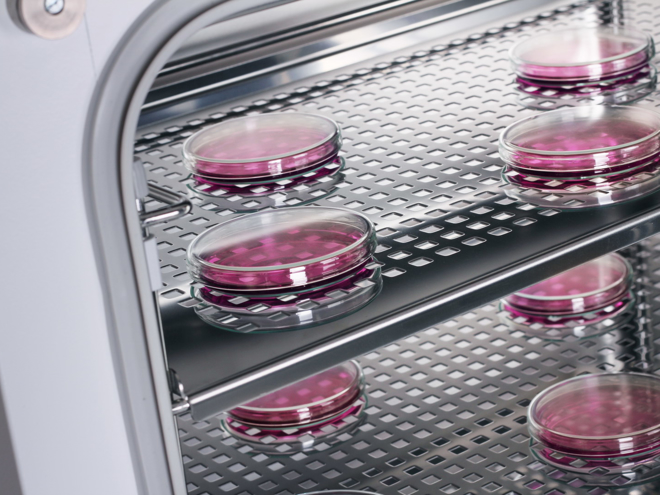

Shelves (trays)*

• standard equipment	4 pcs
  Number	8 max. pcs

External dimensios

• depth	734 mm
  width	765 mm
  height	862 mm

Weight

• brut	109 kg
  nett	94,5 kg

Temperature data

• 60 °C

Temperature deviations at 37 °C max.

• in time	± 0,1 °C
  in time	± 0,1 °C
  in space	± 0,2 °C

CO2 Control

• 0,2 - 20 % CO2

Control accurancy

• in space	± 0,2 %
  measurement	± 0,1 %
  measurement	± 0,1 %

Recovery rate

• <=0,8 % / min

Required CO2pressure

• 0,3-0,7 bar / psi

Relative humidity

• humidity dish volume

  1,5 l

Humidity level at 37 °C, 5 °C CO2

• standard

  95 % RH

Electric parameters

• max. output	0,38 kW
  Voltage (50/60 Hz)	230 V
  consumption at 37 °C	5,8 W

  Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.

  Changes in the design and make reserved.
  The values may differ depending on specific charge and media parameters.
